Inconel Flanges

What are Inconel Flanges?

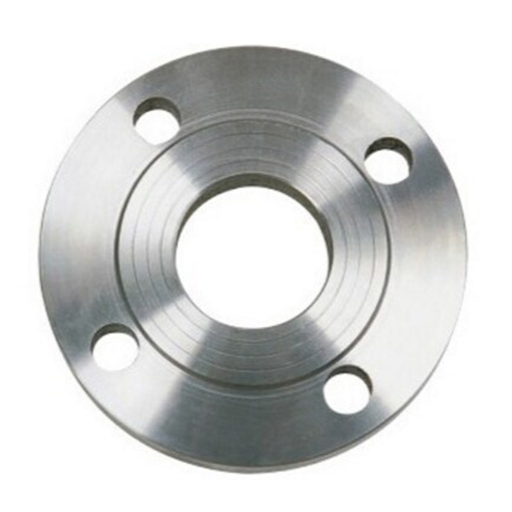

Inconel flanges are a special category of pipe fitting that forms a secure non-leak connection in all sorts of piping and equipment systems. These flanges are made of Inconel, a group of high performance, nickel chromium alloy that has a high strength with high resistance to corrosion. This is what makes them a perfect fit when it comes to applications of high temperatures, extreme pressures and harsh and corrosive environments. Our flanges are made with the rigorous ASTM B564 specification which ensures that it meets the best standards of forged and plate flanges in the industry.

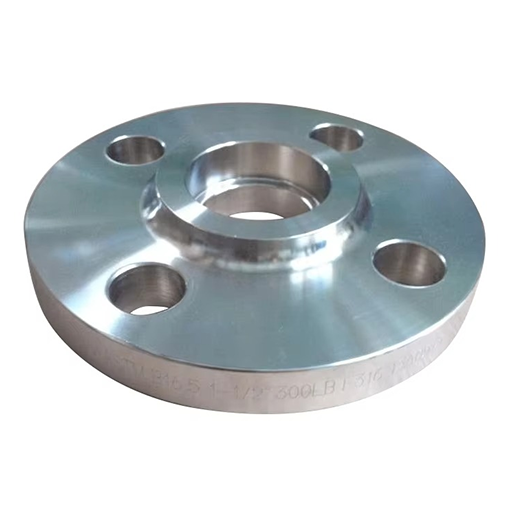

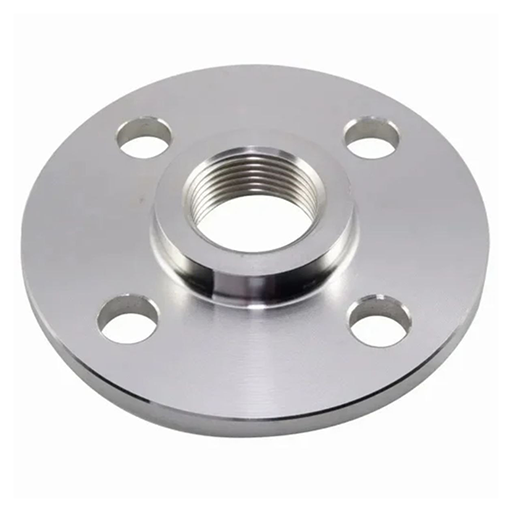

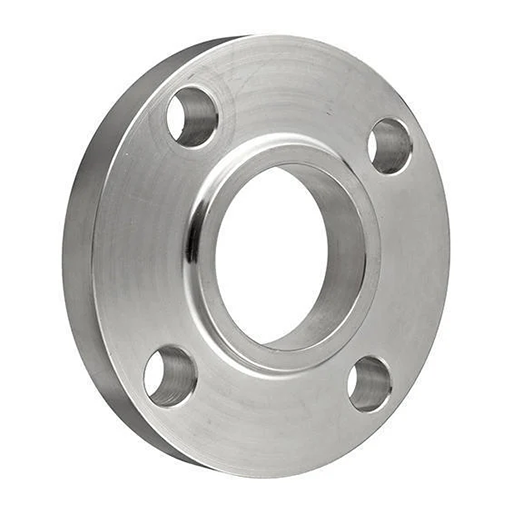

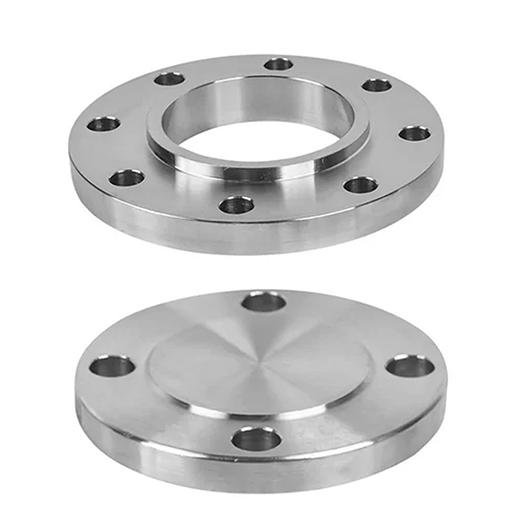

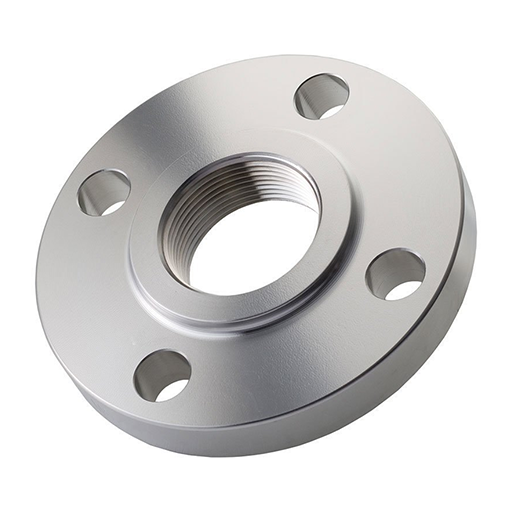

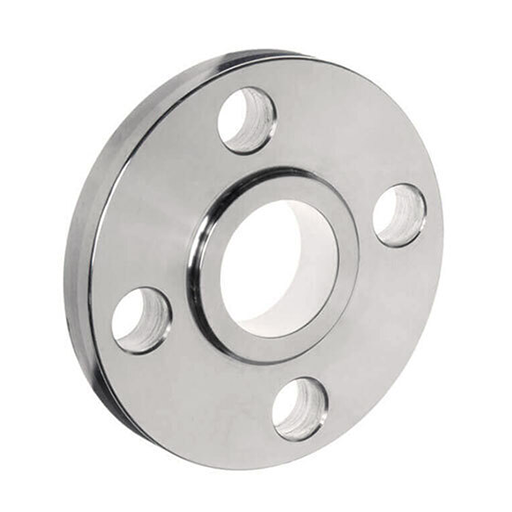

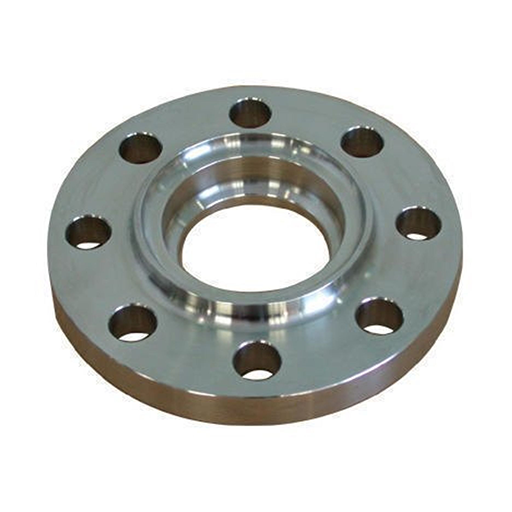

Explore Inconel Flanges Grades

We manufacture and supply flanges across all primary Inconel grades. Select your grade below for full technical specifications, chemical composition, mechanical properties and pricing:

Inconel ASTM B564 Flanges Specifications

Specifications	ASTM B564 / ASME SB564
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size	1/2″NB TO 60″NB
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grades	Inconel 600, 601, 625, 718, 783, 690, x750 Flanges

Inconel Flange Standards / Types And Pressure Class

Standard	Flange Types	Pressure Class
ASME/ANSI B 16.5	Welding Neck, Slip on, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, Ring Type Joint	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Welding Neck, Blind [Series A & B]	75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36	Welding Neck, Slip on, Threaded	300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1	Welding Neck, Hubbed Slip on, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Loose Plate With Weld Neck, Blank	PN 2.5 TO PN 40
BS 4504 [PART 1]	Welding Neck, Hubbed Slip-On Hubbed Threaded, Plate, Loose Plate With Weld On Plate Collar, Blank	PN 2.5 TO PN 400
BS 1560 BOSS	Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped	150, 300, 400, 600, 900, 1500, 2500
BS 10	Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind	TABLE D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637, 2638, 2673	PN 6 TO PN 100

ASME SB564 Inconel Flanges Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 600	2.4816	N06600	NCF 600	NA 13	МНЖМц 28-2,5-1,5	NC15FE11	NiCr15Fe
Inconel 601	2.4851	N06601	NCF 601	NA 49	XH60BT	NC23FeA	NiCr23Fe
Inconel 625	2.4856	N06625	NCF 625	NA 21	XН75МБТЮ	NC22DNB4	NiCr22Mo9Nb
Inconel 718	2.4668	N07718	---	---	---	---	---

Chemical Composition of Grade Inconel Pipe Flanges

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 600	0.15 max	1.00 max	0.50 max	0.015 max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00
Inconel 601	0.10 max	1.0 max	0.5 max	0.015 max	1.0 max	Balance	58.0 – 63.0	21.0 – 25.0
Inconel 625	0.10 max	0.50 max	0.50 max	0.015 max	-	5.0 max	58.0 min	20.0 - 23.0
Inconel 718	0.08 max	0.35 max	0.35 max	0.015 max	0.30 max	-	50.00 - 55.00	17.00 - 21.00

Mechanical Properties of ASTM B564 Inconel Plate Flanges

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2% Offset)	Elongation
Inconel 600	8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000, MPa – 655	Psi – 45,000, MPa – 310	40 %
Inconel 601	8.1 g/cm3	1411 °C (2571 °F)	Psi – 80,000, MPa – 550	Psi – 30,000, MPa – 205	30 %
Inconel 625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000, MPa – 930	Psi – 75,000, MPa – 517	42.5 %
Inconel 718	8.2 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000, MPa – 930	Psi – 75,000, MPa – 482	45 %

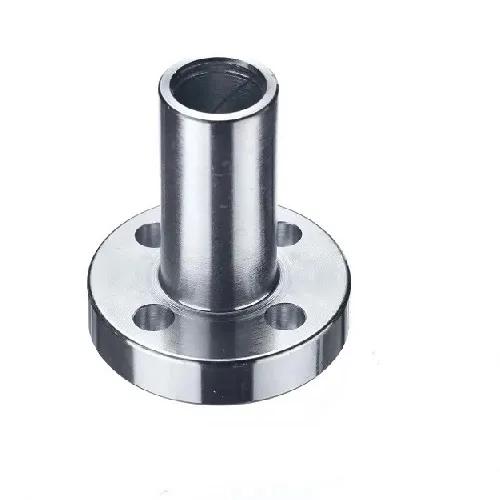

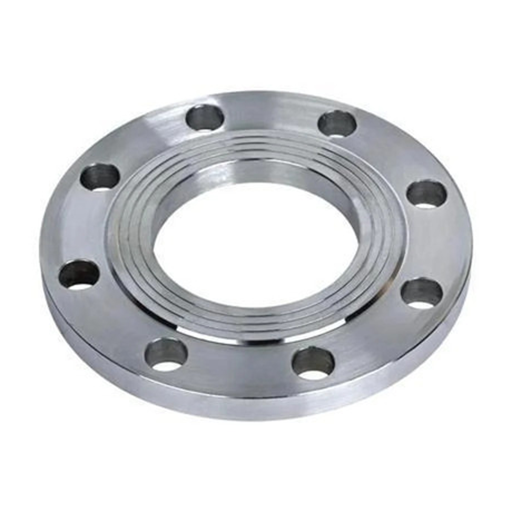

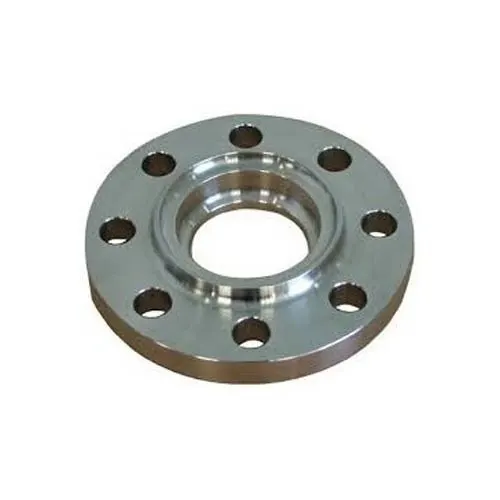

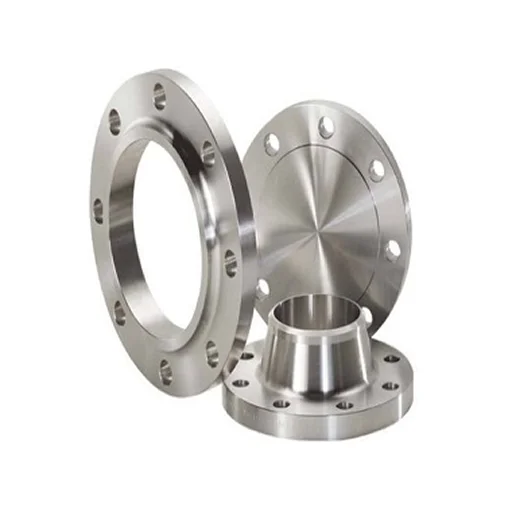

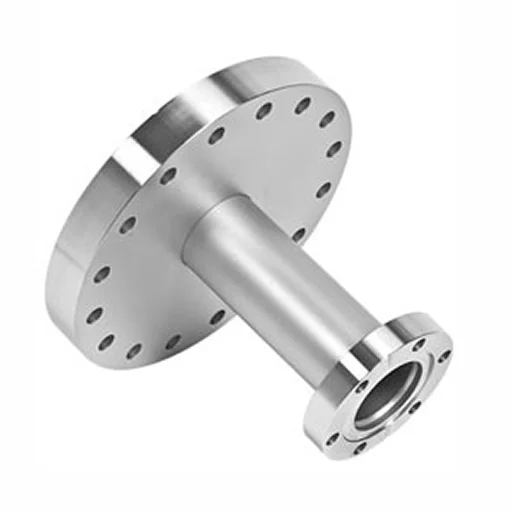

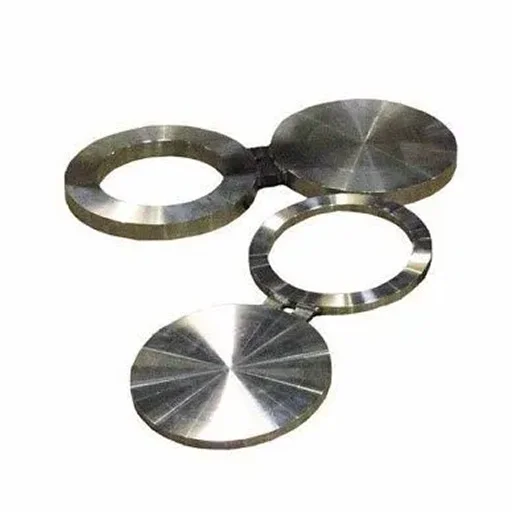

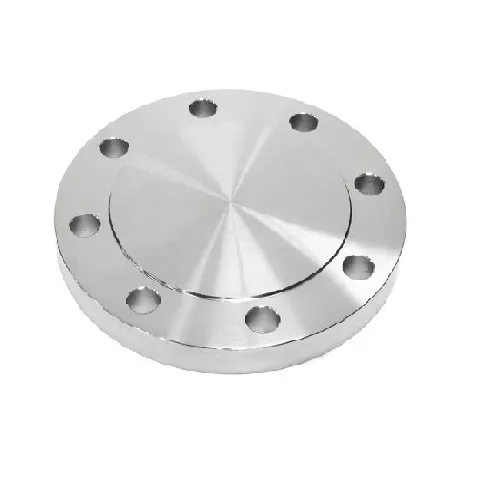

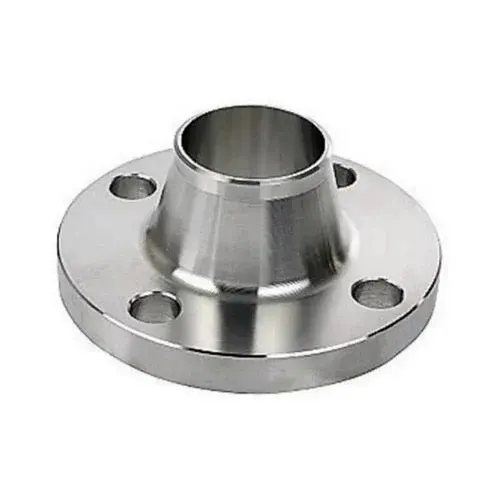

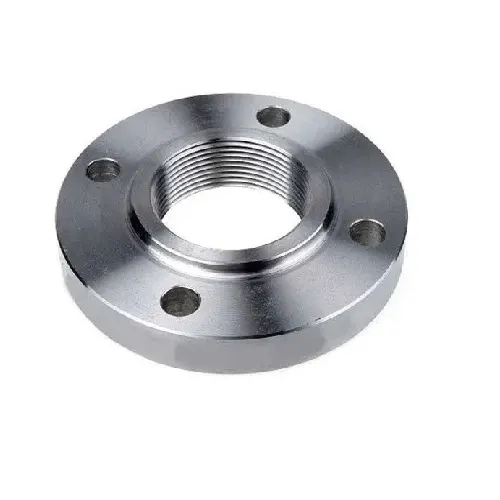

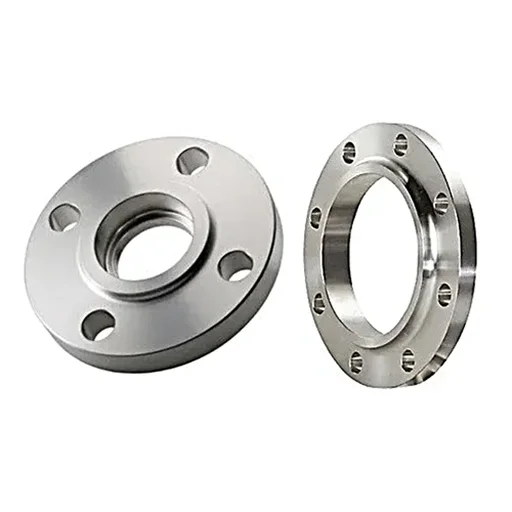

Types Of Inconel Flanges

Applications of Inconel Flanges

• Oil and Gas Pipeline: Essential for high-pressure, high-temperature applications.
• Chemical Industry: Used to handle corrosive chemicals and maintain sealed systems.
• Plumbing: For durable and reliable connections in commercial and industrial plumbing.
• Heating: Resists high temperatures in heating systems and furnaces.
• Water Supply Systems: Ensures long-lasting, corrosion-resistant connections.
• Power Plant: Crucial for critical piping in power generation facilities.
• Paper & Pulp Industry: Withstands corrosive chemical slurries and harsh environments.
• General Purpose Applications: Versatile for a wide range of industrial uses.
• Fabrication Industry: Used in manufacturing and fabrication of specialized equipment.
• Food Processing Industry: Ideal for hygienic, contamination-free connections.
• Structural Pipe: Provides strong and durable connections in structural piping. We supply all inconel flanges grades for these critical applications.

Why Choose Solitaire Overseas for Inconel Flanges?

• As a premier inconel flanges manufacturer, we ensure every flange meets international standards like ASTM B564 and ASME SB564 through rigorous testing, including PMI and ultrasonic checks.
• We specialize in various Inconel grades (600, 625, 718) and offer expert technical support for demanding applications.
• Our efficient processes and network allow us to offer the best Inconel flanges price without compromising on quality.
• We maintain a large inventory to meet immediate needs and can also manufacture custom flanges to your specific drawings.
• As a trusted exporter, we guarantee timely delivery and secure packaging for clients worldwide.
