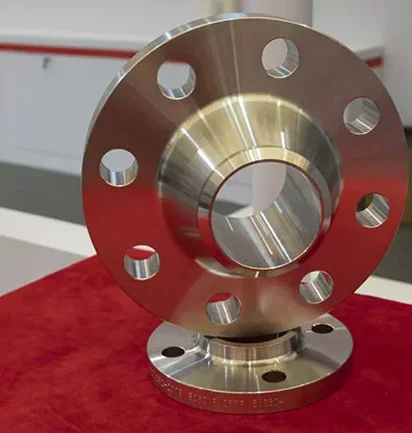

Incoloy 330 Flanges Supplier, Manufacturer & Exporter

Solitaire Overseas is licensed to manufacture, supply and export Incoloy 330 Flanges (UNS N08330 / WNR 1.4886) that is certificated to ASTM B564 and ASME SB564. Our Incoloy 330 Pipe Flanges and Alloy 330 Flanges are made of high-nickel, high chromium austenitic iron-Nickel-chromium alloy that is silicon addition, which significantly enhances the resistance to high-temperature oxidation, carburization and nitridation. UNS N08330 is a non-solvency alloy non-hardenable solid-solution alloy, which is highly microstructurally stable even when subjected to cyclic heating and cooling. Annealed FF, RTJ. 1-2 inch to 48 inch size and all standard pressure class up to 150# to 2500 pounds, in ANSI/ASME B16.5, Series A and B, B16.47, in DIN, EN-1092, and JIS. We offer complete MTC, certification ISO 9001: 2015, and third-party inspection. Also explore our Incoloy Pipe Fittings for complete piping solutions.

Why Choose Solitaire Overseas for Incoloy 330 Pipe Flanges?

ASTM B564 / ASME SB564 certified with full material traceability
ISO 9001:2015 quality management with in-house mechanical and chemical testing
Available from ½" to 48" in all pressure classes: 150# to 2500#
Multi-standard compliance: ANSI/ASME B16.5, B16.47, DIN, EN-1092, JIS
Suitable for max operating temperature of 1150°C (2100°F) in oxidizing atmospheres
Third-party inspection by TUV, SGS, Bureau Veritas, Lloyd's Register on request
Custom dimensions, special facings, and heat treatment available
Competitive Incoloy 330 Flanges price with exports to 45+ countries

Contact us to buy Inconel Products

Check price of Inconel Flanges & Inconel 800 Flanges in India

Weight Calculator

Incoloy 330 Flanges Size & Specification

Parameter	Details
Product Name	Incoloy 330 Flanges
Specification	ASTM / ASME SB 564 / 160 / 472
Inconel UNS Grade	Inconel 600 (UNS N06600), Inconel 601 (UNS N06601), Inconel 625 (UNS N06625), Inconel 800 (UNS N08800)
Flanges Standard	ANSI, ASME, BS, DIN, EN
Size	½" to 36"
Dimensions	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS 4504, BS 10, EN 1092, DIN
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64

Dimension Chart – 330 Incoloy Flanges

AS 2129 Flange

Class	Bolt Circle Dia	Bolt Size	Diameter	No. of Bolts	Bolt Hole Dia
Table C	67	13	95	4	14
Table D	67	13	95	4	14
Table E	67	13	95	4	14
Table F	67	13	95	4	14
Table H	83	16	114	4	17
Table J	83	16	114	4	17

ISO 7005 (DIN) Flange

PN Rating	Bolt Circle	Bolt Size	Diameter	No. of Bolts	Bolt Hole Dia
PN6	55	M10	80	4	11
PN10	65	M12	95	4	14
PN16	65	M12	95	4	14
PN20	60.5	M14	90	4	16
PN25	65	M12	95	4	14
PN40	65	M12	95	4	14

ANSI B16.5 Flange

Class	Bolt Circle	Bolt Size	Diameter	No. of Bolts	Bolt Hole Dia
150	60	13	89	4	16
300	67	13	95	4	16
600	67	13	95	4	16
900	83	19	121	4	22
1500	83	19	121	4	22

Pressure Rating Chart – Incoloy 330 Flanges

Standard	Pressure Rating
ANSI	150, 300, 600, 900, 1500 LBS
DIN	PN6, PN10, PN16, PN25, PN40
UNI / EN / DIN	6, 10, 16, 25, 40 Bar
JIS	10K, 16K, 20K, 30K, 40K

330 Incoloy Pipe Flanges Schedule Chart

Nom Pipe Size	OD	Sch 30	STD	Sch 10	Ext Hvy	Sch 40	Sch 80	Sch 160	Sch 120
½	0.84	–	0.109	0.083	0.147	0.109	0.147	0.188	–
1¼	1.66	–	0.14	0.109	0.191	0.14	0.191	0.25	–
2½	2.875	–	0.203	0.12	0.276	0.203	0.276	0.375	–
3	3.5	–	0.216	0.12	0.3	0.216	0.3	0.438	–
4	4.5	–	0.237	0.12	0.337	0.237	0.337	0.531	0.438
8	8.625	0.277	0.322	0.148	0.5	0.322	0.5	0.906	0.719
10	10.75	0.307	0.365	0.165	0.5	0.365	0.594	1.125	0.844
16	16	0.375	0.375	0.25	0.5	0.5	0.844	1.594	1.219
30	30	0.625	0.375	0.312	0.5	–	–	–	–
36	36	0.625	0.375	0.312	0.5	0.75	–	–	–

Material Equivalent of Incoloy UNS N08330 Pipe Flange

Standard	UNS	Werkstoff Nr.
Incoloy 330	N08330	1.4886

Types of Incoloy 330 Flanges

Incoloy 330 Threaded Flanges
Incoloy 330 Weld Neck Flanges
Incoloy 330 Slip On Flanges
Incoloy 330 Socket Weld Flanges
Incoloy 330 Blind Flanges
Incoloy 330 Lap Joint Flanges
Incoloy 330 Plate Flanges
Incoloy 330 Reducing Flanges
Incoloy 330 Orifice Flanges
Incoloy 330 Nipo Flanges
Incoloy 330 Weldo Flanges
Incoloy 330 Long Weld Neck Flanges
Incoloy 330 SWRF Flanges
Incoloy 330 SORF Flanges
Incoloy 330 Flat Flanges
Incoloy 330 Loose Flanges

Incoloy 330 Square Flanges
Incoloy 330 Expander Flanges
Incoloy 330 Ring Type Joint (RTJ) Flanges
Incoloy 330 BLRF Flanges
Incoloy 330 Groove & Tongue Flanges
Incoloy 330 High Hub Blind Flanges
Incoloy 330 Spectacle Blind Flanges
Incoloy 330 Weld Neck Flanges Series A & B
Incoloy 330 Spade & Ring Spacer Flanges
Incoloy 330 Screwed Flanges
Incoloy 330 Lip Type Flanges
Incoloy 330 WNRF Flanges
Incoloy 330 Flange Facing Types & Finishes
Incoloy 330 Puddle Flanges
Incoloy 330 – Complete Range at a Glance

Why Choose UNS N08330 Incoloy 330 Flanges for Furnace Applications?

Incoloy 330 Pipe Flanges are constructed using a silicon-enriched iron-nickel- chromium alloy which has unsurpassed ability to resist high-temperature oxidation and carburization. UNS N08330 grade is micro structurally stable even when subjected to cyclic heating and cooling over a long period of time. Alloy 330 Flanges unlike most other high-alloy grades are insensitive to the alternating carburizing and oxidizing environments - which is a major benefit in the use of Alloy 330 Flanges in the industrial heating furnace industry in the form of muffles, retorts, and conveyor systems. The alloy can be welded entirely through traditional methods and is capable of being hot- or cold-shaped through the normal industrial processes, which makes the fabrication and field installation much simpler.

Applications of Alloy 330 Flanges

Industrial furnace hardware, muffles, retorts, and conveyor systems
Petrochemical furnace parts and catalyst carriers
Gas turbine engine ducting and combustion liners
Heat-treating baskets and fixtures
Salt pots, boiler fixtures, and perlite expansion systems

Incoloy 330 Flanges – Price List (Request on Quote)

The price of Incoloy 330 Pipe Flanges and Alloy 330 Flanges varies by type, size, and quantity. Contact Solitaire Overseas for an updated price list.

Product Type	Size Range	Price
Alloy 330 Weld Neck Flange (WNRF)	½" – 48"	Request on Quote
Alloy 330 Slip On Flange (SORF)	½" – 48"	Request on Quote
Alloy 330 Blind Flange (BLRF)	½" – 48"	Request on Quote
Alloy 330 Socket Weld Flange (SWRF)	½" – 4"	Request on Quote
UNS N08330 RTJ Flange	½" – 24"	Request on Quote
Alloy 330 Threaded Flange	½" – 4"	Request on Quote

Frequently Asked Questions – Incoloy 330 Flanges

Q1: What is the UNS number for Incoloy 330?

Incoloy 330 is UNS N08330 (WNR 1.4886) is a silicon-bearing iron-nickel-chromium alloy for high-temperature furnace service.

Q2: What temperature can Alloy 330 Flanges withstand?

UNS N08330 Incoloy 330 Flanges operate up to 1150°C (2100°F) in oxidizing atmospheres with excellent carburization resistance.

Q3: Are Incoloy 330 Pipe Flanges weldable?

Yes. Alloy 330 Flanges are weldable by all conventional processes and can be hot- or cold-formed using standard procedures.

Q4: What standard governs Incoloy 330 Flanges?

ASTM B564 / ASME SB564 with dimensions per ANSI/ASME B16.5, B16.47, DIN, EN-1092, and JIS standards.

Q5: What industries use Alloy 330 Flanges?

Incoloy 330 Flanges are used in furnace hardware, petrochemical processing, gas turbines, heat-treating equipment, and carburizing systems.

Get a Quote for Incoloy 330 Flanges

Looking for pricing on UNS N08330 Incoloy 330 Flanges? Send us your type, size, pressure class, and quantity—we'll get back with a quote and lead time within 24 hours. Stock available for quick dispatch.
