Stainless Steel 310S Flanges
Stainless Steel 310S Flanges Manufacturer and Supplier in India
The Stainless Steel 310S Flanges are high chromium, high nickel austenitic steel flanges used for high temperature and corrosive service applications. These flanges are manufactured in accordance to ASTM A182 F310S requirements and provide excellent oxidation resistance up to 1100°C with intermittent service and good mechanical strength at high temperatures. They come in Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint and RTJ types and are used in heat treatment equipment, furnaces, petrochemical plants and chemical processing systems etc. The 310S low carbon content allows for better weldability and reduces carbide precipitation in the production process. These flanges also offer excellent toughness, ease of machining and resistance to scaling in challenging applications. Solitaire Overseas is a leading manufacturer and supplier of stainless steel 310s flanges in India, providing precision engineered flanges with different sizes, pressure class and specification, which are capable of delivering reliable performance and meet international quality standards.
Get a Free Quote for Stainless Steel 310S Flanges →Specifications of Stainless Steel 310S Flanges
| Technical Parameter | Standard & Specification Details |
|---|---|
| Material Specifications | ASTM A182 & ASME SA182 |
| Dimensional Standards | ANSI/ASME B16.5, ASME B16.47 Series A & B, ASME B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Regional / Industry Standards | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size Range | 1/2" (15 NB) to 48" (1200 NB) |
| Class / Pressure Ratings | ASME/ANSI: 150#, 300#, 600#, 900#, 1500#, 2500# EN/DIN (PN Rating): PN6, PN10, PN16, PN25, PN40, PN64, etc. |
| Flange Face Types | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Chemical Composition of Stainless Steel 310S Flanges
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 310S | 0.08 max | 2.0 max | 1.50 max | 0.045 max | 0.030 max | 24.00–26.00 | 19.00–22.00 | — | Balance |
ASTM A105 Carbon Steel Flanges Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength (Min) | Yield Strength (0.2% Offset Min) | Elongation (Min) | Hardness (Max) |
|---|---|---|---|---|---|---|
| SS 310S | 8.0 g/cm³ | 1400°C (2550°F) | 515 MPa (75,000 psi) | 205 MPa (30,000 psi) | 35% | 95 HRB |
Different Types of Stainless Steel 310S Flanges
310s Backing Ring Flange
310s Blind Flange
310s High Hub Blind Flange
310s Long Weldneck Flange
310s Nipoflange
310s Orifice Flange
310s Reducing Flange
310s Ring Type Joint Flange
310s Slip-on Flange
310s Socket Weld Flange
310s Spectacle Blind Flange
310s Square Flange
310s Tongue & Groove Flange
310s Weld Neck Flange
310s Weldoflange
Stainless Steel 310/310s Lap Joint Flange

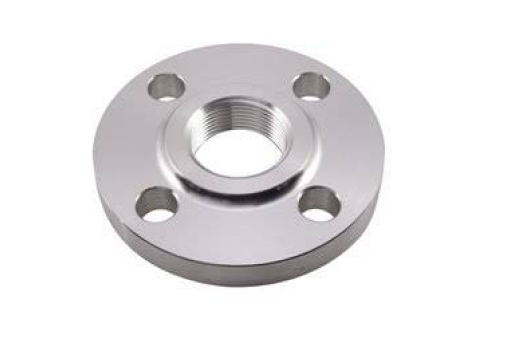

SS 310310s Screwed Threaded Flange
Equivalent Grades of Stainless Steel 310S Flanges
| Grade | Werkstoff Nr. | UNS | JIS | BS | EN | GOST |
|---|---|---|---|---|---|---|
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S24 | X8CrNi25-21 | 20Ch25N20S2 |
Schedule Class of Stainless Steel 310S Flanges
| Flange Schedule / Class | Flange Material | Connection Type | Pipe Size | Max. Pressure |
|---|---|---|---|---|
| ASME B16.5 Class 150 | Stainless Steel 310/310S | FNPT | 1/2" | 150 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Welded | 1/2" | 150 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Socket Weld | 1/2" | 275 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | FNPT | 3/4" | 150 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Socket Weld | 3/4" | 275 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Socket Weld | 1-1/4" | 275 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Socket Weld | 1-1/2" | 275 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | FNPT | 2" | 150 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Socket Weld | 2" | 275 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Socket Weld | 2-1/2" | 275 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Socket Weld | 3" | 275 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | FNPT | 4" | 150 psi |
| ASME B16.5 Class 150 | Stainless Steel 310/310S | Socket Weld | 4" | 275 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | Slip On | 1/2" | 720 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | Slip On | 1" | 720 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | FNPT | 1-1/4" | 720 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | Slip On | 1-1/4" | 720 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | Slip On | 1-1/2" | 720 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | Slip On | 2" | 720 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | Slip On | 2-1/2" | 720 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | Slip On | 3" | 720 psi |
| ASME B16.5 Class 300 | Stainless Steel 310/310S | Slip On | 4" | 720 psi |
Applications of Stainless Steel 310S Flanges
- Heat Treatment Industry
- Petrochemical Industry
- Chemical Processing Industry
- Power Generation Industry
- Oil & Gas Industry
- Furnace Manufacturing Industry
- Cement Industry
- Metallurgical Industry
Frequently Asked Questions
Stainless Steel 310S Flanges are high-temperature resistant pipe flanges used to connect pipes, valves, and equipment in demanding industrial systems.
They contain high levels of chromium and nickel, which provide excellent strength and oxidation resistance at elevated temperatures.
Stainless Steel 310S Flanges can withstand temperatures up to approximately 1100°C in intermittent service conditions.
310S Flanges offer significantly better heat and oxidation resistance than 304 and 316 grades, making them ideal for high-temperature environments.
Yes, 310S Flanges provide excellent oxidation and scaling resistance at elevated temperatures.
They are widely used in heat treatment, petrochemical, chemical processing, power generation, furnace manufacturing, and oil & gas industries.
