Stainless Steel 310 Fittings Supplier & Exporter

Stainless Steel 310 Fittings are Austenitic stainless steel fittings for high-temperature and corrosive service applications. This grade is recognized for its exceptional oxidation resistance to 1100°C in continuous service, and has higher strength than the conventional stainless steel grades. It has around 24-26% of chromium and 19-22% of nickel; this increases its ability to resist scaling, oxidation and thermal fatigue in aggressive industrial environments. Generally, the stainless steel 310 Fittings have a minimum tensile strength of 515MPa, a minimum yield strength of 205MPa and are well suited for challenging applications involving both high pressure and high temperature. These are typically produced to meet dimensional tolerances and performance reliability requirements specified by ASTM A403, ASME B16.9, MSS SP-43 and ASME B16.28. Stainless Steel 310 Buttweld Fittings are commonly employed in the petrochemical plants, heat exchanger, boilers, furnaces, power generation facility and chemical processing industries where high temperature performance is demanded. Solitaire Overseas is a reputed manufacturer and provider of high-quality stainless steel 310 Fittings which offer precision-made stainless steel fittings that meet international quality standards for industrial piping systems.

Table of Content

Specification of Stainless Steel 310 Fittings

CategorySpecification Details
Material GradeStainless Steel 310 / S31000
European DesignationsDIN 1.4845 / EN X8CrNi25-21
Buttweld StandardsASTM A403 WP310 (ASME SA403)
Forged StandardsASTM A182 F310 (ASME SA182)
Dimensions (BW)ASME B16.9 / MSS SP-43
Dimensions (Forged)ASME B16.11 / MSS SP-79
Size Range (BW)1/2" NB to 48" NB
Size Range (Forged)1/8" NPS to 4" NPS (Class 2000 / 3000 / 6000 / 9000)
Thickness/ScheduleSCH 5S, 10S, 40S, 80S, 160, XXS
End TypesBeveled End (BE), Plain End (PE), Threaded End (TE)
Surface FinishPickled, Annealed, Polished (2B, No.4, Mirror)
DocumentationEN 10204 3.1 MTC (3.2 available); PMI Testing available

Chemical Composition of Stainless Steel 310 Fittings

GradeC (Carbon)Mn (Manganese)Si (Silicon)P (Phosphorus)S (Sulfur)Cr (Chromium)Mo (Molybdenum)Ni (Nickel)N (Nitrogen)
SS 3100.25 max2 max0.015 max0.020 max0.015 max24.00 - 26.000.10 max19.00 - 21.0054.7 min
SS 310S0.08 max2 max1.00 max0.045 max0.030 max24.00 - 26.000.75 max19.00 - 21.0053.095 min

Mechanical Properties of Stainless Steel 310 Fittings

PropertyValue
Density7.9 g/cm³
Melting Point1402 °C (2555 °F)
Tensile Strength75,000 Psi (515 MPa)
Yield Strength (0.2% Offset)30,000 Psi (205 MPa)
Elongation40 %

Equivalent Grades of Stainless Steel 310 Fittings

GradeWerkstoff Nr.UNSJISBSGOSTAFNOREN
SS 3101.4841S31000SUS 310310S2420Ch25N20S2-X15CrNi25-20
SS 310S1.4845S31008SUS 310S310S1620Ch23N18-X8CrNi25-21

Types of Stainless Steel 310 Fittings

1/2 - 24 inch 310 stainless steel fittings butt-welded elbow

1/2 - 24 inch 310 stainless steel fittings butt-welded elbow

1mm - 40mm thickness, SS 310 Buttweld Fittings

1mm - 40mm thickness, SS 310 Buttweld Fittings

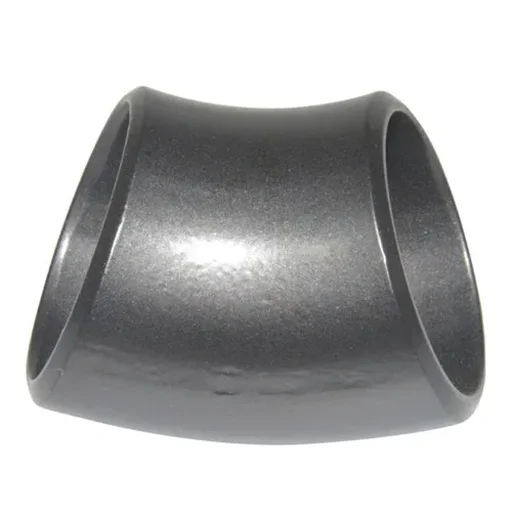

45 Degree 310 Stainless Steel Short Bend Weld Fittings

45 Degree 310 Stainless Steel Short Bend Weld Fittings

60 degree Stainless Steel 310 butt weld tee asme b16.9 stainless steel fittings

60 degree Stainless Steel 310 butt weld tee asme b16.9 stainless steel fittings

ASME B16.9 Stainless 310 Butt Weld Cross Pipe Fittings

ASME B16.9 Stainless 310 Butt Weld Cross Pipe Fittings

seamless 90 degree sch 40 310 stainless pipe fittings elbow

seamless 90 degree sch 40 310 stainless pipe fittings elbow

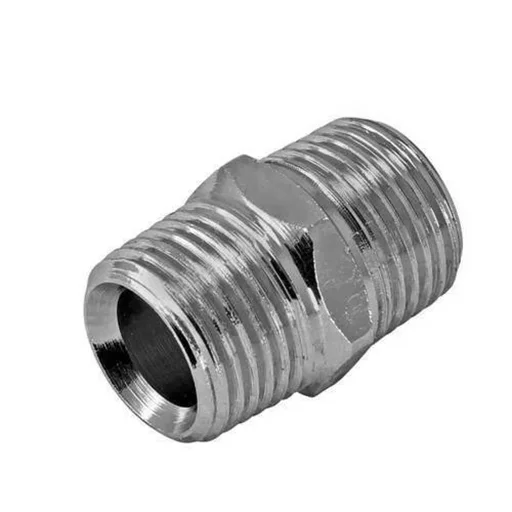

Stainless 310 Pipe Fittings, Hex Nipple, Nipple

Stainless 310 Pipe Fittings, Hex Nipple, Nipple

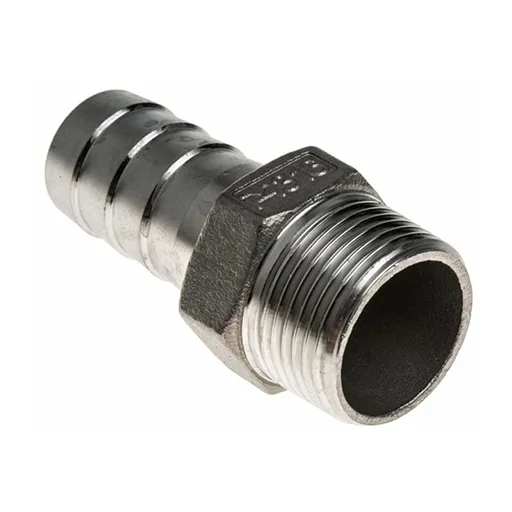

stainless pipe fittings ss 310 Male hose nipple pipe fittings

stainless pipe fittings ss 310 Male hose nipple pipe fittings

Stainless Steel 45 Degree Elbow SS310 Butt Welded Pipe Fittings

Stainless Steel 45 Degree Elbow SS310 Butt Welded Pipe Fittings

Stainless Steel 310 Butt Weld Tee

Stainless Steel 310 Butt Weld Tee

stainless steel fittings 310S butt welding dn500 pipe fittings stub end

stainless steel fittings 310S butt welding dn500 pipe fittings stub end

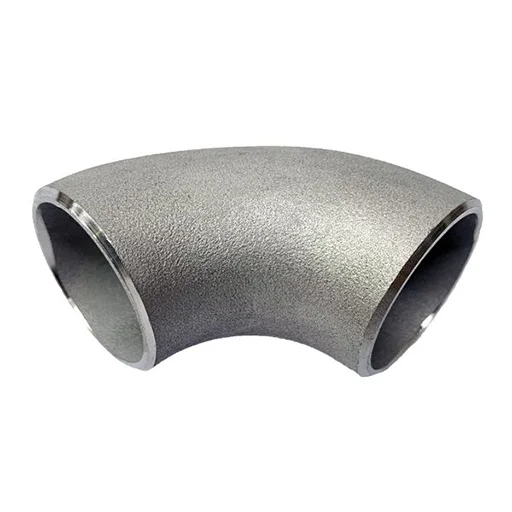

Stainless Steel SS310 90 Degree Butt Weld Elbow Sanitary Pipe Fittings

Stainless Steel SS310 90 Degree Butt Weld Elbow Sanitary Pipe Fittings

SS UNS S31000 Reducer Dimension Chart

NPSOD (mm)OD (Inches)Caps Length (In)Tees/Crosses Center to End (In)Stub Ends Lap Dia (In)Stub Ends Long Length (In)Stub Ends Short Length (In)
1/221.30.840111 3/832
3/426.71.05011 1/81 11/1632
133.41.3151 1/21 1/2242
1 1/442.21.6601 1/21 7/82 1/242
1 1/248.31.9001 1/22 1/42 7/842
260.32.3751 1/22 1/23 5/862 1/2
2 1/273.02.8751 1/234 1/862 1/2
388.93.50023 3/8562 1/2
3 1/2101.64.0002 1/23 3/45 1/263
4114.34.5002 1/24 1/86 3/1663
5141.35.56334 7/87 5/1683
6168.36.6253 1/25 5/88 1/283 1/2
8219.18.6254710 5/884
10273.110.75058 1/212 3/4105
12323.912.75061015106

Weight Chart of Stainless Steel 310 Fittings

DNSch 10S: 90°Sch 10S: 45°Sch 10S: TeeSch 40S: 90°Sch 40S: 45°Sch 40S: TeeSch 80S: 90°Sch 80S: 45°Sch 80S: Tee
80.020.010.030.030.020.060.040.030.07
100.030.020.050.030.020.030.060.040.09
150.060.030.090.080.040.100.100.050.14
200.070.030.130.080.040.170.110.050.20
250.140.080.280.150.110.290.220.140.38
320.230.110.490.260.170.590.400.230.68
400.300.170.680.400.230.860.510.291.02
500.500.250.850.700.401.280.910.591.59
650.850.481.411.400.772.191.810.993.13
801.250.631.772.201.083.312.971.504.45
901.700.752.672.831.424.084.002.005.44
1002.101.083.464.472.095.276.182.817.71
1505.452.728.0710.895.4410.9916.328.1613.61
20010.205.3315.6521.5410.7720.9133.1116.5628.12
25018.159.7526.4638.5619.2735.3851.7125.8649.90
30025.8013.6239.4659.4229.7162.1479.3839.6983.91

Application Usage of Stainless Steel 310 Fittings

  • Oil and Gas Pipeline
  • Chemical Industry
  • Plumbing
  • Water Supply Systems
  • Power Plant
  • Paper & Pulp Industry
  • General Purpose Applications

Indicative Price List of Stainless Steel 310 Fittings

Fitting Type / GradePrice (INR - ₹)Price (UAE Dirham - AED)
ASTM A403 WP310 Buttweld Fittings₹405AED 20.75
ASTM A403 WP310S Pipe Fittings₹291AED 14.91
ASTM A403 WP310H Buttweld Pipe Fittings₹623AED 31.92
ASTM A403 WP310 Elbow (Mumbai Price)₹580AED 29.72
ASTM A403 WP310H Fittings (Mumbai Price)₹676AED 34.64

Note: Prices above are indicative per-piece estimates for standard sizes (1/2" to 2" NPS) in standard wall thicknesses. Actual pricing varies by size, schedule, quantity, finish, testing requirement, and market conditions. Prices are updated periodically. Contact Solitaire Overseas for a precise quote for your specific requirement.

Frequently Asked Questions

Stainless Steel 310 fittings are high-temperature austenitic stainless steel pipe fittings used in furnaces, boilers, heat exchangers, petrochemical plants and thermal processing systems.

ASTM A403 WP310 is the material specification for wrought austenitic stainless steel pipe fittings made from Grade 310 stainless steel for high-temperature service.

SS 310 has higher carbon content for high-temperature strength, while SS 310S has lower carbon content for improved weldability and reduced carbide precipitation.

Common types include 45 degree elbows, 90 degree elbows, tees, reducers, caps, stub ends, crosses, bends, couplings, unions and forged socket weld or threaded fittings.

Yes. SS 310 fittings are widely used in furnace parts, heat treatment equipment and high-temperature process piping because of their oxidation resistance at elevated temperatures.

Orders can be supplied with EN 10204 3.1 MTC, PMI report, dimensional inspection report and third-party inspection documents when required.

Request a Quote for SS 310 Fittings — Share your size, schedule, grade (310 or 310S), quantity, and inspection requirement. Solitaire Overseas will respond with availability, pricing, MTC details, and delivery timeline within 24 hours.
