Incoloy 825 Pipe Fittings Manufacturer | Inconel Alloy 825 Fittings Supplier

Incoloy 825 is an austenitic, high-nickel, and stabilized alloy that is used in the manufacture of products with high demands on impact strength, hardenability, and also fatigue in strenuous chemical conditions. Specialized chemistry of ASTM B366 UNS N08825 pipe fittings enriched with molybdenum and copper provides better protection against reducing substances and its high chromium content guarantees strength against oxidizing substances, such as nitric acid. Moreover, the titanium content in Inconel 825 fittings can reinforce pitting and intergranular corrosion especially when welding because the alloy is shielded within the critical sensitising temperature range of 650 o C to 760 o C.

ASTM B366 UNS N08825 Elbow, Alloy 825 Fittings, Incoloy 825 Pipe Fittings, ASTM B366 UNS NO8825, ASME SB366 Alloy 825 Pipe Fittings & Incoloy 825 Fittings Manufacturer & Supplier in India

Solitaire Overseas offers a comprehensive portfolio of high-performance piping components designed as durable, sustainable alternatives that drive business growth through premium quality. As a leading manufacturer, supplier, and exporter, we provide Incoloy 825 Pipe Fittings engineered to create secure, reliable connections across various piping dimensions. Our extensive inventory of Incoloy 825 Buttweld Fittings includes both standard and customized configurations compliant with ASTM B366 specifications. These fittings, available in both seamless and welded constructions, are specifically designed for pressure piping systems and pressure vessel fabrication operating at moderate to elevated temperatures.

Our Incoloy 825 Buttweld Fittings are essential for the oil and petroleum sectors, featuring a solid metal body construction that eliminates porosity and ensures reliability in critical transmission applications. Furthermore, we supply ASTM B366 UNS N08825 Lap Joint Stub Ends, which offer excellent corrosion resistance and are reusable, allowing for quick dismantling during system inspections. Solitaire Overseas maintains a wide range of Incoloy 825 ASTM B366 pipe fittings, including tees, end caps, reducers, crosses, elbows, and stub ends to meet diverse industrial requirements.

Looking to buy Stainless Steel Fittings?

Check price of Stainless Steel 304 Fittings & Stainless Steel 316 Fittings

Weight Calculator

Specifications of Incoloy 825 Pipe Fittings
Inconel 825 Fittings Chemical Composition
Mechanical Properties of Incoloy 825 Fittings
Equivalent Grades of Alloy 825 Fittings
Incoloy 825 Fittings Wall Thickness
Types of Incoloy 825 Pipe Fittings
Alloy 825 Fittings Pressure Rating
Incoloy Alloy 800 Elbow Dimensions Chart
Applications of Incoloy 825 Fittings
Incoloy 825 Pipe Fittings Price List

Specifications of Incoloy 825 Pipe Fittings

Specifications	ASTM B366 / ASME SB366
Dimensions	ASME/ANSI B16.9
Size	1/8” NB TO 28” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type	Seamless / Welded / Fabricated
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness	Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS or Custom Thickness upto 50 MM

Inconel 825 Fittings Chemical Composition

ELEMENT	INCOLOY 825
NI	38.00 – 46.00
CU	1.50 – 3.00
MO	2.50 – 3.50
FE	22.00 min
MN	1.00 max
C	0.05 max
SI	0.5 max
S	0.03 max
CR	19.50 – 23.50
AL	0.02 max
TI	0.06 – 1.20

Mechanical Properties of Incoloy 825 Fittings

CONDITION	TENSILE STRENGTH	YEILD STRENGTH	ELOGNATION
ANNEALED	85 (586)	35 (241)	30

Equivalent Grades of Alloy 825 Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

Incoloy 825 Fittings Wall Thickness

NPS (inches)	OD		Incoloy 825 Cap	Alloy 825 Tee Fittings (Straight)		Incoloy UNS N08825 Cross fittings (Straight)	ASTM B366 UNS N08825 Stub End Fittings
NPS (inches)	(mm)	(inches)	Length (inch)	Center to End (inch)	Center to End (inch)	Lap Diameter (inch)	Long Length (inch)	Short Length (inch)
1/2	21.3	0.840	1	1	-	1 3/8	3	2
3/4	26.7	1.050	1	1 1/8	-	1 11/16	3	2
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
8	219.1	8.625	4	7	7	10 5/8	8	4
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5
12	323.9	12.750	6	10	10	15	10	6

Types of Incoloy 825 Pipe Fittings

Incoloy 825 Pipe Fittings

Alloy 825 Elbow

Incoloy UNS N08825 Tee

ASTM B366 UNS N08825 Reducer

Inconel 825 Stub End

DIN 2.4858 Incoloy Cross

Nickel Alloy 825 Pipe Bends

Incoloy 825 UNS N08825 Return Bends

ASME SB 366 UNS N08825 90 Degree Elbow

Nickel Alloy 825 Short Radius Elbow

Incoloy 825 UNS N08825 Long Radius Elbow

ASME SB 366 UNS N08825 End Cap

Alloy 825 Fittings Pressure Rating

°C	°F	150
29 to 66	20 to 150	300
93	200	265
121	250	225
149	300	185
177	350	150
204	400
232	450
260	500
288	550

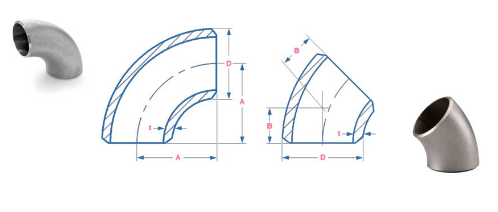

Incoloy Alloy 800 Elbow Dimensions Chart

NPS	O.D.	45° 3D	90° 3D	45° LR	90° LR
NPS	D	B	A	B	A
1/2	21.3			16	38
1	33.4	31	76	22	38
1.1/2	48.3	47	114	29	57
2	60.3	63	152	35	76
3	88.9	95	229	51	114
4	114.3	127	305	64	152
6	168.3	189	457	95	229
10	273	316	762	159	381
14	355.6	441	1067	222	533
18	457	568	1372	286	686
22	559	694	1676	343	838
26	660	821	1981	406	991
30	762	946	2286	470	1143
34	864	1073	2591	533	1295
36	914	1135	2743	565	1372
38	965	1200	2896	600	1448
40	1016	1264	3048	632	1524
42	1067	1326	3200	660	1600
44	1118	1389	3353	695	1676
46	1168	1453	3505	727	1753
48	1219	1516	3658	759	1829

Applications of Incoloy 825 Fittings

Incoloy 825 Pipe Fittings are engineered for exceptional performance in demanding industrial environments. Their superior corrosion resistance and high-temperature properties make them vital components across numerous sectors.

Oil and Gas: Pipeline systems and hydrocarbon processing.
Chemical Industry: Handling corrosive chemicals and acids.
Power Generation: Components in power plant infrastructure.
Water Management: Water supply and industrial water systems.
Pulp and Paper: Piping systems within the paper and pulp industry.
Fabrication and Structural: General purpose and structural pipe fabrication.
Food Processing: Applications requiring hygienic and corrosion-resistant materials.
General Plumbing and Heating: High-performance installations.

Incoloy 825 Pipe Fittings Price List

Manufacturer and supplier of Alloy 825 Pipe Fittings in Buttweld, Socket weld and Threaded connection as per ASME B16.9, B16.11, check latest Price List ex Mumbai

Product	FOB Price
Incoloy 825 Pipe Fitting and Incoloy 901 Alloy Elbow 90 Degree Pipe Fitting	US $100.00-$1,000.00/ Piece
Astm SB425 incoloy 825 UNS N08825 pipe fittings	US $90.00-$100.00/ Piece
ASME B16.11 B366 CL6000 SW Alloy 825 ELBOW Incoloy 825 90 DEGREE UNS N08825 ELBOW	US $10.00-$30.00/ Piece
ASTM B366 Incoloy 825 Pipe Elbow Reducer Tee Stub Ends	US $0.90/ Piece
UNS N07725 INCOLOY 725 Coupling plug socket hex plug pipe plug pipe fittings	US $5.00-$5.30/ Piece
Incoloy 825 90D LR/SR elbow U bend 180 elbow 90 degree bends	US $2.30/ Piece
Incoloy 825 UNS N08825 Pipe Fitting SS Elbow / Tee / Reducer / Cap	US $1.00-$100.00/ Piece
ASTM B366 Incoloy 825 Butt-welding Fittings	US $500.00/ Piece
High quality aisi astm Incoloy 825 Elbow 90 Degree Pipe Fitting	US $10.00-$15.00/ Piece
Hot sale price Incoloy 825 Elbow Tee Pipe fittings per pc price	US $1.00-$100.00/ Piece
High Precion Incoloy 825 N08825 2.4858 Pipe Fittings	US $1.00/ Piece
Incoloy 825 2.4858 threaded and forged tee cross elbow	US $2.00-$5.00/ Piece
