ASTM A335 P9 Seamless Pipe Supplier | SA335 GR P9 Pipes Manufacturer in India

ASTM A335 P9 Seamless Pipe Manufacturer, Stockist & Exporter

Solitaire Overseas manufactures and exports Alloy Steel P9 Pipes in India in seamless 9Cr-1Mo (chromium-molybdenum) pipe produced to ASTM A335 / SA 335 Grade P9 for high-temperature, high-pressure service.

The 9Cr-1Mo composition gives these pipes strong resistance to oxidation, corrosion, and creep deformation in demanding industrial environments. We maintain ready stock across sizes and schedules, with full traceability, mill test certification and fast global delivery.

Request a Quote for ASTM A335 P9 Seamless Pipe

What is Alloy Steel P9 Pipe?

Alloy Steel P9 Pipes (also known as ASTM A335 GR P9 Seamless Pipe or SA335 P9 Pipe) are seamless ferritic alloy-steel pipes engineered for high-temperature, high-pressure service. Classified under ASTM A335 / ASME SA335 standards, these pipes are widely used for transporting water, oil, natural gas, steam, and corrosive fluids in demanding industrial environments.

The designation 'P9' refers to the pipe's alloy composition, primarily 9% Chromium (Cr) and 1% Molybdenum (Mo) , a combination that delivers exceptional oxidation resistance, high-temperature creep strength, and corrosion resistance. These pipes are often referred to as 9Cr-1Mo pipes or Chrome Moly P9 Pipes in the industry.

Chromium enhances high-temperature oxidation resistance, hardness, and toughness at room temperature. Molybdenum improves creep resistance (resistance to slow deformation under sustained load at high temperatures), wear resistance, and prevents grain growth — reducing embrittlement risks in long-service applications such as power plant boilers and petrochemical reactors.

Solitaire Overseas maintains ready stock of ASTM A335 P9 Seamless Pipes in a wide range of sizes and schedules, with full Mill Test Certificates (MTC) and traceability documentation.

ASTM A335 P9 Pipe Specification

Parameter	Details
Standard	ASTM A335 / ASME SA335
Grade	P9 (9Cr-1Mo)
Pipe Size	1/8" NB to 36" NB (6mm – 914mm OD)
Outer Diameter	6 mm – 2500 mm; WT: 1–200 mm
Wall Thickness	0.3 mm – 50 mm (0.095" – 1.000")
Schedule	SCH 20, 30, 40, STD, 60, 80, XS, 120, 140, 160, XXS
Type	Seamless / ERW / Welded / CDW / Fabricated
Form	Round, Square, Rectangular, U-Shape, Coiled, Hydraulic
End	Plain End, Beveled End, Threaded
End Cap	Plastic Caps
Outside Coating	Black Painting, Anti-Corrosion Oil, Galvanised, Custom
Length	Single Random, Double Random, Custom up to 12m
Dimensions Standard	ASTM, ASME, API

Alloy Steel P9 Material Equivalent Grades

Standard	UNS	Werkstoff / DIN	EN	JIS	BS
ASTM A335 GR P9 / ASME SA335 P9	S50400	1.7386	X11CrMo9-1	STPA 26	3604 P1 629-470

The Alloy Steel P9 equivalent grades include SA335 P9, S50400, 2604 II TS38, STPA 26, and 3604 P1 629-470. The EN designation X11CrMo9-1 and DIN WNR 1.7386 are commonly referenced in European engineering specifications.

A335 GR P9 Chemical Composition

Element	Symbol	% Content (A335 GR P9)
Carbon	C	0.05 – 0.15
Manganese	Mn	0.30 – 0.60
Phosphorus	P	0.025 max
Sulphur	S	0.025 max
Silicon	Si	0.50 – 1.00
Chromium	Cr	8.00 – 10.00
Molybdenum	Mo	0.90 – 1.10

The chromium content of 8-10% is the defining characteristic of P9, often referred to as a 9Cr-1Mo alloy steel pipe. This distinguishes it from lower-Cr grades like P5 (4-6% Cr) and higher-performance P91.

ASTM A335 P9 Pipe Mechanical Properties

Property	Value
Tensile Strength (min)	415 MPa (60,200 psi)
Yield Strength 0.2% Offset (min)	205 MPa (29,700 psi)
Elongation (min)	30%
Hardness (max)	250 HB (Brinell Hardness)

The high elongation percentage of 30% indicates good ductility, allowing the pipe to undergo forming operations including bending, flanging, and fusion welding without cracking.

Heat Treatment of SA335 P9 Pipe

SA335 GR P9 pipe heat treatment is critical to achieving the required mechanical properties and microstructure. The accepted heat treatment methods for A335 P9 alloy steel pipe include:

Full Anneal: Heating above the upper critical temperature, then slow furnace cooling.
Isothermal Anneal: Heating above upper critical temperature, transferring to a lower temperature furnace, holding, then air cooling.
Normalized and Tempered: Normalize above the upper critical temperature (typically above 900°C), then temper at a minimum of 675°C.

Proper post-weld heat treatment (PWHT) is also mandatory for P9 welds to relieve residual stresses and restore material toughness.

P9 Pipe Corrosion Resistance and High-Temperature Scaling

A common concern with alloy steel P9 pipes in service is oxide scale formation at sustained high temperature. The 8-10% chromium content in P9 forms a protective chromium oxide layer on the pipe's inner and outer surface, which slows further oxidation this is the same mechanism that gives P9 its corrosion resistance advantage over plain carbon steel or low-chromium grades like P1 and P2.

However, P9's corrosion resistance has a practical temperature ceiling. Above roughly 600°C (1112°F), the protective chromium oxide scale can grow faster than it stabilizes, leading to accelerated scaling, gradual wall-thickness loss, and in fireside boiler tube applications internal steam-side oxide scale that can flake and cause tube blockage or overheating. This is why higher-chromium, vanadium-modified grades like P91 are specified for the most demanding superheater and reheater zones, while P9 remains well suited to moderate high-temperature service below this threshold.

Practical points for buyers evaluating P9 corrosion/scaling risk:

Service temperature: confirm your design temperature stays comfortably below the ~600°C scaling threshold for continuous service; brief excursions are less critical than sustained operation near the limit.
Steam-side oxide scale: in boiler tube applications, periodic inspection for internal scale buildup is standard practice regardless of grade — P9's performance here is a known, well-documented behavior in power industry literature, not a defect.
Environment: sulfidation and chloride-bearing environments accelerate degradation beyond simple oxidation — for aggressive process-side chemistry, discuss your specific media with our technical team before finalizing grade selection.
Upgrade path: if your application is near or above the P9 temperature ceiling, our Alloy Steel P91 Pipes offer a higher-performance alternative.

Hardness & Welding of ASTM A335 P9 Pipe

Hardness: The maximum Brinell hardness for ASTM A335 P9 seamless pipe shall not exceed 250 HB as specified in ASTM A335.

Welding Procedure: All conventional fusion welding methods are acceptable for Chrome Moly P9 pipe welding except oxyacetylene welding and submerged arc welding. Pre-heating and controlled interpass temperatures are recommended to prevent cracking in this high-Cr alloy. Post-weld heat treatment (PWHT) at a minimum of 730°C is strongly recommended.

Types of Alloy Steel P9 Pipes

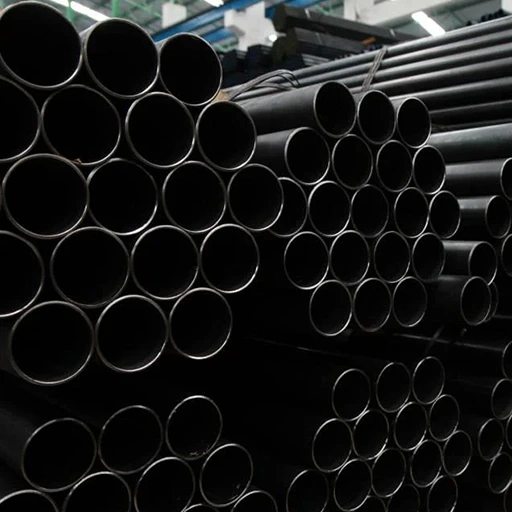

ASTM A335 P9 CDW Pipe

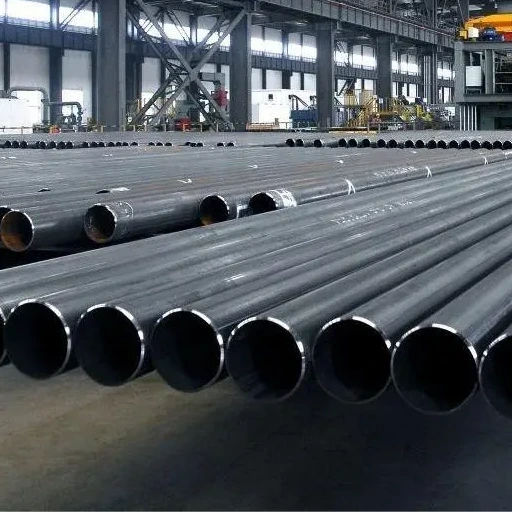

ASTM A335 P9 Fabricated Pipe

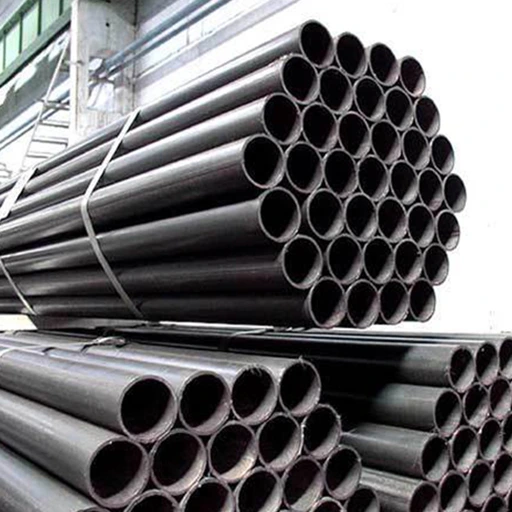

ASTM A335 P9 High Pressure Pipe

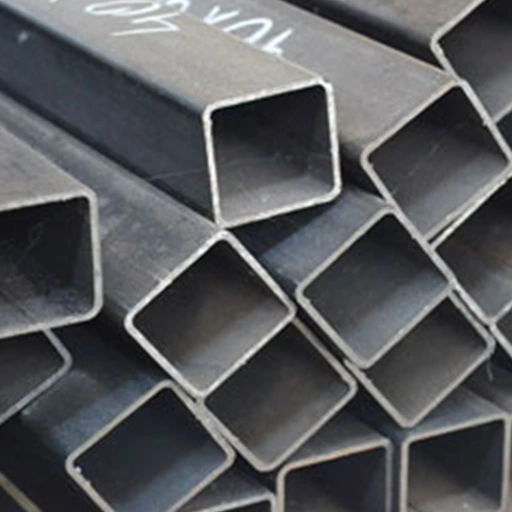

ASTM A335 P9 Rectangular / Square Pipe

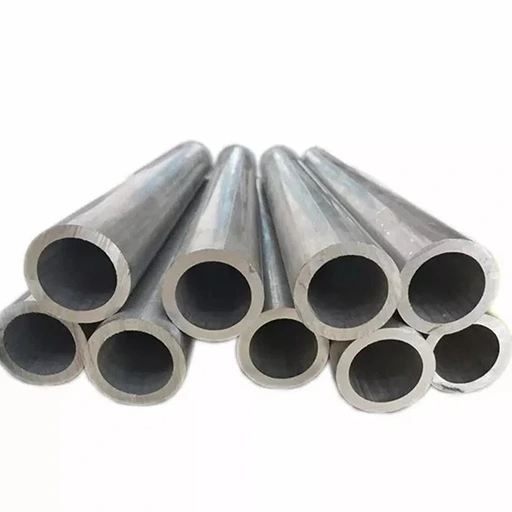

ASTM A335 P9 Round Pipe

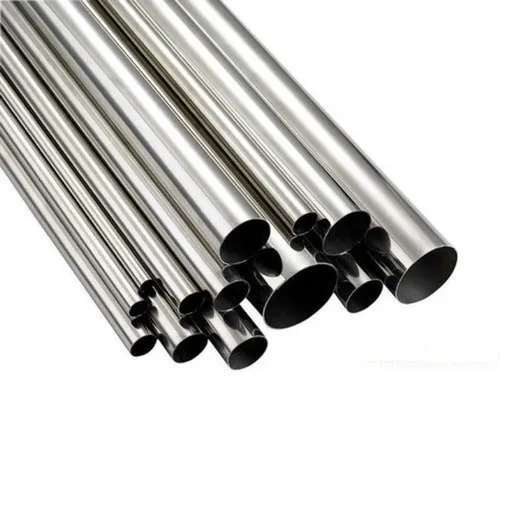

ASTM A335 P9 Seamless Pipe

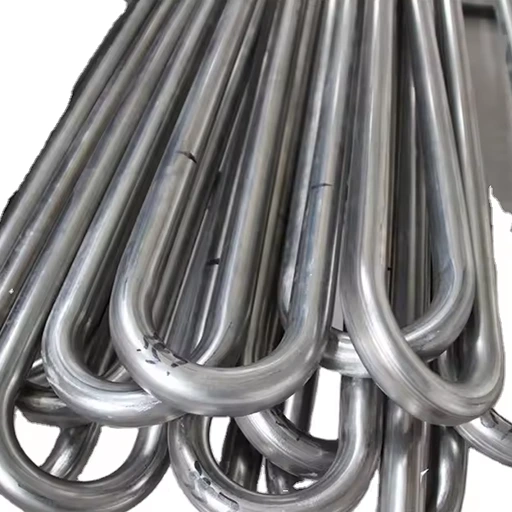

ASTM A335 P9 U-Shape / Coiled Pipe

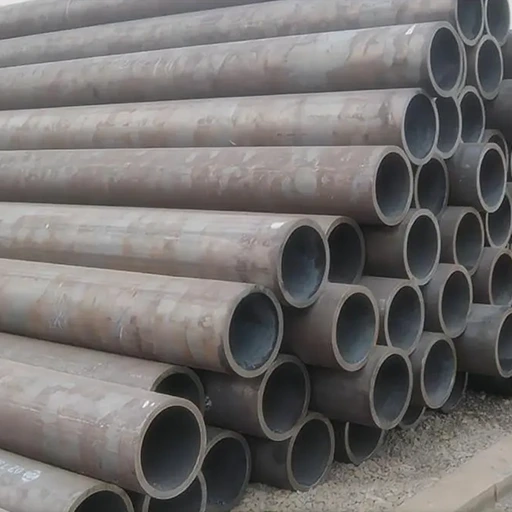

ASTM A335 P9 Welded / ERW Pipe

ASTM A335 P9 vs ASTM A335 P91 - Key Differences

A common query is ASTM A335 P9 vs P91. While both are 9Cr alloy steels, P91 is a modified, higher-performance grade:

Property	P9 (ASTM A335 GR P9)	P91 (ASTM A335 GR P91)
Chromium %	8.00 – 10.00%	8.00 – 9.50%
Molybdenum %	0.90 – 1.10%	0.85 – 1.05%
Vanadium	Not present	0.18 – 0.25% (key differentiator)
Tensile Strength (min)	415 MPa	585 MPa
Yield Strength (min)	205 MPa	415 MPa
Hardness (max)	250 HB	265 HB
Primary Use	Moderate high-temp service	Advanced power plant superheaters, headers

A335 GR P9 Boiler Pipe Dimension Tolerance

Hot Rolled (ASTM A450)

Outside Diameter (mm)	Tolerance (mm)
OD ≤ 101.6	+0.4 / -0.8
101.6 < OD ≤ 190.5	+0.4 / -1.2
190.5 < OD ≤ 228.6	+0.4 / -1.6

Cold Drawn (ASTM A450)

Outside Diameter (mm)	Tolerance (mm)
OD < 25.4	± 0.10
25.4 ≤ OD ≤ 38.1	± 0.15
38.1 < OD < 50.8	± 0.20
50.8 ≤ OD < 63.5	± 0.25
63.5 ≤ OD < 76.2	± 0.30
76.2 ≤ OD ≤ 101.6	± 0.38
101.6 < OD ≤ 190.5	+0.38 / -0.64
190.5 < OD ≤ 228.6	+0.38 / -1.14

ASTM A530 & A335 NPS Tolerances

NPS / OD Range	Tolerance (mm)
1/8" ≤ OD ≤ 1-1/2"	± 0.40
1-1/2" < OD ≤ 4"	± 0.79
4" < OD ≤ 8"	+1.59 / -0.79
8" < OD ≤ 12"	+2.38 / -0.79
OD > 12"	± 1%

Available Sizes of Low Alloy ASTM A335 P9 Steel Pipe

ASTM A335 P9 pipe sizes available from Solitaire Overseas (OD × WT in mm):

OD × WT (mm)	OD × WT (mm)	OD × WT (mm)
38.1 × 3.2	57.0 × 4.9	76.2 × 4.0
38.1 × 4.0	57.0 × 6.3	76.2 × 5.0
38.1 × 6.3	57.0 × 7.9	76.2 × 6.3
42.4 × 3.2	60.3 × 3.2	82.5 × 4.5
44.5 × 3.2	60.3 × 5.0	88.9 × 3.2
48.3 × 3.2	63.5 × 3.2	88.9 × 4.0
50.8 × 4.5	63.5 × 4.0	101.6 × 3.6
51.0 × 3.2	63.5 × 6.3	101.6 × 4.5
57.0 × 3.2	70.0 × 3.2	114.3 × 5.0
57.0 × 3.6	70.0 × 6.3	139.7 × 5.0

For large diameter and custom size requirements, please contact our sales team.

Alloy Steel P9 Pipe Schedule Availability by Size

NPS Range	Commonly Stocked Schedules
1/8" to 3/8"	SCH 40, SCH 80, SCH 160
1/2" to 2"	SCH 40, SCH 80, SCH 160, SCH XXS
2 1/2" to 6"	SCH 40, SCH 80, SCH 160
8" and above	SCH 40, SCH 80; heavier schedules on request

Non-standard schedules and large-diameter/custom sizes are available against order — contact our sales team to confirm availability for your exact specification.

Applications of ASTM A335 P9 Pipe

ASTM A335 P9 alloy steel pipes are used across critical industries due to their high-temperature performance, oxidation resistance, and mechanical strength:

Power Plants & Boilers: Superheaters, reheaters, boiler headers, steam lines operating at elevated temperatures
Oil & Gas Industry: Refineries, hydrocracker units, petrochem plants, oil field piping
Chemical & Petrochemical Industry: High-temperature reactors, pressure vessels, process piping
Heat Exchangers: Shell & tube heat exchangers, condenser tubes
Fabrication Industry: Custom fabrications requiring durable, chemical-resistant alloy steel
Food Processing Industry: Stainless hygienic piping for high-temp fluid transport
Paper & Pulp Industry: Chemical recovery boilers, steam piping
Water Supply Systems: High-pressure water transmission pipelines
Pressure Vessels & Flanges: Flanges and fittings in high-temp service
General Industrial Heating: Furnace tubes, process heaters, thermal cracking units

Why Choose Solitaire Overseas for Alloy Steel P9 Pipes?

ISO-certified manufacturer with full Mill Test Certificate (MTC) and material traceability
Extensive ready stock of ASTM A335 P9 seamless pipes in all schedules and sizes
Customised cutting, threading, bevelling, and coating on request
Competitive P9 pipe price list with multiple make options (ISMT, MSL, JSL and others)
Global export experience to 50+ countries including USA, UAE, Saudi Arabia, Germany, and Australia
Dedicated technical support for material selection between P9, P11, P22, P91 grades
Fast lead times with sea and air freight options
Full documentation package: EN 10204 3.1 MTC, NABL lab test reports, packing lists, COO

Packing & Delivery of Alloy Steel P9 Seamless Pipes

Pipes up to 3" OD are bundled and wrapped with polypropylene sheets, secured with flat steel bands.
Pipes over 3" OD are packed individually (loose) to avoid surface damage.
Bare or coated ends with plastic end caps to prevent ingress of moisture and debris.
Anti-corrosion oil coating applied inside bore for sea shipments.
Each bundle is labelled with heat number, size, grade, and standard for full traceability.

Pipeline Surface Finishes and Coating Options

Beyond mill-standard black/bare finish, ASTM A335 P9 pipe can be supplied with the following surface treatments for pipeline and export applications:

Bare / mill finish
Mill varnish or anti-corrosion oil coating
Hot-dip galvanized
FBE (fusion bonded epoxy) — single or dual layer
3LPE / 3LPP (three-layer polyethylene / polypropylene)
Coal tar enamel coating
Concrete weight coating (for offshore/subsea line pipe)
Tape wrap

Specify your required coating system and destination environment (soil-buried, subsea, or above-ground) when requesting a quote.

Frequently Asked Questions - ASTM A335 Alloy Steel P9 Pipes

What is P9 piping material?

ASTM A335 / SA335 P9 is a seamless ferritic alloy-steel pipe primarily used in high-temperature applications. It contains 8–10% chromium and 0.9–1.1% molybdenum, which give it excellent oxidation resistance and high-temperature creep strength. It is widely used to transport water, oil, steam, and natural gas in power plants, refineries, and petrochemical facilities.

What is the equivalent of P9 steel?

The equivalent grades for Alloy Steel P9 pipe include SA335 P9 (ASME), S50400 (UNS), 1.7386 (DIN / Werkstoff Nr.), X11CrMo9-1 (EN), STPA 26 (JIS), and 3604 P1 629-470 (BS).

What is the hardness of ASTM A335 P9 pipe?

The maximum Brinell hardness of ASTM A335 P9 pipe shall not exceed 250 HB.

What heat treatment is required for SA335 P9 pipe?

Accepted SA335 P9 heat treatment methods include Full Anneal, Isothermal Anneal, and Normalizing + Tempering at a minimum of 675°C. Post-weld heat treatment (PWHT) is mandatory for welded joints.

What is the welding procedure for P9 pipe?

All conventional fusion welding methods are permitted for Chrome Moly P9 pipe welding except oxyacetylene and submerged arc welding. Pre-heating and PWHT at ≥730°C are strongly recommended.

What is the difference between P9 and P91 pipe?

P91 pipe is a modified 9Cr-1Mo-V grade with vanadium added, offering significantly higher tensile (585 MPa min) and yield strength (415 MPa min) compared to P9 pipe (415 MPa and 205 MPa respectively). P91 is preferred for advanced ultra-supercritical power plants.

What are the main applications of ASTM A335 P9 pipe?

ASTM A335 P9 pipe is used in power plant boilers, superheaters, oil refineries, petrochemical plants, heat exchangers, pressure vessels, and high-temperature process piping.

What is the price of A335 P9 seamless pipe?

The A335 P9 pipe price depends on the size, schedule, wall thickness, and make (ISMT, MSL, JSL, or imported). Please contact us for a current price list and quotes tailored to your requirement.

Do P9 pipes corrode or develop scale in service?

P9's 8-10% chromium content forms a protective oxide scale that resists corrosion well below approximately 600°C. Above that threshold, oxide scale can form faster than it stabilizes, leading to gradual wall loss a known behavior in power industry service, not a manufacturing defect. For continuous service above this range, higher-chromium grades like P91 are typically specified instead.
