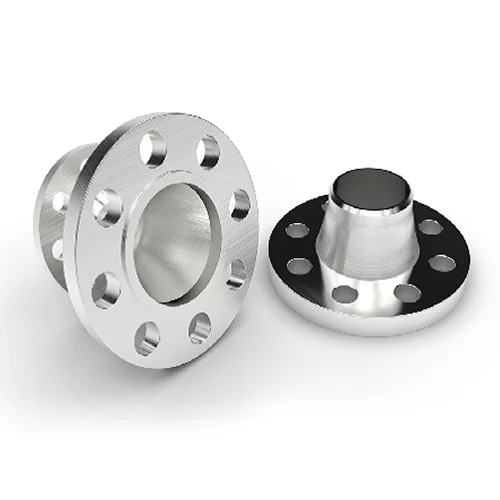

Super Duplex UNS S32760 Flanges Manufacturer, Supplier & Exporter

Solitaire Overseas is a prominent manufacturer, supplier, and exporter of stainless steel Super Duplex S32760 Flanges. They are also called ASTM A182 F55 Flanges, and are recommended for the most demanding high-pressure and highly corrosive requirements in industries. As a quality stockist and supplier with a growing national profile, we guarantee our flanges have a unique combination of advanced strength and corrosion resistance based on the metallurgical properties of the material. We have large inventories of types and sizes, giving us the ability to provide a very competitive price to support your project requirements anywhere in the world.

Enquire Now

What are Super Duplex Steel UNS S32760 Flanges?

UNS S32760 is a highly sought-after super duplex stainless steel due to its distinct characteristics. Its microstructure is a balanced mix of austenite and ferrite, a dual-phased composition that is key to its unique properties.

Extraordinary Strength: The balanced duplex structure of S32760 Flanges provides a tensile and yield strength that is approximately twice that of standard austenitic stainless steels. This allows the flanges to withstand heavy loads and high pressures, contributing to their exceptional durability.
Superior Corrosion Resistance: The high content of chromium, nickel, molybdenum, and nitrogen in this alloy provides outstanding resistance to various corrosive environments. It is particularly effective against pitting, crevice corrosion, and stress corrosion cracking (SCC) in chloride-rich settings and at elevated temperatures up to 302°F (150°C).
Good Weldability and Durability: Despite its high alloy content, this grade can be welded using common methods without compromising its mechanical properties. Additionally, it offers excellent resistance to erosion and abrasion, making it a preferred choice for applications with abrasive media.

Specifications of Super Duplex UNS S32760 Flanges

Our Super Duplex UNS S32760 Flanges conform to a wide range of international standards and specifications to ensure their quality and compatibility.

Property	Details
Equivalent Grades	Standard: Super Duplex S32760Werkstoff Nr.: 1.4410UNS: S32760
Standards & Dimensions	ASME B16.5, ASME B16.47 (Series A & B), BS 10, BS4504, DIN, EN-1092
Size Range	1/2" (15 NB) to 48" (1200 NB)
Pressure Rating	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Production Technique	Forged, Heat-Treated, and Machined
Flange Face Types	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF)
Test Certificates	EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third-Party Inspection Report

Chemical Composition of Super Duplex UNS S32760 Flanges

Grade	C (max)	Mn (max)	Si (max)	P (max)	S (max)	Cr	Mo	Ni	N	Fe (min)
S32760	0.05	1.00	1.00	0.030	0.010	24.00 – 26.00	3.00 – 4.00	6.00 – 8.00	0.20 – 0.30	57.61

Mechanical Properties of Super Duplex UNS S32760 Flanges

Property	Density	Melting Point	Tensile Strength (min.)	Yield Strength (min.)
Value	7.8 g/cm³	1350°C (2460°F)	750 MPa	550 MPa

Equivalent Grades of Super Duplex UNS S32760 Flanges

The table below outlines the equivalent grades for UNS S32760, helping to identify comparable materials used in different international standards.

Standard	Werkstoff Nr.	UNS
Super Duplex S32760	1.4410	S32760
Super Duplex F55	1.4501	S32760

Dimensions of Super Duplex UNS S32760 Flanges

We supply UNS S32760 Flanges in a wide range of standard dimensions, as per ASME B16.5 and other specifications. Below are the common flange dimensions:

Nom. Pipe Size	Outer Diameter	Flange Thickness	Hub OD	Bolt Circle Dia.
1/2"	3.5"	0.44"	1.38"	2.38"
1"	4.25"	0.56"	2"	3.12"
2"	6"	0.75"	3.62"	4.75"
4"	9"	0.94"	6.19"	7.5"
8"	13.5"	1.12"	10.62"	11.75"
12"	19"	1.25"	15"	17"
16"	23.5"	1.44"	18.5"	21.25"
20"	27.5"	1.69"	23"	25"

Weight Chart Of Super Duplex UNS S32760 Flanges

This chart provides the approximate weights for various classes of Super Duplex S32760 Flanges, which is essential for shipping and structural calculations.

Normal Sizes (inch)	Class 150 (lb)	Class 300 (lb)	Class 600 (lb)	Class 900 (lb)
1/2"	2.4	3.6	4.5	6.8
1"	4.4	6.5	8.8	12.3
2"	8.8	13.2	19.8	30.8
4"	24.2	37.4	55	77
8"	66	99	154	220
12"	143	220	330	495
16"	242	363	550	825
20"	396	594	880	1320

Types of Super Duplex S32760 Flanges

We offer a comprehensive selection of Super Duplex S32760 Flanges to suit a wide variety of industrial needs.

Super Duplex UNS S32760 Weld Neck Flanges
Super Duplex UNS S32760 Slip-On (SORF) Flanges
Super Duplex UNS S32760 SWRF Flanges
Super Duplex UNS S32760 Blind Flanges
Super Duplex UNS S32760 Threaded Flanges
Super Duplex UNS S32760 Socket Weld Flanges
Super Duplex UNS S32760 Lap Joint Flanges
Super Duplex UNS S32760 Orifice Flanges
Super Duplex UNS S32760 Reducing Flanges
Super Duplex UNS S32760 Long Weld Neck Flanges
Super Duplex UNS S32760 Ring Type Joint Flanges

Applications of Super Duplex UNS S32760 Flanges

F55 Flanges are highly versatile and are used in critical applications where corrosion resistance and strength are paramount.

Chrome Moly Tubes in various Application Industries

Offshore Oil & Gas: Wellhead and manifold flange connections in sour service

Marine Propulsion Systems: Shaft coupling and stern tube sealing flanges.

Subsea Pipelines: High-integrity connections for subsea tie-ins.

Chemical Tankers: Resistant to aggressive chemical cargo and seawater.

Desalination Brine Outfalls: Handles abrasive, high-salinity effluent streams.

Enquire Now

Why Choose Solitaire Overseas for S32760 Flanges?

We manufacture UNS S32760 flanges with strict compliance to NORSOK and offshore specifications. Our testing protocols include ferrite content measurement, impact testing at sub-zero temperatures, and full 3.2 certification when required. With global export experience, we cater to major offshore contractors and shipyards with timely supply and project-specific documentation.

Get a Quote for UNS S32760 Flanges

Ready to place an order or have a question about our products? Contact us today to get the best price for Super Duplex UNS S32760 Flanges. Our team of experts is ready to assist you with your inquiries and provide a detailed quotation tailored to your needs.

Enquire Now
