Super Duplex UNS S32760 Fittings Manufacturer, Supplier & Exporter

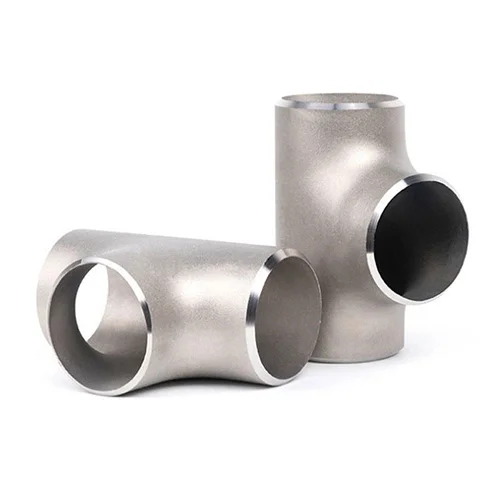

Super Duplex UNS S32760 buttweld fittings

Solitaire Overseas is a globally recognized manufacturer, supplier, and exporter of premium UNS S32760 Fittings. We specialize in producing ASTM A815 S32760 Fittings that are a step above standard duplex grades, engineered to handle the most severe and aggressive corrosive media. Our extensive product line, including S32760 Buttweld fittings and S32760 Forged fittings, adheres to stringent international standards such as ASME B16.9 and MSS SP-43. Our commitment to quality ensures our products provide exceptional performance, delivering superior strength and an ideal blend of toughness and corrosion resistance.

Enquire Now

What are Super Duplex UNS S32760 Fittings?

UNS S32760 is a highly-alloyed super duplex stainless steel known for its exceptional properties. This material's dual-phase (austenitic-ferritic) microstructure, combined with a higher content of chromium, molybdenum, tungsten, and nitrogen compared to other duplex grades, gives it superior resistance to a wide range of corrosive attacks. These Super Duplex S32760 fittings are also known as Super Duplex 2507 fittings.

Super Duplex UNS S32760 Fittings are characterized by:

Superior Corrosion Resistance: Excellent resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. The high alloy content makes it a top choice for environments where standard duplex steels would fail.
High Mechanical Strength: With a tensile strength and yield strength significantly higher than standard austenitic stainless steels, these fittings are ideal for high-pressure and structural applications, allowing for thinner wall sections and reduced weight.
Excellent Weldability: The material is designed for reliable welding, ensuring the integrity and longevity of the entire piping system.
Versatility: UNS S32760 Fittings maintain their strength and ductility at both ambient and sub-zero temperatures, making them suitable for a wide variety of industrial applications.

Super Duplex UNS S32760 Fittings Specifications

We manufacture and stock Super Duplex S32760 Fittings to a wide range of specifications to meet diverse project requirements.

Standard Specifications	Details
Grade	ASTM A815 WPS S32760 / ASME SA815
Material Equivalent	Werkstoff Nr. 1.4410, F55, Zeron 100
Manufacturing Standards	ASME B16.9, ASME B16.28, MSS SP-43, BS, DIN, JIS
Type of Fittings	S32760 Buttweld fittings, S32760 Forged fittings, UNS S32760 seamless fittings, Welded, Fabricated, ERW
Buttweld Size Range	Seamless: 1/2" NB to 10" NB <br> Welded: 1/2" NB to 48" NB
Wall Thickness	SCH 5S, SCH 10S, SCH 20, STD, SCH 40, XS, SCH 80, XXS, SCH 160
Pressure Ratings	Threaded Fittings: 2000LBS, 3000LBS, 6000LBS <br> Socket Weld Fittings: 3000LBS, 6000LBS, 9000LBS
Elbow Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Certifications	EN 10204/3.1B, NACE MR 01-75, 100% Radiography Test Report, Third Party Inspection

Chemical Composition of Super Duplex UNS S32760 Fittings

The chemical composition of UNS S32760 Fittings is precisely balanced to ensure optimal performance, particularly its high Pitting Resistance Equivalent Number (PREN) of >40.

Element	Weight %
Carbon (C)	≤ 0.030
Chromium (Cr)	24.0 - 26.0
Nickel (Ni)	6.0 - 8.0
Molybdenum (Mo)	3.0 - 5.0
Nitrogen (N)	0.24 - 0.32
Manganese (Mn)	≤ 1.20
Silicon (Si)	≤ 0.80
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.020
Tungsten (W)	0.50 - 1.0
Copper (Cu)	0.50 - 1.0

Mechanical Properties of UNS S32760 Fittings

Property	Value
Tensile Strength	800 MPa (116,000 psi) min
Yield Strength (0.2% Offset)	550 MPa (80,000 psi) min
Elongation	15% min
Density	7.8 g/cm³
Melting Point	1350°C

Equivalent Grades of Super Duplex UNS S32760 Fittings

The table below outlines the equivalent grades for UNS S32760, helping to identify comparable materials used in different international standards.

Standard	Werkstoff Nr.	UNS
Super Duplex S32760	1.4410	S32760
Super Duplex F55	1.4501	S32760

Super Duplex Steel Uns S32760 Buttweld Pipe Fittings Dimensions

The provided dimension chart details key measurements for various buttweld fittings based on their nominal pipe size.

Nominal Pipe Size (inch)	Outside Diameter (mm)	Caps Length (inch)	Straight Tees Center to End (inch)	Straight Crosses Center to End (inch)	Stub End Lap Diameter (inch)	Stub End Short Length (inch)
1/2	21.3	1	1	1	–	3
1	33.4	1.5	1.5	1.5	2	4
2	60.3	1.5	2.5	2.5	3 5/8	6
3	88.9	2	3 3/8	3 3/8	5	6
4	114.3	2.5	4 1/8	4 1/8	6 3/16	6
6	168.3	3.5	5 5/8	5 5/8	8 1/2	8
8	219.1	4	7	7	10 5/8	8
10	273.1	5	8 1/2	8 1/2	12 3/4	10
12	323.9	6	10	10	15	10

Duplex Steel UNS S32760 Buttweld Pipe Fittings Weight Chart

The weight chart provides approximate weights for different types of buttweld fittings in various schedules. The weights are listed in a table format with categories for Schedule 10S, Schedule 40S, and Schedule 80S.

DN	Schedule 10S (kg)	Schedule 40S (kg)	Schedule 80S (kg)
90° Elbow	90° Elbow	90° Elbow
15	0.06	0.08	0.10
25	0.14	0.15	0.22
50	0.50	0.70	0.91
100	2.10	4.47	6.18
150	5.45	10.89	16.32
200	10.20	21.54	33.11
300	25.80	59.42	79.38

Types of Super Duplex S32760 Fittings

Our comprehensive product line includes a wide variety of UNS S32760 Fittings manufactured to meet high-pressure and high-corrosion requirements. These fittings are available in multiple types, including forged, socket weld, and threaded.

Super Duplex S32760 Forged 90 Degree Elbow
ASTM A182 Gr S32760 Forged Screwed Union
A182 Grade F55 Forged Threaded Busing
UNS S32760 High Pressure Forged Fittings
Super Duplex Steel 1.4501 Forged Equal Cross
S32760 Super Duplex Steel Forged Screwed Reducer Insert
Super Duplex Steel UNS S32760 Forged Square Head Plugs
Super Duplex Steel UNS S32760 Socket Weld Coupling
ASTM A182 Super Duplex S32760 Socket Weld Tee
S32760 Ferritic Super Duplex Steel Socket weld Boss
S32760 Super Duplex Steel Socket Weld 45 Deg Elbow
UNS S32760 Super Duplex Steel Threaded Pipe Cap
Super Duplex UNS S32760 NPT Threaded Fittings
Super Duplex Steel A182 S32760 Screwed Coupling
ASTM A182 S32760 Super Duplex Steel Square Plug
Super Duplex Steel 1.4501 Screwed Pipe Cap
Super Duplex Steel ASTM A182 F55 NPT Threaded Tee
SDSS S32760 BSP Threaded Elbow Stockist
ASTM SA182 Super Duplex S32760 Full Coupling

Applications of Super Duplex S32760 Fittings

The robust properties of UNS S32760 Fittings make them a top choice for critical applications in highly corrosive and demanding environments.

Chrome Moly Tubes in various Application Industries

Offshore Production Platforms: High-strength elbows and tees for riser and topside piping.

Subsea Systems: Long-radius bends and forged fittings for tie-in spools.

Marine Propeller Shaft Lines: Corrosion-fatigue-resistant couplings and adaptors.

Chemical Tanker Piping: Highly resistant to mixed cargo residues and seawater.

RO Desalination Concentrate Lines: Withstands high-velocity, abrasive brine discharge.

Enquire Now

Why Choose Solitaire Overseas for Super Duplex S32760 Fittings?

Our UNS S32760 fittings are manufactured with strict ferrite control and solution annealing to meet the highest offshore and marine classification standards. We provide 100% traceable MTCs, NACE MR0175 compliance, and custom radius elbows for tight space installations. With an established track record in offshore EPC supply, we are a trusted partner for time-critical and high-specification projects.
