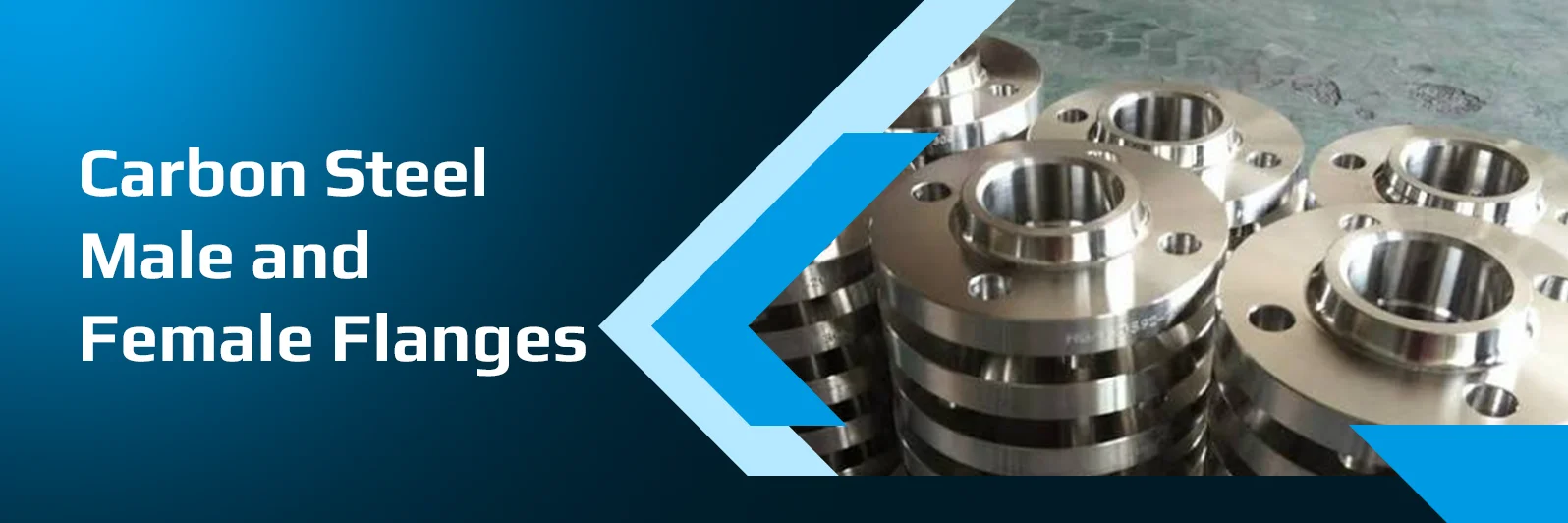

Carbon Steel Male and Female Flanges
Carbon steel male and female flanges are always bought in twos. On the one hand, we have a flange with a raised face that protrudes approximately 1/4 of an inch above the surface, leading to the other type which has a recess of about 3/16 of an inch away. Hence, the gap between the recess is where the gasket goes into so that when bolts are tightened, the gasket does not fail. Most of the ones we supply are forged from ASTM A105, or A350 LF2 where the line runs cold, and they are machined to the facing dimensions in ASME B16.5.
Solitaire Overseas is an exporter and stockist of carbon steel flanges, pipes, and fittings. Each flange we sell has an EN 10204 3.1 certificate attached tracing back to the heat. If demanded by the customer, third party inspections are in place.
Technical Data
Carbon Steel Male And Female Flange Specification
| Parameter | Detail |
|---|---|
|
Product |
Carbon steel male and female flanges, supplied as matched pairs |
|
Dimensional standard |
ASME B16.5 (NPS 1/2" to 24"); larger sizes to ASME B16.47 or drawing |
|
Materials |
ASTM A105, ASTM A350 LF2, ASTM A694 F52 to F70 |
|
Pressure class |
150, 300, 600, 900, 1500, 2500 |
|
Flange types |
Weld neck, slip on, blind, socket weld, threaded |
|
Face |
Large or small male and female |
|
Gasket face finish |
Small male and female: 3.2 µm Ra (125 µin) max per B16.5; others to order |
|
Testing |
Chemical, tensile, hardness, impact (LF2), ultrasonic on request |
|
Certification |
EN 10204 3.1; 3.2 with third party inspection on request |
Chemical Composition of Carbon Steel Male And Female Flange
| Element (%) | ASTM A105 | ASTM A350 LF2 |
|---|---|---|
|
Carbon, max |
0.35 |
0.30 |
|
Manganese |
0.60 to 1.05 |
0.60 to 1.35 |
|
Phosphorus, max |
0.035 |
0.035 |
|
Sulphur, max |
0.040 |
0.040 |
|
Silicon |
0.10 to 0.35 |
0.15 to 0.30 |
|
Copper, max |
0.40 |
0.40 |
|
Nickel, max |
0.40 |
0.40 |
|
Chromium, max |
0.30 |
0.30 |
|
Molybdenum, max |
0.12 |
0.12 |
|
Vanadium, max |
0.08 |
0.08 |
|
Niobium, max |
Not specified |
0.02 |
Carbon Steel Male And Female Flange Mechanical Properties
| Grade | Tensile strength (MPa) | Yield strength, min (MPa) | Elongation, min (%) | Hardness, max | Impact test |
|---|---|---|---|---|---|
|
ASTM A105 |
485 min |
250 |
30 |
187 HB |
Not required |
|
ASTM A350 LF2 Class 1 |
485 to 655 |
250 |
22 |
197 HB |
20 J average, 16 J single, at minus 46°C |
|
ASTM A694 F52 |
455 min |
360 |
20 |
Not specified |
By agreement |
|
ASTM A694 F60 |
515 min |
415 |
20 |
Not specified |
By agreement |
|
ASTM A694 F65 |
530 min |
450 |
20 |
Not specified |
By agreement |
|
ASTM A694 F70 |
565 min |
485 |
18 |
Not specified |
By agreement |
Male and Female Type Flange Pressure Rating Chart
| Temperature C | Class 150 page | Class 150 correct | Class 300 page | Class 300 correct |
|---|---|---|---|---|
|
-29 to 38 |
19.8 |
19.6 |
51.7 |
51.0 |
|
50 |
19.5 |
19.2 |
51.7 |
50.1 |
|
100 |
17.7 |
17.7 |
51.5 |
46.6 |
|
150 |
15.8 |
15.8 |
50.2 |
45.1 |
|
200 |
13.8 |
13.8 |
48.6 |
43.8 |
|
250 |
12.1 |
12.1 |
46.3 |
41.9 |
|
300 |
10.2 |
10.2 |
42.9 |
39.8 |
|
325 |
9.3 |
9.3 |
41.4 |
38.7 |
|
350 |
8.4 |
8.4 |
40.0 |
37.6 |
|
375 |
7.4 |
7.4 |
37.8 |
36.4 |
Types Of Male & Female Flanges

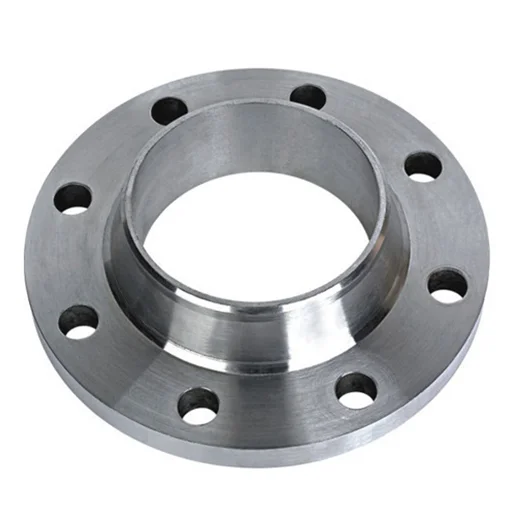

Raised Face, ASME B16.5 Male and Female Flange

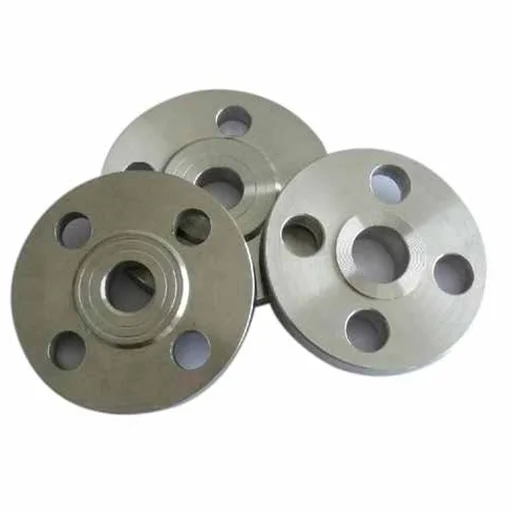

Male Female Joint Flange For For Lower Pressure Applications

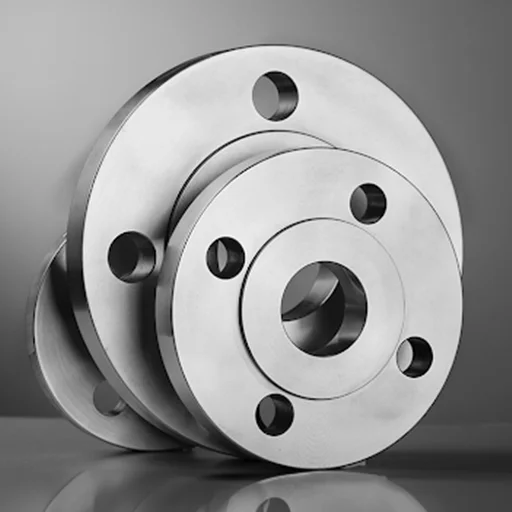

BS4504, DN80, Carbon Steel Small Male And Female Flanges

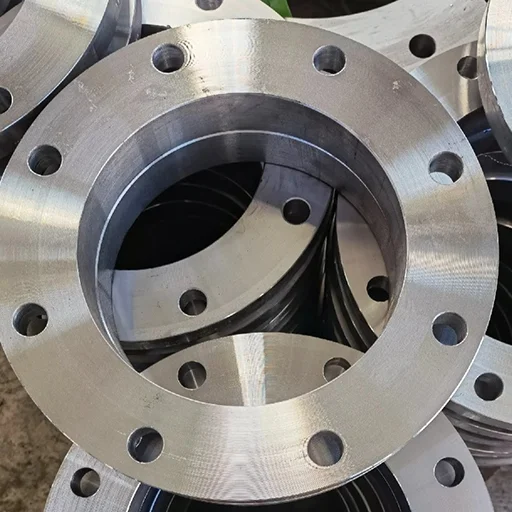

ASTM A105, Forged, Small Male Female Flange For End Connection

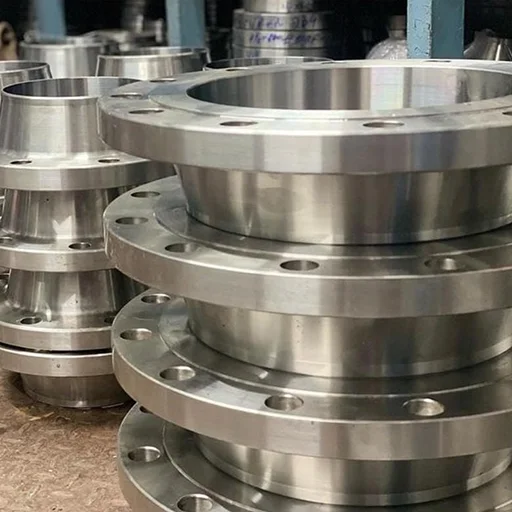

A182 F316L, DN200, Alloy Steel Small Male And Female Flanges

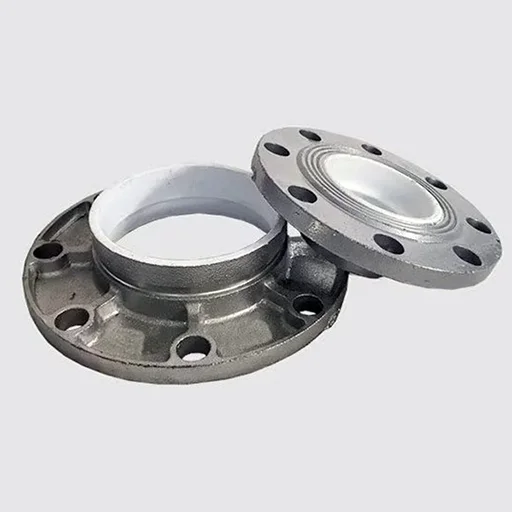

20 inch, DN 450, 300LB, PN 20, Male Female Gasket Flanges
 Face Flanges.webp)

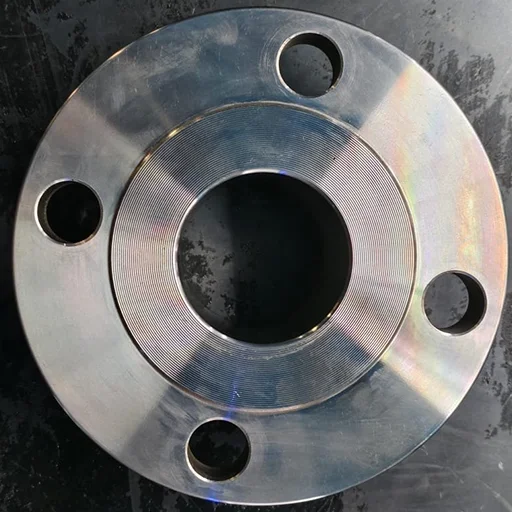

12 Inch, A182 F304L STD Bore, Male-female (M_f) Face Flanges

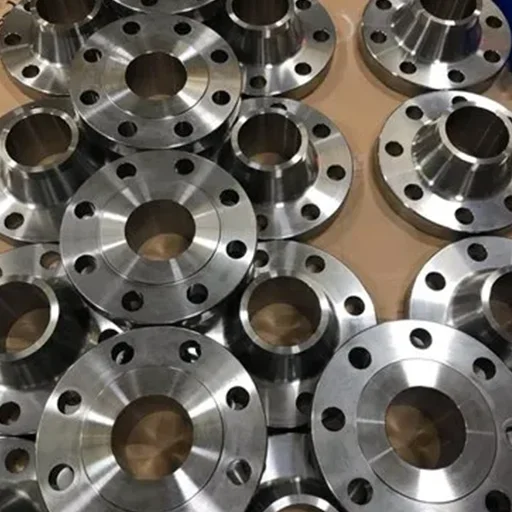

10 Inch PN16, 150 LB, Male And Female Facing Flanges

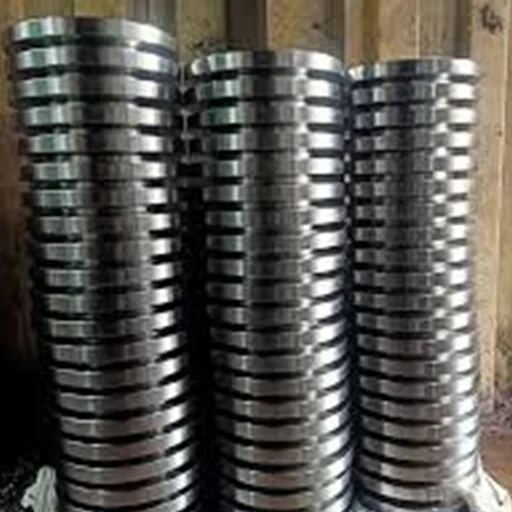

8 Inch, RF, Stainless Steel Male And Female Flanges
4 Inch, ASTM A105, BS 3293, Male Female Flanges

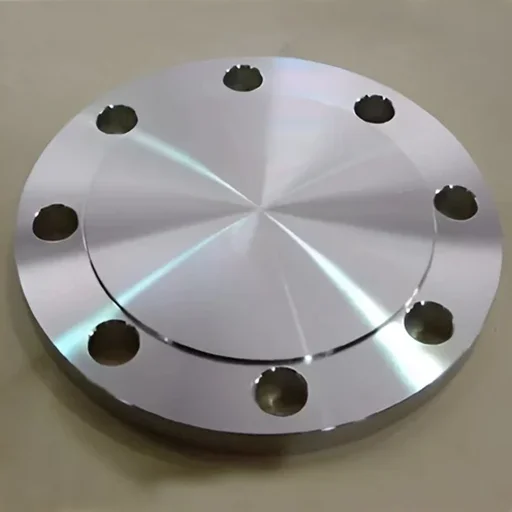

3 Inch, Male Female Pipe Flanges For Long Service Life
Applications of Male and Female Carbon Steel Flanges
- Oil and Gas Industry: Used in oil refineries, gas pipelines, and offshore drilling systems.
- Petrochemical Industry: Ideal for chemical processing plants, pressure vessels, and fluid handling systems.
- Water Treatment Plants: Utility and cooling water lines.
- Heat Exchangers: Shell to channel and cover joints where the gasket must stay put under bolt load.
- Pumps and Vessels: Nozzle and cover connections where a confined gasket prevents blowout.
- Power Generation: Suitable for boilers, steam pipelines, and thermal power plants.
- Chemical Industry: Process lines carrying non corrosive hydrocarbons and utility fluids.
- Pharmaceutical Industry: Used in process piping systems requiring secure, leak-resistant connections.
Frequently Asked Questions
It is a matched flange pair. One has a raised male face, the other a female recess. The male fits into the recess and holds the gasket in place.
Male and female confines the gasket on its outer edge only. Tongue and groove confines it on both edges, with a narrower gasket.
No. A male face must mate with a female face. Two male or two female flanges will not seal properly.
A flat gasket sized to the female recess, usually compressed fibre, PTFE or spiral wound without an outer ring, chosen for the fluid and temperature.
ASME B16.5 gives the facing dimensions for NPS 1/2" to 24". Larger sizes are made to ASME B16.47 flange dimensions or to drawing.
The male face projects 0.25 in (6.4 mm). The female recess is 0.19 in (4.8 mm) deep, per ASME B16.5.
ASTM A105 for general service, A350 LF2 for low temperature service down to minus 46°C, and A694 F52 to F70 for high yield pipelines.
Size, class, flange type, large or small face, grade, pipe schedule, how many male and how many female, and the certificate required.
Talk to Solitaire Overseas
We check every male and female pair for fit before dispatch and supply mill test certificates with each heat. Read ourQuality Policy, view ourCertificates, or browse the full range ofCarbon Steel Flanges.
