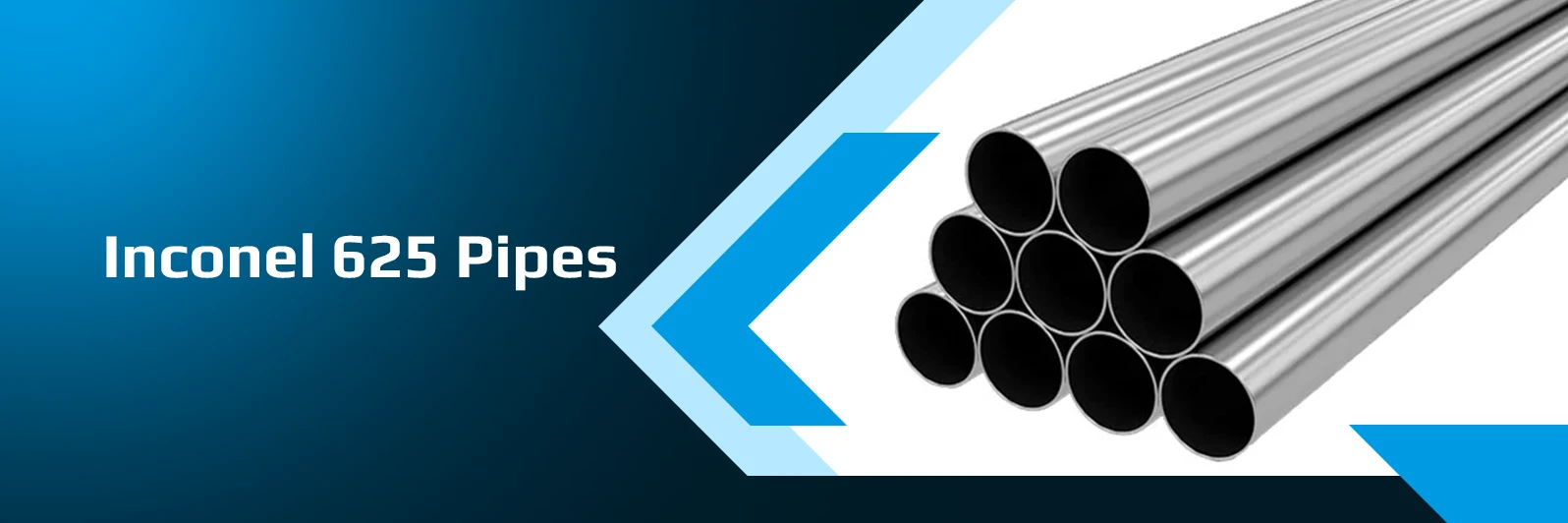

Inconel 625 Pipes

Inconel 625 Pipe is a nickel chromium superalloy pipe that consists of at least 58% nickel and 20% chromium and controlled quantities of carbon, manganese, silicon, iron, sulfur, aluminum and titanium. This material has a great resistance to corrosion, oxidation and high temperatures. The material has a minimum yield strength of 517 Mpa and minimum tensile strength of 930 Mpa and this puts the material in the position to be used in industrious applications.

Inconel 625 Pipe is popular in high-stress services due to its high level of strength and stability even at high temperatures. It is particularly very effective in heat exchangers, condensers, boiler sections and other instruments that are subjected to high heat and pressure. The pipes and tubes are made according to ASTM B167, ASTM B829 and ASTM B517 specifications with sizes that follow ASTM, ASME and API.

Alloy 625 seamless tubing comes in size options of between 4mm to 219mm. Besides seamless pipes, there are also welded, fabricated, LSAW, ERW and EFW products. Welded and EFW pipes are made with a range of 5 mm to 1219.2 mm. Inconel 625 seamless pipes are normally available with a wall thickness of 0.5 mm to 20 mm though the pipes of larger diameter are normally provided with schedules

between 5 and 160. These pipes are available in different types, sizes, round and hydraulic, and length type, which include single random, two random and cut-to-length pipes. End finishes available are threaded, beveled and plain end finishes to meet various project requirements.

ASTM B444 UNS N06625 Alloy 625 Pipes Manufacturer, Supplier & Exporters in India

As a leading Inconel 625 Pipe suppliers & manufacturer in India, we provide premium-quality products with full traceability and strict quality assurance. Our pipes undergo rigorous testing, including hydrostatic testing, ultrasonic testing, and third-party inspection to ensure reliability and performance under extreme service conditions.

We supply Inconel 625 Pipes to industries such as oil and gas, petrochemicals, power generation, marine engineering, aerospace, and nuclear sectors. With competitive pricing, customized sizes, and global export capabilities, we ensure timely delivery and consistent product quality for both domestic and international clients.

Contact us to buy Inconel Products

Check price of Inconel Pipes & Inconel Tubes in India

Weight Calculator

Table of Contents

Alloy 625 Pipe Specifications

As leading Inconel 625 pipe manufacturers in India, we adhere to the full Inconel 625 Pipe Specification for our UNS N06625 products.

Specification Details
Material Standards ASTM B167, ASME SB 167 / ASTM B829, ASME SB 829 / ASTM B517, ASME SB 517
Dimensional Standards ASTM, ASME, and API
Seamless 625 Pipe Size 4mm to 219mm (W.T.: 0.5mm to 20mm)
Welded 625 Pipe Size 5.0mm – 1219.2mm
EFW 625 Pipe Size 5.0mm – 1219.2mm
Nominal Bore (NB) 15″ NB TO 150″ NB
Specialized Capability Large Diameter Sizes & Custom Fabrications
Pipe Schedule SCH 5, SCH 10, SCH 40, STD, SCH 80, SCH 160
Manufacturing Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Available Forms Round, Hydraulic, Square, Rectangular
Length Options Single Random, Double Random & Custom Cut Lengths
End Connections Plain End, Beveled End, Threaded

Inconel 625 Pipe Sizes & Weight Chart

WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter

Inconel 625 Pipe OD
mm		 Pipe WT
mm		 in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352) 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

Inconel Din 2.4856 Pipe Composition Composition

Grade C Mn Si Fe S Cr2 Al-Ti Ni
625 min. – – – – – 20.0 – 58.0
max. 0.10 0.50 0.50 5.0 0.015 23.0 0.40 –

ASME SB444 Alloy 625 Pipe Material Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
625 Psi – 1,35,000 , MPa -930 Psi – 75,000 , MPa – 517 42.5 – –

Types of Inconel 625 Pipes

We supply a diverse inventory of Inconel 625 Pipes types to meet any application, including Inconel 625 seamless pipe and specialty forms.

Inconel 625 Seamless Pipe
Inconel 625 Seamless Pipe
Inconel 625 Welded Pipes
Inconel 625 Welded Pipes
Inconel 625 ERW Pipe
Inconel 625 ERW Pipe
Inconel 625 EFW Pipe
Inconel 625 EFW Pipe
Inconel 625 Round Pipes
Inconel 625 Round Pipes
Inconel 625 Square Pipes
Inconel 625 Square Pipes
Inconel 625 Rectangular Pipes
Inconel 625 Rectangular Pipes
Inconel 625 Hollow Pipes
Inconel 625 Hollow Pipes
Inconel 625 Capillary Pipes
Inconel 625 Capillary Pipes
Inconel 625 Annealed Pipe
Inconel 625 Annealed Pipe
Inconel 625 Cold-worked Pipe
Inconel 625 Cold-worked Pipe
Inconel 625 Hot Finished Pipe
Inconel 625 Hot Finished Pipe
Inconel 625 Clad Pipe
Inconel 625 Clad Pipe

Equivalent Grades of ASTM B444 UNS N06625 Pipe

STANDARD WNR Material Number JIS EN BS UNS AFNOR GOST
625 2.4856 NCF 625 NiCr22Mo9Nb NA 21 N06625 NC22DNB4M ХН75МБТЮ

Inconel 625 Round Pipe Weight Chart

NPS Outside Diameter Wall Thickness   Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
      0.147 3.734 80 STD 1.621 1.088
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
      0.154 3.912 80 STD 2.195 1.474
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
      0.179 4.547 80 STD 3.325 2.172
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
      0.191 4.851 80 STD 4.464 2.997
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
      0.200 5.080 80 STD 5.409 3.361
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
      0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
      0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
      0.300 7.620 80 STD 15.272 10.253
4″ 4.500 114 0.237 6.020   16.073 10.790
      0.337 8.560   22.318 14.983
6″ 6.625 168 0.188 4.775   19.252 12.924
      0.203 5.516   20.739 13.923
      0.219 5.563   22.318 14.983
      0.250 6.350   25.354 17.021
      0.280 7.112 40 STD 58.263 18.974
      0.312 7.925   31.334 21.036
      0.375 9.525   37.285 25.031
      0.432 10.973 80 XHY 42.561 28.573
      0.500 12.700   48.719 32.708
8″ 8.625 219 0.188 4.775   25.233 16.940
      0.203 5.156   27.198 18.259
      0.219 5.563   29.286 19.661
      0.250 6.350 20 33.308 22.361
      0.277 7.036 30 36.786 24.696
      0.322 8.179 40 42.352 28.554
      0.375 9.525   49.216 33.041
      0.406 10.312 60 53.085 35.638
      0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775   31.588 21.207
      0.219 5.563   36.689 24.631
      0.250 6.350 20 41.759 28.035
      0.307 7.798 30 51.002 34.240
      0.344 8.738   56.946 38.231
      0.365 9.271 40 STD 63.301 40.483
      0.438 11.125   71.852 48.238
      0.500 12.700 60 XHY 81.530 54.735
      0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775   37.570 25.222
      0.219 5.563   43.657 29.309
      0.250 6.350   49.713 33.375
      0.281 7.137   55.739 37.420
      0.312 7.925   61.735 41.445
      0.375 9.525   73.824 49.562
      0.406 10.312   79.727 53.525
      0.500 12.700   97.438 65.415
      0.562 14.275   108.966 73.154
14″ 14.000 356 0.188 4.775   41.308 27.732
      0.219 5.563   48.012 32.233
      0.250 6.350 20 54.685 36.713
      0.281 7.137   61.327 41.172
      0.312 7.925   67.939 45.611
      0.375 9.525 STD 81.281 54.568
      0.438 11.125 40 94.498 63.441
      0.500 12.700 XHY 107.381 72.090
      0.625 15.875   132.983 89.278
16” 16.000 406 0.188 4.775   47.290 21.748
      0.219 5.563   54.980 36.910
      0.250 6.350 10 62.639 42.053
      0.281 7.137   70.268 47.174
      0.312 7.925 20 77.866 52.275
      0.344 8.738   85.677 57.519
      0.375 9.525 30 STD 93.213 62.578
      0.438 11.125   108.433 72.797
      0.500 12.700 40 XHY 123.289 82.770
18″ 18.000 457 0.219 5.563   61.948 41.588
      0.250 6.350   70.593 47.393
      0.281 7.137   79.208 53.176
      0.312 7.925 20 87.792 58.939
      0.375 9.525 STD 105.144 70.588
      0.438 11.125 30 122.369 82.152
      0.500 12.700 XHY 139.198 93.450
      0.562 14.275 40 155.904 104.666
      0.625 15.875   172.754 115.978
20″ 20.000 508 0.250 6.350   78.547 52.733
      0.282 7.163   88.458 59.386
      0.312 7.925   97.719 65.604
      0.375 9.525 20 STD 117.075 78.598
      0.438 11.125   136.305 91.508
      0.500 12.700 30 XHY 155.106 104.130
      0.594 15.088 40 183.378 123.110
      0.625 15.875   192.640 129.328
      0.688 17.475   211.368 141.901
24″ 24.000 610 0.250 6.350   94.456 63.413
      0.281 7.137   106.029 71.183
      0.312 7.925   117.573 18.932
      0.375 9.525 20 STD 140.938 64.618
      0.438 11.125   164.176 110.219
      0.500 12.700 XHY 186.923 125.490
      0.625 15.875   232.410 156.028
      0.688 17.475 40 255.148 171.293
      0.750 19.050   277.401 186.233
30″ 30.000 762 0.250 6.350   118.318 79.433
      0.281 7.137   132.851 89.189
      0.312 7.925 10 147.353 98.925
      0.375 9.525 STD 176.731 118.648
      0.438 11.125   205.983 138.286
      0.500 12.700 20 XHY 234.647 157.530
      0.625 15.875 30 292.066 196.078
      0.688 17.475   320.817 215.380
      0.750 19.050   348.988 234.293
36″ 36.000 914 0.250 6.350   142.180 95.453
      0.281 7.137   159.672 107.196
      0.312 7.925 10 177.133 118.918
      0.375 9.525 STD 215.525 142.678
      0.438 11.125   247.790 166.353
      0.500 12.700 20 XHY 282.372 198.570
      0.625 15.875   351.723 236.128
      0.688 17.475   386.487 259.467
      0.750 19.050   420.576 282.353
42″ 42.000 1067 0.312 7.925   206.914 138.911
      0.375 9.525 STD 248.319 166.708
      0.500 12.700 XHY 33.097 221.610
      0.750 19.050   492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
      0.438 11.125   331.404 222.487
      0.500 12.700 XHY 377.822 253.650
      0.750 19.050   563.750 378.473
      0.875 22.225   655.969 440.383

Applications of Inconel 625 Pipes

  • Marine Engineering: Sea-water components and flare stacks.
  • Aerospace: Engine exhaust systems and fuel line tubing.
  • Chemical Processing: Equipment handling highly acidic or oxidizing media.
  • Nuclear Power: Reactor core and control rod components.
  • Oil & Gas: Sour gas production tubes and offshore platform piping.

Price list of Alloy 625 Pipes

Precise Inconel 625 Pipe dimensions are critical; this schedule details the nominal thickness for our UNS N06625 pipes.

Item Description Price in INR Price in UAE Dirham (AED)
Inconel 625 Seamless Pipe (1/4 X SCH80) ₹58,562 3,024 AED
Inconel 625 Welded Pipe (Z=1, ASTM B705) ₹323,382 16,700 AED
Inconel 625 Smls Pipe (73.02mm OD x 3.2mm Thk) ₹65,097 3,362 AED

Note: Prices are subject to market fluctuations. Contact us for the latest rates.
