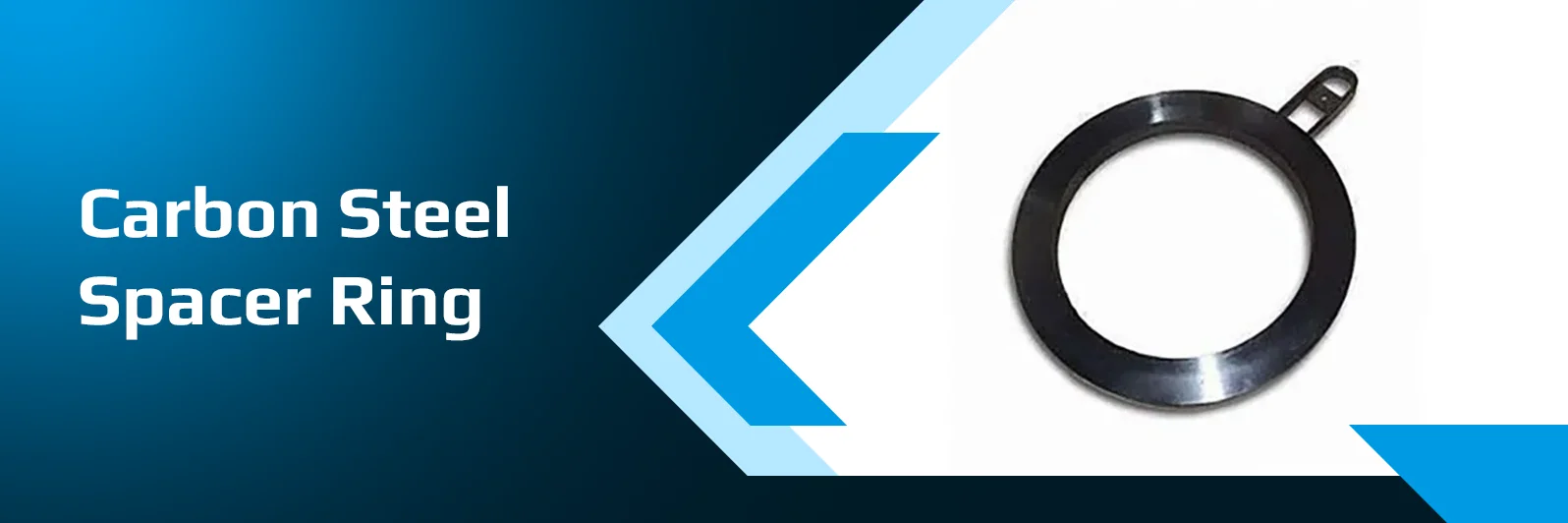

Carbon Steel Spacer Ring
A carbon steel spacer ring is an overlooked component that has been part of the assembly for most of its existence. It resembles a steel ring with a handle and has a thickness and outer diameter similar to that of a spade, but with a hole in the middle to accommodate a pipe bore. During the operation of the plant, the spacer ring is located in a joint, where the flow travels undisturbed. When the line needs blanking, the ring comes out and a spade goes in, and because both are the same thickness the bolts and pipe stay exactly where they were. Solitaire Overseas is a trusted supplier and exporter of industrial piping materials, including stainless steel, carbon steel, alloy steel, and pipe fittings for diverse industrial applications. Ours are usually cut from A516 Grade 70 plate or forged from A105, sized to ASME B16.48.
Technical Data
Carbon Steel Ring Spacer Flange Specifications
| Parameter | Detail |
|---|---|
|
Product |
Carbon steel spacer rings, alone or as spade and spacer sets |
|
Dimensional standard |
ASME B16.48 (NPS 1/2 to 24); mating flanges to ASME B16.5 |
|
Materials |
ASTM A516 Gr 70 plate, A105, A350 LF2, A694 |
|
Pressure class |
150, 300, 400, 600, 900, 1500, 2500 |
|
Facing |
Raised face, flat face or ring type joint |
|
Coating |
Rust preventive oil, zinc plating or galvanising on request |
|
Certification |
EN 10204 3.1; 3.2 with third party inspection on request |
|
Marking |
Size, class, grade and heat number on the handle |
Chemical Composition of Carbon Steel Spacer Ring Flanges
| Element (%) | ASTM A105 | ASTM A350 LF2 | ASTM A516 Gr 70 |
|---|---|---|---|
|
Carbon, max |
0.35 |
0.30 |
0.27 to 0.31 |
|
Manganese |
0.60 to 1.05 |
0.60 to 1.35 |
0.85 to 1.20 |
|
Phosphorus, max |
0.035 |
0.035 |
0.025 |
|
Sulphur, max |
0.040 |
0.040 |
0.025 |
|
Silicon |
0.10 to 0.35 |
0.15 to 0.30 |
0.15 to 0.40 |
ASTM A694 is a property based specification. Its chemistry is confirmed per heat on the mill test certificate, so no composition row is shown.
Mechanical Properties of Carbon Steel Spacer Rings
| Grade | Tensile strength (MPa) | Yield strength, min (MPa) | Elongation, min (%) | Hardness, max | Impact test |
|---|---|---|---|---|---|
|
ASTM A516 Grade 70 plate |
485 to 620 |
260 |
21 (in 50 mm) |
Not specified |
By supplementary requirement |
|
ASTM A105 |
485 min |
250 |
30 |
187 HB |
Not required |
|
ASTM A350 LF2 Class 1 |
485 to 655 |
250 |
22 |
197 HB |
20 J average, 16 J single, at minus 46°C |
|
ASTM A694 F52 |
455 min |
360 |
20 |
Not specified |
By agreement |
|
ASTM A694 F60 |
515 min |
415 |
20 |
Not specified |
By agreement |
Spacer Carbon Steel Ring Dimensions
ASME B16.48 gives the spacer ring the same outside diameter and thickness as the matching spade, with a bore close to the pipe outside diameter. The tables below are for raised or flat face flanges; ring type joint versions differ.
ASME B16.48 Class 150 Spacer Ring (mm)
| NPS | Outside dia. A | Inside dia. B | Thickness t | Handle width W |
|---|---|---|---|---|
|
1/2" |
45 |
16 |
3.0 |
32 |
|
3/4" |
54 |
21 |
3.0 |
32 |
|
1" |
64 |
27 |
3.0 |
32 |
|
1 1/4" |
73 |
42 |
6.4 |
32 |
|
1 1/2" |
83 |
48 |
6.4 |
32 |
|
2" |
102 |
61 |
6.4 |
32 |
|
2 1/2" |
107 |
73 |
6.4 |
32 |
|
3" |
133 |
89 |
6.4 |
32 |
|
3 1/2" |
159 |
102 |
9.7 |
38 |
|
4" |
172 |
114 |
9.7 |
38 |
|
5" |
194 |
141 |
9.7 |
38 |
|
6" |
219 |
168 |
12.7 |
38 |
|
8" |
276 |
219 |
12.7 |
38 |
|
10" |
337 |
273 |
15.7 |
44 |
|
12" |
406 |
324 |
19.1 |
44 |
|
14" |
448 |
356 |
19.1 |
44 |
|
16" |
511 |
406 |
22.4 |
44 |
|
18" |
546 |
457 |
25.4 |
51 |
|
20" |
603 |
508 |
28.4 |
51 |
|
24" |
714 |
610 |
31.8 |
51 |
ASME B16.48 Class 300 Spacer Ring (mm)
| NPS | Outside dia. A | Inside dia. B | Thickness t | Handle width W |
|---|---|---|---|---|
|
1/2" |
51 |
16 |
6.4 |
32 |
|
3/4" |
64 |
21 |
6.4 |
32 |
|
1" |
70 |
27 |
6.4 |
32 |
|
1 1/4" |
79 |
42 |
6.4 |
32 |
|
1 1/2" |
92 |
48 |
6.4 |
32 |
|
2" |
108 |
61 |
9.7 |
32 |
|
2 1/2" |
127 |
73 |
9.7 |
32 |
|
3" |
146 |
89 |
9.7 |
32 |
|
3 1/2" |
162 |
102 |
12.7 |
38 |
|
4" |
178 |
114 |
12.7 |
38 |
|
5" |
213 |
141 |
15.7 |
38 |
|
6" |
248 |
168 |
15.7 |
38 |
|
8" |
305 |
219 |
22.4 |
38 |
|
10" |
359 |
273 |
25.4 |
44 |
|
12" |
419 |
324 |
28.4 |
44 |
|
14" |
483 |
356 |
31.8 |
44 |
|
16" |
536 |
406 |
38.1 |
44 |
|
18" |
594 |
457 |
41.1 |
51 |
|
20" |
651 |
508 |
44.5 |
51 |
|
24" |
772 |
610 |
50.8 |
51 |
Source: ASME B16.48 tables as published by wermac.org. Class 600 to 2500 supplied to B16.48 on request.
To estimate weights, use ourFlange Weight Calculator.
Applications of CS Spacer Ring Flanges
- Oil and Gas Industry: Carbon Steel Spacer Ring flanges maintain flow in pipelines and support safe isolation during maintenance.
- Refineries and Petrochemical Plants: A Carbon Steel Spacer Ring is used in process piping to switch between open-flow and positive-isolation configurations.
- Pipeline Maintenance: A ring spacer flange allows easy replacement with a spade without changing the bolt spacing.
- Chemical Processing: A carbon steel ring spacer supports reliable flow management in compatible industrial piping systems.
- Industrial Piping: ASME B16.48 spacer ring designs are commonly used in spade and spacer assemblies.
- High-Pressure Systems: A105 spacer ring options suit applications where the specified material and pressure rating meet operating requirements.
For heavy class joints, seeCarbon Steel High Pressure Flanges.
Ready to order?
We supply spacer rings alone or as spade and spacer sets, marked and certified.
Frequently Asked Questions
A carbon steel ring with a handle, fitted between flanges. Its bore matches the pipe so flow passes, and it fills the space a spade would occupy.
A spacer ring is open and lets flow through. A spade is solid and blocks flow. Both have the same thickness.
It stays in the joint during normal running. For isolation it is swapped for a spade, then refitted when work is finished.
ASME B16.48 covers spacer rings, spades and spectacle blinds from NPS 1/2" to 24", Class 150 to 2500.
ASTM A516 Grade 70 plate is most common, with A105, A350 LF2 for low temperature service, and A694 for pipelines.
NPS 1/2" to 24" in Class 150, 300, 600, 900, 1500 and 2500 to ASME B16.48. Larger sizes are made to drawing.
No. A spacer ring keeps the line open. Use a spade or a spectacle blind in its closed position for isolation.
Size, class, facing, grade, service conditions, handle marking, quantity, and whether matching spades are needed.
Talk to Solitaire Overseas
Read ourQuality Policy, view ourCertificates, or browse allCarbon Steel Flanges.
