Stainless Steel 317 Fittings Manufacturer and Exporter
The Stainless Steel 317 Fittings are mainly manufactured from high-strength, high-resistance, excellent corrosion-resistant materials, as they are used in the harsh environment of industry. Stainless steel 317 Fittings are a type of austenitic stainless steel fittings. Chromium, nickel and molybdenum contents are higher in these fittings than other stainless steels. The SS 317 fittings are easily welded, formed and do not sensitize during welding and thermal treatment. They have high tensile strength and stable performance at high temperatures as well. These fittings are manufactured to ASTM A403 / ASME SA403 and ASME B16.9 specifications and come in elbows, tees, reducers, bends, stub ends, etc. Solitaire Overseas is a well-known manufacturer and supplier of high-quality Stainless Steel 317 Fittings, precision-engineered for the chemical processing, petrochemical, marine, power generation and oil and gas industries around the world.
Table of Contents
- Specification of Stainless Steel 317 Fittings
- Chemical Composition of Stainless Steel 317 Fittings
- ASME SA 403 SS 317 Mechanical Properties
- Equivalent Standards of SS 317 Fittings
- Different Types of Stainless Steel 317 Fittings
- Physical Properties of SS 317 Fittings
- Application Industries of Stainless Steel 317 Fittings
- Frequently Asked Questions
- Related Products
Specification of Stainless Steel 317 Fittings
| Parameter | Details |
|---|---|
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 1/8” NB to 48” NB |
| Manufacturing Type | Seamless, Welded (100% X-Ray), Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Schedule/Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
Chemical Composition of Stainless Steel 317 Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.845 min |
ASME SA 403 SS 317 Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 7.9 g/cm³ | 1400 °C (2550 °F) | 75,000 Psi / 515 MPa | 30,000 Psi / 205 MPa | 35% |
Equivalent Standards of SS 317 Fittings
| Standard | Werkstoff Nr. | UNS | JIS (Japan) | EN (Europe) |
|---|---|---|---|---|
| SS 317 | 1.4449 | S31700 | SUS 317 | - |
Different Types of Stainless Steel 317 Fittings
Back Ferrule
Bulkhead Male Connector
Equal Union

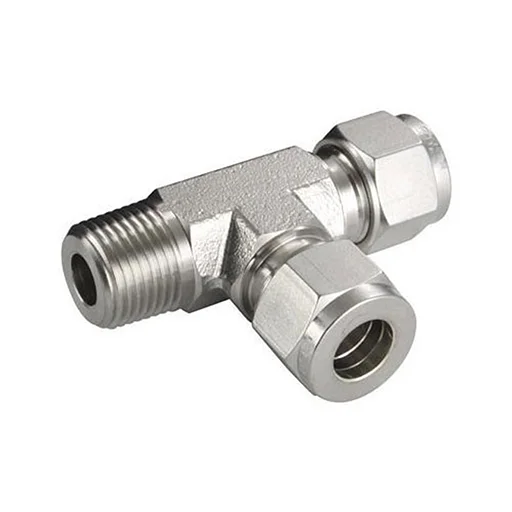

Male Run Tee
Bulkhead Union

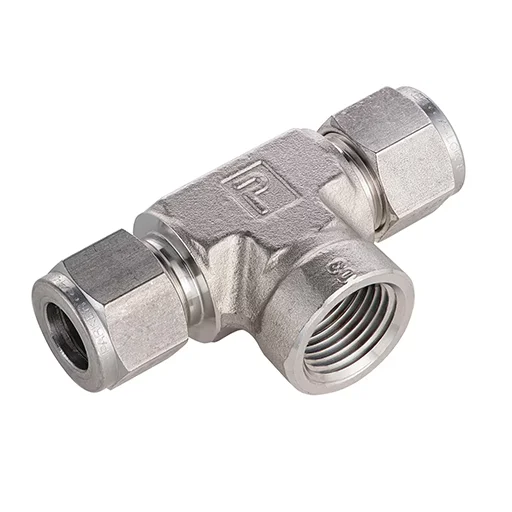

Female Branch Tee
Female Connector
Female Elbow
Female Run Tee

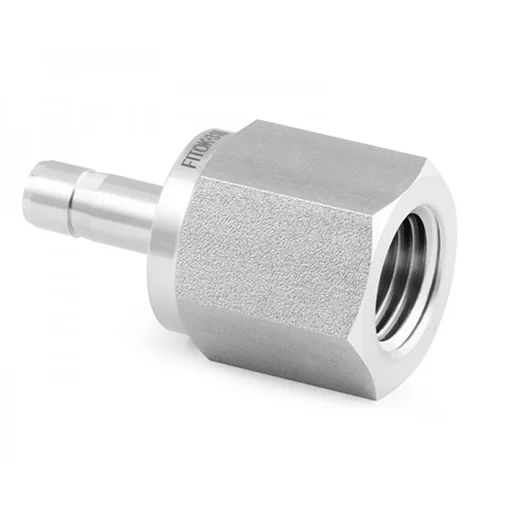

Female Tube Adapter
Front Ferrule
Male Branch Tee

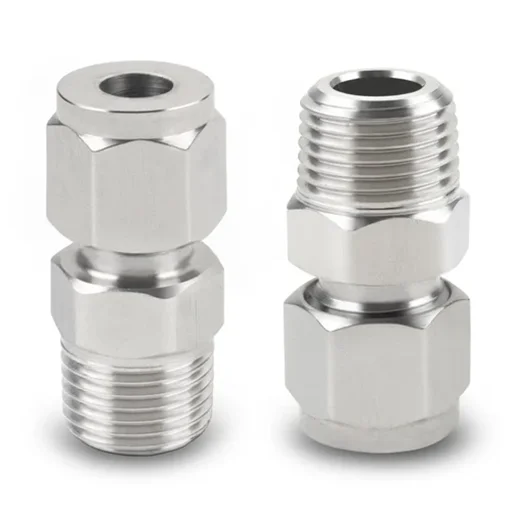

Male Connector

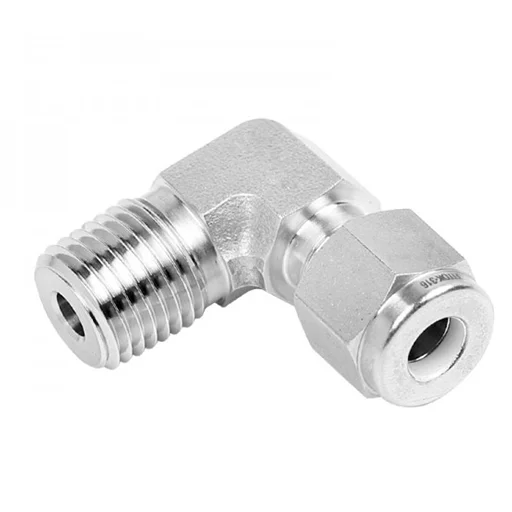

Male Elbow
Male Tube Adapter
Reducing Union
Physical Properties of SS 317 Fittings
| Property | Value |
|---|---|
| Density | 7.99 g/cm³ |
| Specific Heat (0-100°C) | 500 J·kg⁻¹·°K⁻¹ |
| Thermal Conductivity | 14.6 W·m⁻¹·°K⁻¹ |
| Thermal Expansion | 16.5 μm/m/°C |
| Modulus of Elasticity | 193 GPa |
| Electrical Resistivity | 74.0 μΩ·cm |
Application Industries of Stainless Steel 317 Fittings
Our Stainless Steel 317/317L Forged Fittings are used in a wide range of applications and various industries. Below are a few of them:
- Petrochemical Industry
- Oil and Gas Industry
- Chemical Industry
- Power Plant Industry
- Energy Industry
- Pharmaceuticals Industry
- Pulp & Paper Industry
- Food Processing Industry
- Aerospace Industry
- Refining Industry
Frequently Asked Questions
Stainless Steel 317 Fittings are corrosion-resistant pipe fittings used in chemical, marine, and high-temperature applications.
SS 317L has lower carbon content than SS 317, which improves weldability and reduces carbide precipitation.
Yes, Stainless Steel 317 offers excellent resistance to pitting, crevice corrosion, and chemical attack.
ASTM A403 WP317 is the standard specification for wrought stainless steel 317 buttweld pipe fittings.
Yes, SS 317 fittings provide good strength and oxidation resistance at elevated temperatures.
Request a Quote for Stainless Steel 317 Fittings
Share your specification and quantity. Our team will respond with pricing, availability, testing options, and export documentation within 24 hours.
