ASTM A694 F50 Flanges Manufacturer and Supplier in India
ASTM A694 F50 Forged Steel Flanges are forged steel pipe parts that are utilized in the transmission systems where reliability in strength and pressure resistance are crucial. Grade F50 is produced to meet ASTM A694/A694M material requirements and is intended for use in aforementioned specified oil and gas pipelines, petrochemical plants and industrial distribution systems that require a minimum yield of 50 ksi (345 MPa). Based on the project needs and applicable dimensional standards, the flanges can be provided in various configurations, sizes, pressure classes and facing arrangements. Tests such as chemical composition verification, mechanical testing and dimensional inspection are used to assist in ensuring the required material grade and purchase order is met. Solitaire Overseas is a trusted manufacturer and supplier of ASTM A694 F50 Flanges in India, and we provide delivery to domestic and overseas industrial customers.
Technical Data
Specifications of ASTM A694 F50 Flanges
| Property / Parameter | Specification / Standard |
|---|---|
| Standard Specification | ASTM A694 / ASME SA694 |
| Grade Designation | Grade F50 |
| Dimensional Standards | ASME B16.5, ASME B16.47 Series A & B, MSS SP-44 |
| Size Range | 1/2" to 24" (ASME B16.5), 26" to 48" and larger (ASME B16.47) |
| Pressure Classes | Class 150, 300, 400, 600, 900, 1500, 2500 |
| Heat Treatment Condition | Normalizing, Quenching and Tempering |
| Flange Facings | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
| Temperature Range | -29°C to +427°C (-20°F to +800°F) typical |
Chemical Compositions of ASTM A694 F50 Flanges
| Element | Composition Limit (%) |
|---|---|
| Carbon (C) | ≤ 0.30 |
| Manganese (Mn) | ≤ 1.60 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.025 |
| Silicon (Si) | 0.15 – 0.35 |
ASTM A694 F50 Flanges Mechanical Properties
| Property | Minimum Requirement |
|---|---|
| Yield Strength (0.2% offset) | 345 MPa / 50 ksi |
| Tensile Strength | 440 MPa / 64 ksi |
| Elongation (in 2 inches / 50 mm) | 20% |
Physical Properties of ASTM A694 F50 Flanges
| Property | Typical Value |
|---|---|
| Density | 7.85 g/cm³ |
| Elastic Modulus | 190 – 210 GPa |
| Thermal Conductivity | ~45 W/m·K |
| Melting Range | 1425 – 1540 °C |
Pressure and Temperature Rating of ASTM A694 F50 Flanges
| Temperature (°F) | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
|---|---|---|---|---|---|---|---|
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
Different Types of ASTM A694 F50 Flanges

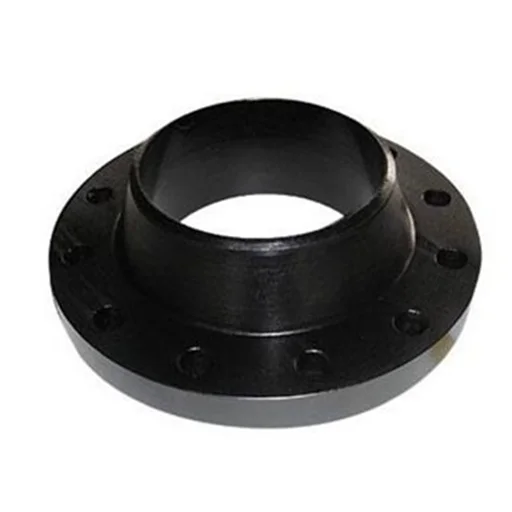

A694 F50 Weld Neck Flanges Supplier/ WNRF

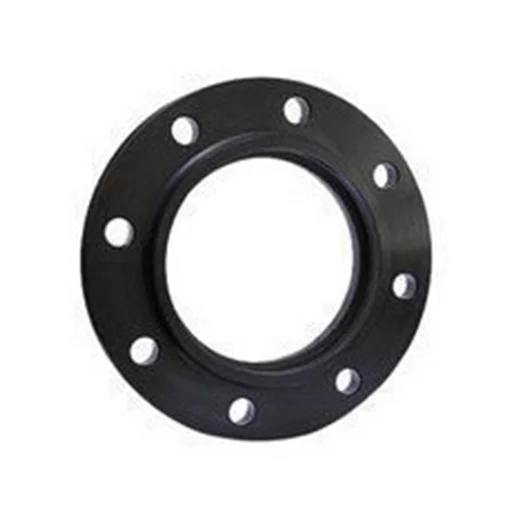

Stockist of A694 F50 Plate Flanges

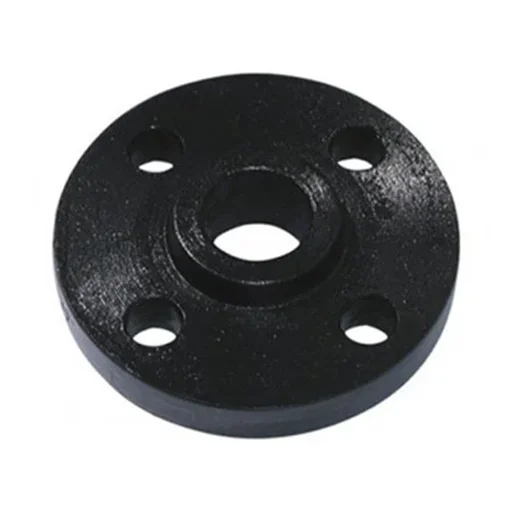

A694 F50 Slip On Flanges Distributor/ SORF

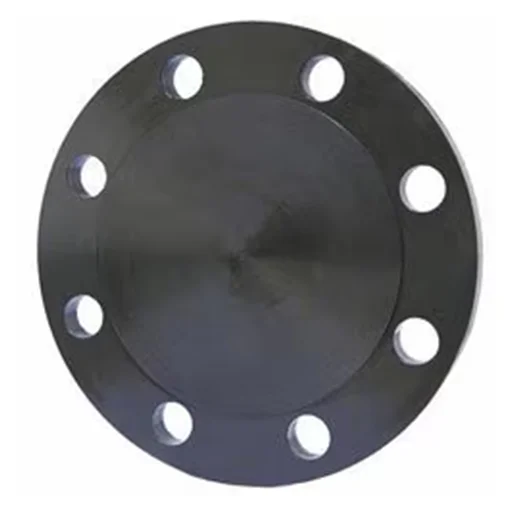

Exporter of A694 F50 Blind Flanges

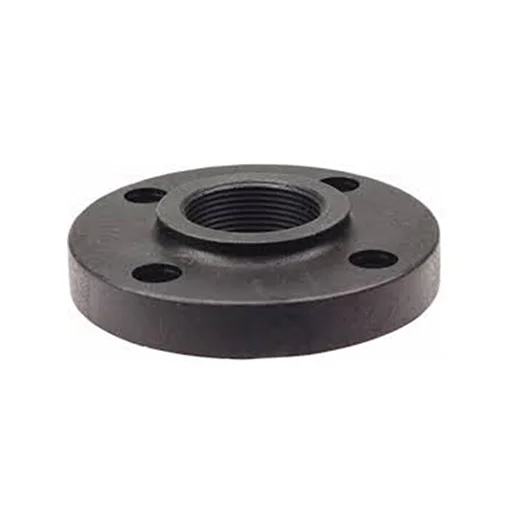

A694 F50 Threaded Flanges Stockholder

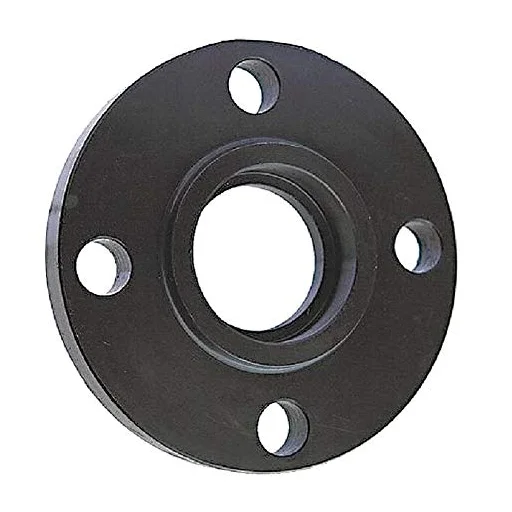

Manufacturer of A694 F50 Socket Weld Flanges

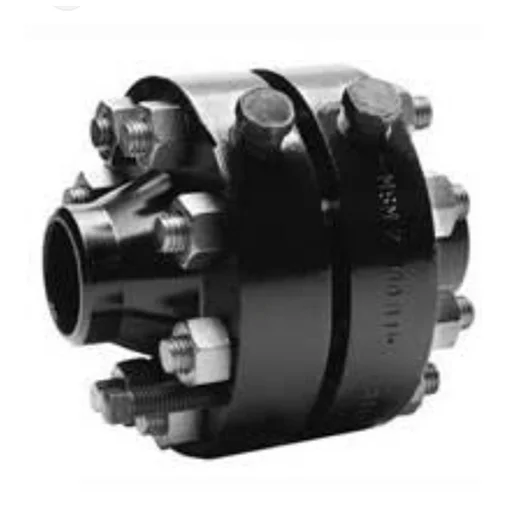

A694 F50 Orifice Flanges Supplier

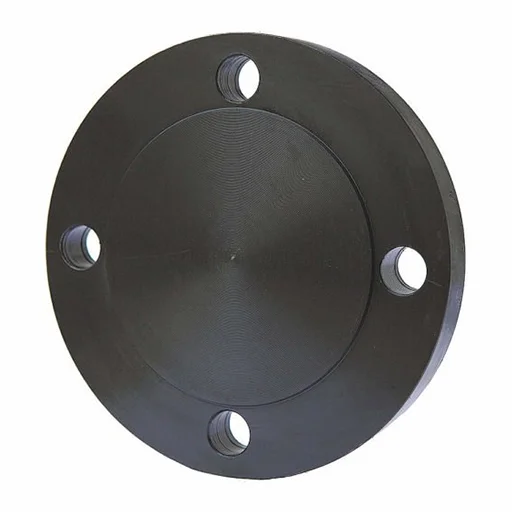

Stockist of A694 F50 Blank Flange

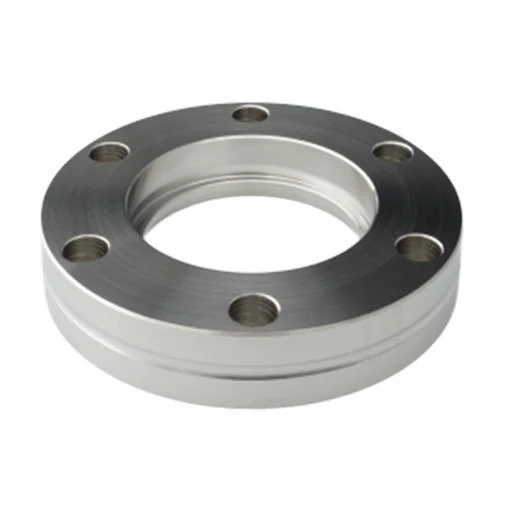

A694 F50 Blank Flange Rotatable Flange Distributor

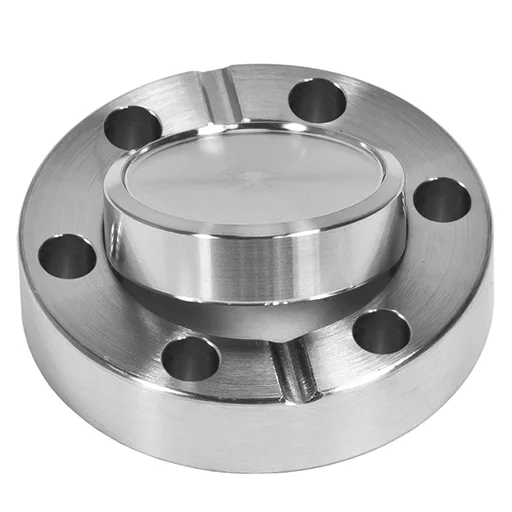

Exporter of A694 F50 Welding Flange Rotatable

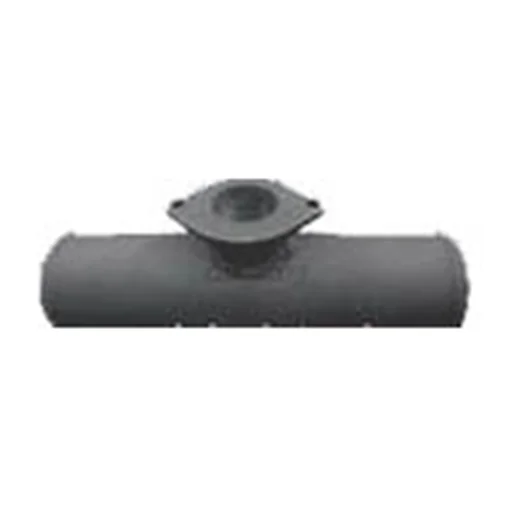

A694 F50 Flange with Tube Stockholder

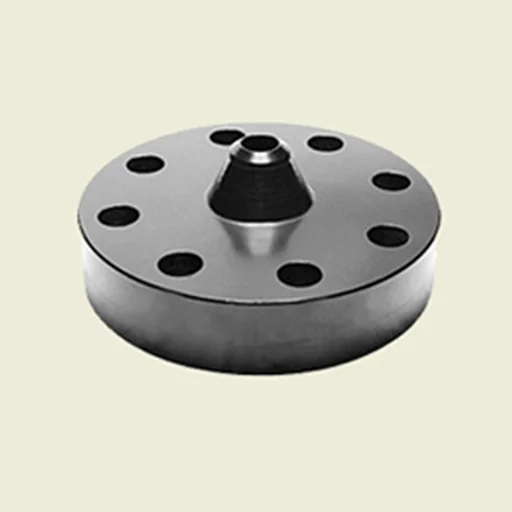

Manufacturer of A694 F50 Reducing Flanges

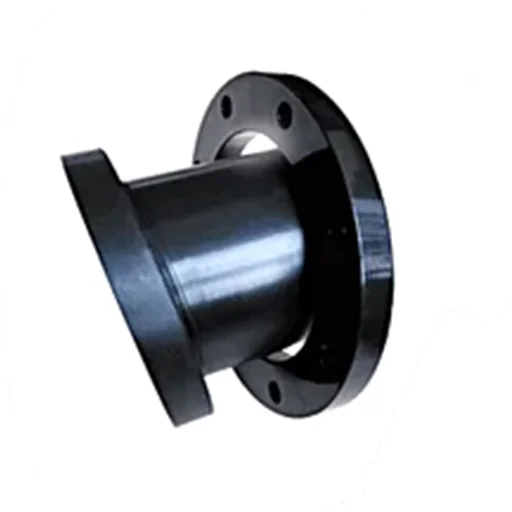

A694 F50 Conflat Flanges Supplier

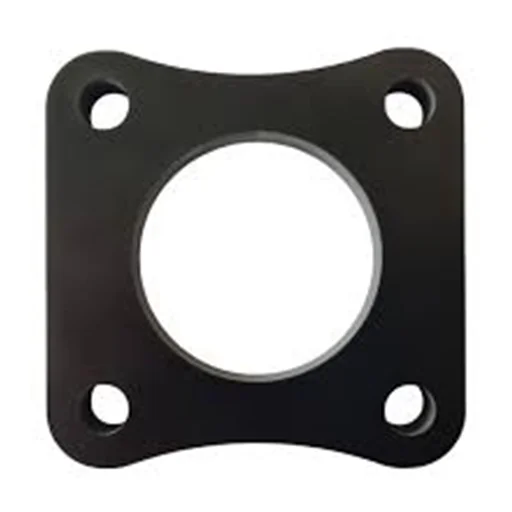

Stockist of A694 F50 Flange Bolted Weld-On

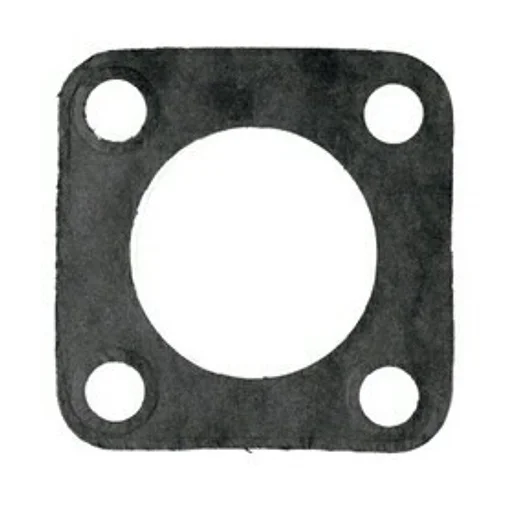

A694 F50 Square Flange Distributor

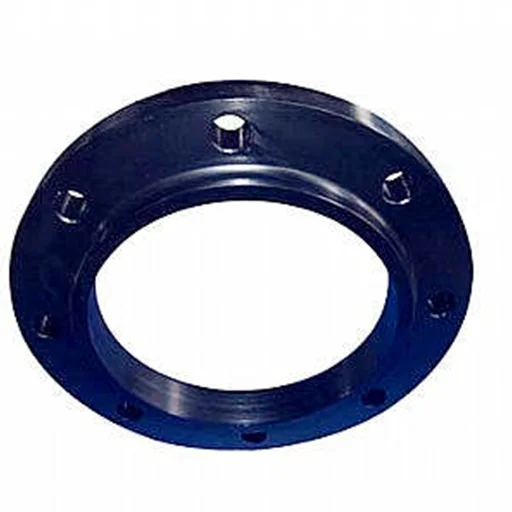

Exporter of A694 F50 Lap Joint Flanges

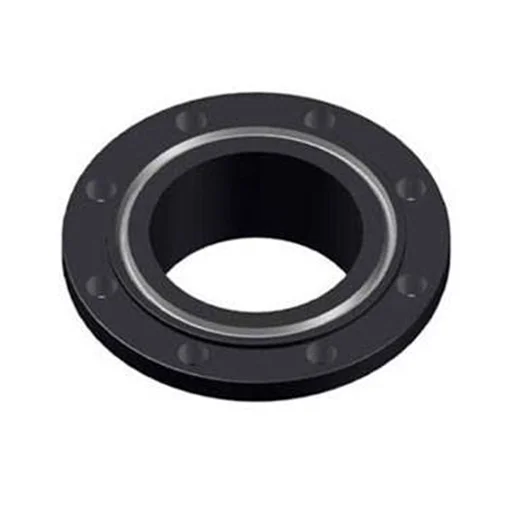

A694 F50 Ring Joint Flanges Distributor

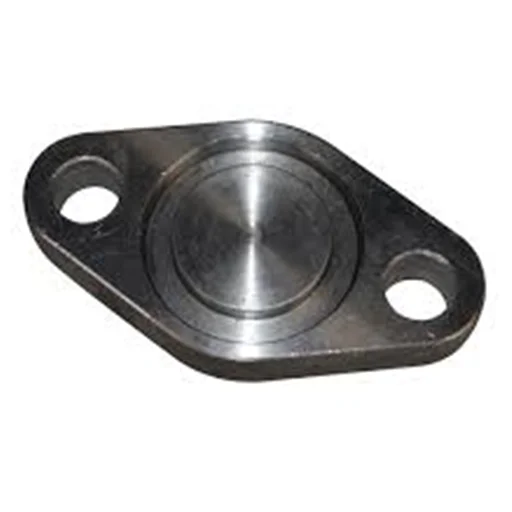

Exporter of A694 F50 Swivel Flanges

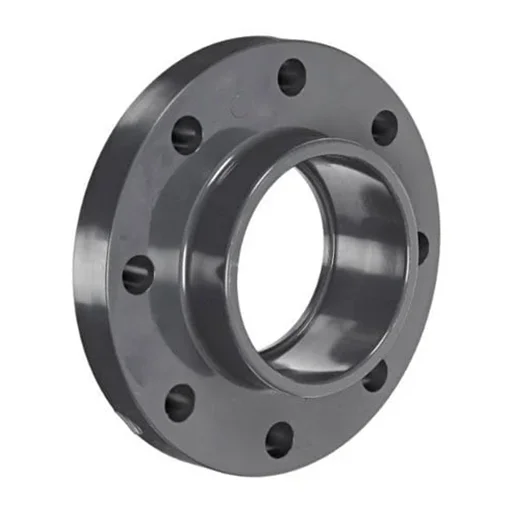

A694 F50 ANSI 150 Flanges Stockholder

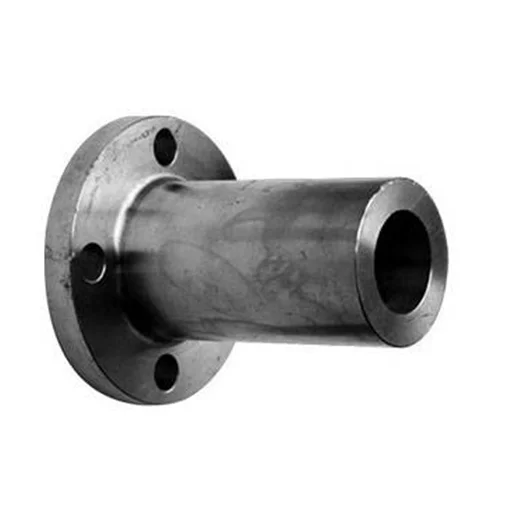

Manufacturer of A694 F50 Long WN Flanges

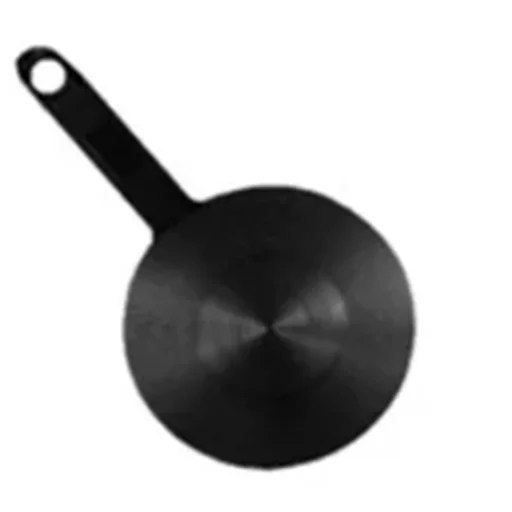

A694 F50 Spade Flanges Supplier

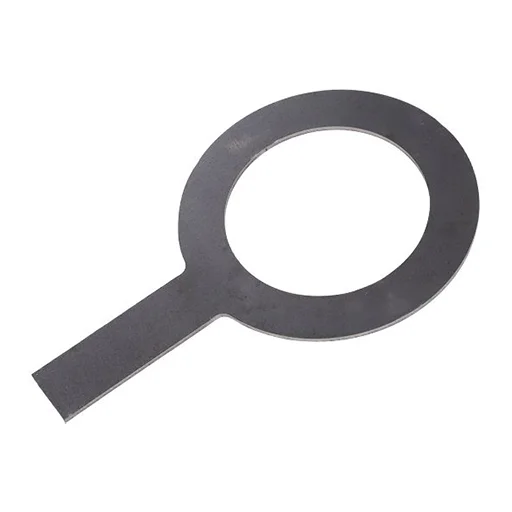

Stockist of A694 F50 Spacer Flanges

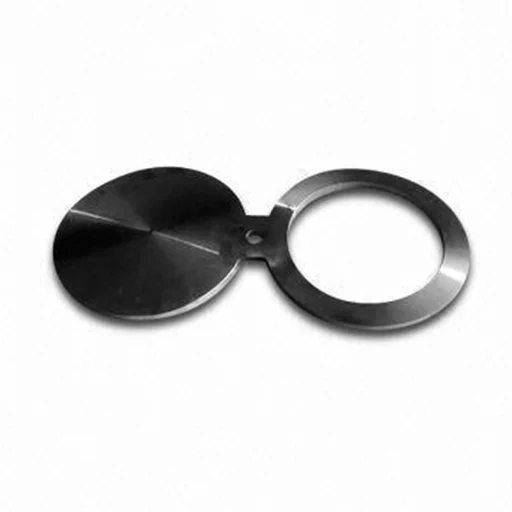

A694 F50 Figure 8 Flanges Distributor
Applications and Industrial Uses of ASTM A694 F50 Flanges
- Natural Gas Transmission Pipelines
- Crude Oil Transportation Pipelines
- High-Pressure Gas Distribution Networks
- Oil and Gas Pipeline Pumping Stations
- Natural Gas Compressor Stations
- Pipeline Pig Launcher and Receiver Systems
- Oil and Gas Wellhead and Manifold Systems
- Petrochemical and Refinery Piping Networks
Frequently Asked Questions
A694 F50 has a minimum yield strength of 345 MPa (50 ksi), minimum tensile strength of 440 MPa (64 ksi), and minimum elongation of 20% in 2 inches.
ASTM A694 covers material requirements only. Flange dimensions, facing, and pressure class follow ASME B16.5 up to NPS 24, or ASME B16.47 for larger sizes.
F50 carries a 345 MPa minimum yield strength, between F48 (330 MPa) and F56 (385 MPa), making it a mid-range option in the high-yield A694 family.
Weld neck, slip-on, blind, lap joint, socket weld, and threaded flanges are manufactured in A694 F50 to the required pressure class and facing.
Cross-country crude oil and gas pipelines, offshore and subsea systems, petrochemical and refinery projects, and power plant piping requiring elevated yield strength.
