Monel K500 Pipe Fittings

Name: Monel K500 Pipe Fittings | UNS N05500 Fittings Manufacturer & Supplier
Brand: Solitaire Overseas

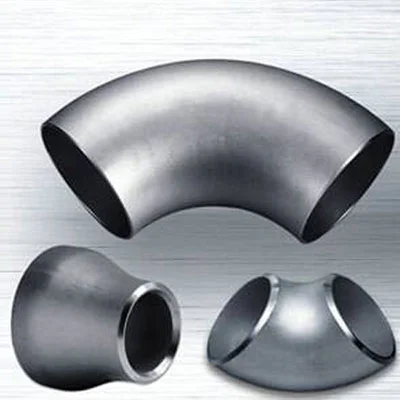

Monel K500 Pipe Fittings Supplier, Manufacturer & Exporter

Solitaire Overseas is a well known manufacturer, supplier and exporter of Monel K500 Pipe Fittings (UNS N05500 / WNR 2.4375), which comply with ASTM B366 and ASME B16.9. We offer the entire range, Monel K500 Forged Fittings and Monel K500 Buttweld Fittings, which is why we can provide the client with the one-source solution to all the piping needs. Alloy K500 is a nickel-copper alloy reinforced with aluminum and titanium, a precipitation-hardened alloy that is much stronger and harder than either Monel 400 - with tensile strength of 140,000 psi minimum and hardness of 16.25, and the same good sea water, sour gas and chloride stress cracking behavior.

UNS N05500 Monel K500 fittings are non-magnetic down to -200degF and spark resistant and are important to offshore platforms, marine systems, oil and gas downhole equipment and aerospace hydraulic lines. Offered in seamless between 1/2' to 10' and welded between 1/2' to 48', in schedules between Sch 5 to XXS. MTC according to EN 10204 3.1/3.2 attached with each order. Solitaire Overseas is an ISO 9001: 2015 certified and third party inspected ship in the world.

Why Choose Solitaire Overseas for Monel K500 Fittings?

ASTM B366 / ASME SB366 certified manufacturer with full heat traceability
ISO 9001:2015 quality management; MTC per EN 10204 3.1 / 3.2 with every shipment
Non-magnetic and spark-resistant fittings for hazardous and offshore environments
Available seamless (½"–10") and welded (½"–48"), all schedules Sch 5 to XXS
Complete range: elbows, tees, reducers, caps, stub ends, pipe bends, crosses
Third-party inspection: TUV, SGS, Bureau Veritas, Intertek available
Competitive Monel K500 Pipe Fittings price; stock and indent supply available
Export to 45+ countries with on-time delivery for project and spot orders

Contact us to buy Monel Products

Check price of Monel K500 Forged Fittings & Monel K500 Buttweld Fittings in India

Weight Calculator

Monel K500 Pipe Fittings – Size & Specification

Parameter	Details
Specification	ASTM B366 / ASME SB366
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43
Size	Seamless: 1/2"–10" ; Welded: 1/2"–48"
Thickness	Sch 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
Types	Seamless / ERW / Welded / Fabricated
Grades	Monel K500 (UNS N05500), Monel 400 (UNS N04400)

Surplus Stock at Dynamic Forge & Fittings

Pipe Fittings
Butt Weld Fittings
Forged Fittings
Socket Weld Fittings
Threaded Fittings
Flanges

Monel K500 Elbow
Monel K500 Tee
Monel K500 Reducer

Types of Monel K500 Pipe Fittings

1) Monel K500 Butt Weld Fittings

Monel K500 90° Long Radius Elbow
Monel K500 90° Short Radius Elbow
Monel K500 45° Long Radius Elbow
Monel K500 45° Short Radius Elbow
Monel K500 180° Long Radius Elbow
Monel K500 180° Short Radius Elbow
Monel K500 Equal Tee
Monel K500 Reducing Tee
Monel K500 Cross
Monel K500 Straight Cross
Monel K500 Reducing Cross
Monel K500 Concentric Reducer
Monel K500 Eccentric Reducer

Monel K500 Concentric / Eccentric Reducer
Monel K500 Stub End
Monel K500 End Cap / Pipe Cap
Monel K500 Pipe Elbow
Monel K500 Pipe Tee
Monel K500 Pipe Cross
Monel K500 Pipe Reducer
Monel K500 Pipe End Cap
Monel K500 Pipe Bends
Monel K500 Lap Joint
Monel K500 Lateral Tee
Monel K500 Piggable Bend
IBR Approved Buttweld Fittings

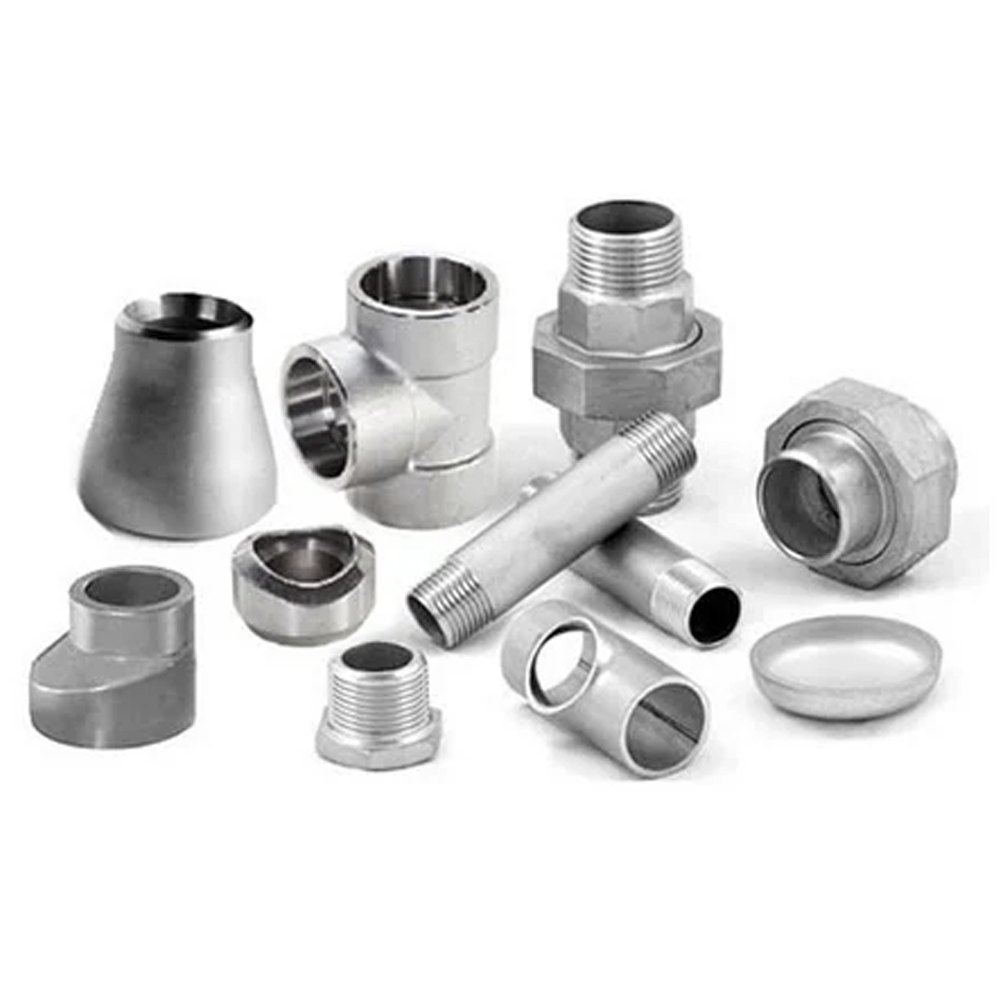

2) Monel K500 Forged Fittings

A) Monel K500 Threaded Fittings

Monel K500 90° Screwed Elbow
Monel K500 45° Screwed Elbow
Monel K500 Equal Tee
Monel K500 Unequal Tee
Monel K500 Equal Cross
Monel K500 Unequal Cross
Monel K500 Full Coupling
Monel K500 Half Coupling
Monel K500 Reducing Coupling
Monel K500 Cap
Monel K500 Bushing
Monel K500 Plug
Monel K500 Bull Plug
Monel K500 Union

Monel K500 Union Male Female
Monel K500 Union BS 3799
Monel K500 Hex Nipple
Monel K500 Pipe Nipple
Monel K500 Swage Nipple
Monel K500 Street Elbow
Monel K500 Adapter
Monel K500 Welding Boss
Monel K500 Branch Outlet
Monel K500 90° Elbow Outlet
Monel K500 45° Lateral Tee
Monel K500 Lateral Outlet
Monel K500 Nipple Branch Outlet

B) Monel K500 Socket Weld Fittings

Monel K500 90° Socket Weld Elbow
Monel K500 45° Socket Weld Elbow
Monel K500 Socket Weld Equal Tee
Monel K500 Socket Weld Unequal Tee
Monel K500 Socket Weld Equal Cross
Monel K500 Socket Weld Unequal Cross
Monel K500 Socket Weld Full Coupling
Monel K500 Socket Weld Half Coupling
Monel K500 Socket Weld Pipe Cap

Monel K500 Socket Weld Union
Monel K500 Socket Weld Reducer Insert
Monel K500 Socket Weld Boss
Monel K500 Socket Weld Branch Outlet
Monel K500 90° Socket Weld Elbow Outlet
Monel K500 Socket Weld Lateral Outlet
Monel K500 Socket Weld Pipe Nipples
Monel K500 Socket Weld Pipe Outlet Fittings
Monel K500 Socket Weld Swage Nipples / Pipe Swage

C) Monel K500 Forged Outlet Fittings

Monel K500 Forged Branch Outlet
Monel K500 90° Forged Elbow Outlet

Monel K500 Forged Lateral Outlet
Monel K500 Forged Nipple Branch Outlet

Key Features of UNS N05500 Monel K500 Pipe Fittings

UNS N05500 Monel K500 Pipe Fittings have a maximum operating temperature of -200degF as well as being spark resistant, resulting in their use in sour gas wells, marine seawater service, aerospace hydraulic systems and in oil and gas downhole equipment. The tensile properties of the alloy can be retained to 1200degF. High tensile strength of precipitation hardening combined with low corrosion rates of high velocity seawater make Monel K500 fittings better than Monel 400 in service in the demanding marine and energy-sector.

Applications of Monel K500 Pipe Fittings

Offshore platform piping and marine seawater service lines
Oil & gas sour gas wells and downhole completion equipment
Aerospace hydraulic systems and aircraft components
Chemical plant piping for hydrofluoric acid service
Pump shafts, impellers, and marine heat exchangers

Monel K500 Pipe Fittings – Price List (Request on Quote)

Product Type	Size Range	Price
Monel K500 Seamless Elbow 90°	½" – 10"	Request on Quote
Monel K500 Buttweld Tee (Equal)	½" – 48"	Request on Quote
Monel K500 Concentric Reducer	½" – 48"	Request on Quote
Monel K500 End Cap	½" – 48"	Request on Quote
Monel K500 Stub End	½" – 24"	Request on Quote
Monel K500 Pipe Bend (3D/5D)	½" – 10"	Request on Quote

Frequently Asked Questions – Monel K500 Pipe Fittings

Q1: What is UNS N05500?

UNS N05500 is the designation for Monel K500 — a precipitation-hardened nickel-copper alloy with higher strength than Monel 400 for demanding service.

Q2: What is the tensile strength of Monel K500 fittings?

ASTM B366 Monel K500 Pipe Fittings have a minimum tensile strength of 140,000 psi (965 MPa) via precipitation hardening.

Q3: Are Monel K500 Pipe Fittings magnetic?

No. UNS N05500 Monel K500 fittings are non-magnetic down to -200°F, critical for offshore and sensitive instrument applications.

Q4: What is the difference between Monel K500 and Monel 400 fittings?

Monel K500 is precipitation-hardened, offering 3x higher strength than Monel 400 while retaining similar corrosion resistance.

Q5: What sizes are available in Monel K500 Pipe Fittings?

Seamless fittings: ½" to 10". Welded fittings: ½" to 48". All schedules from Sch 5 to XXS are available.

Get a Quote for Monel K500 Pipe Fittings

Looking for pricing on ASTM B366 Monel K500 Pipe Fittings? Send us your type, size, schedule, and quantity—we'll get back with a quote and lead time within 24 hours. Stock available for quick dispatch.
