Monel K500 Forged Fittings Manufacturers and Suppliers

Name: Monel K500 Forged Fittings Manufacturers and Suppliers - Solitaire Overseas
Brand: Solitaire Overseas

Monel K500 Forged Fittings Supplier, Manufacturer & Exporter

Solitaire Overseas is a registered manufacturer, supplier and exporter of Monel K500 Forged Fittings (UNS N05500 / WNR 2.4375), which meets ASTM B564 and ASME B16.11. We also offer our Monel K500 Socket Weld Fittings and threaded type along with our Monel K500 Pipe Fittings and Monel K500 Buttweld Fittings to offer a full piping application. Forged fittings made of alloy K500 are a precipitation-hardened alloy of aluminum and titanium, which offers a minimum tensile strength of 140,000 psi -some three times that of Monel 400 -and has equal exceptional corrosion resistance.

The fittings are Non-magnetic to -200 °F and spark resistant and hence are invaluable on offshore platforms, sour gas wells, cryogenic and explosive environments. In sizes of 1/8 inch to 4 inch, pressure Classes of 2000 to 9000, NPT threads, BSP threads, NPTF threads and BSPT threads. MTC according to EN 10204 3.1/3.2 and inspection by a third party are available with each lot. Solitaire Overseas has been certified under the ISO 9001:2015 and exports worldwide.

Why Choose Solitaire Overseas for Alloy K500 Forged Fittings?

ASTM B564 / ASME SB564 and ASME B16.11 certified production
ISO 9001:2015 quality management; MTC per EN 10204 3.1/3.2 with every order
Non-magnetic and spark-resistant — critical for offshore and hazardous applications
Precipitation-hardened for 3x strength advantage over Monel 400 fittings
Available Class 2000, 3000, 6000, 9000 in all standard thread forms
Third-party inspection: TUV, Bureau Veritas, SGS, Intertek on request
Full range: SW Elbow, Tee, Coupling, Union, End Cap, Plug, Nipple
Competitive Monel K500 Forged Fittings price with global export capability

Contact us to buy Monel Products

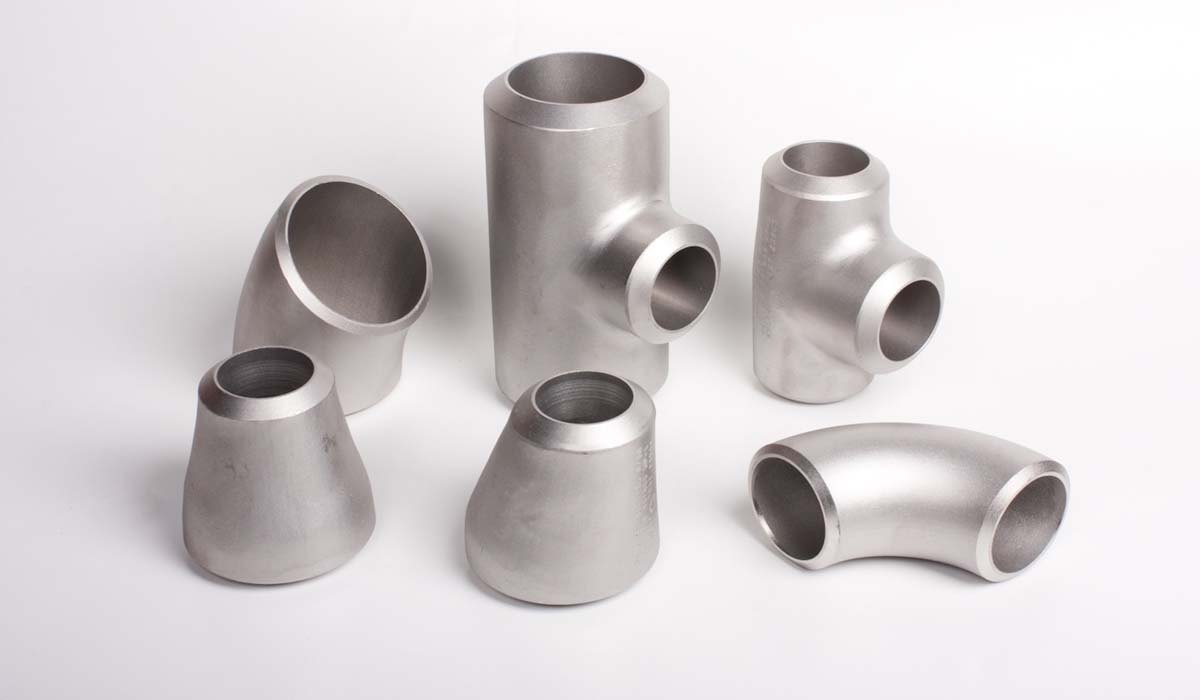

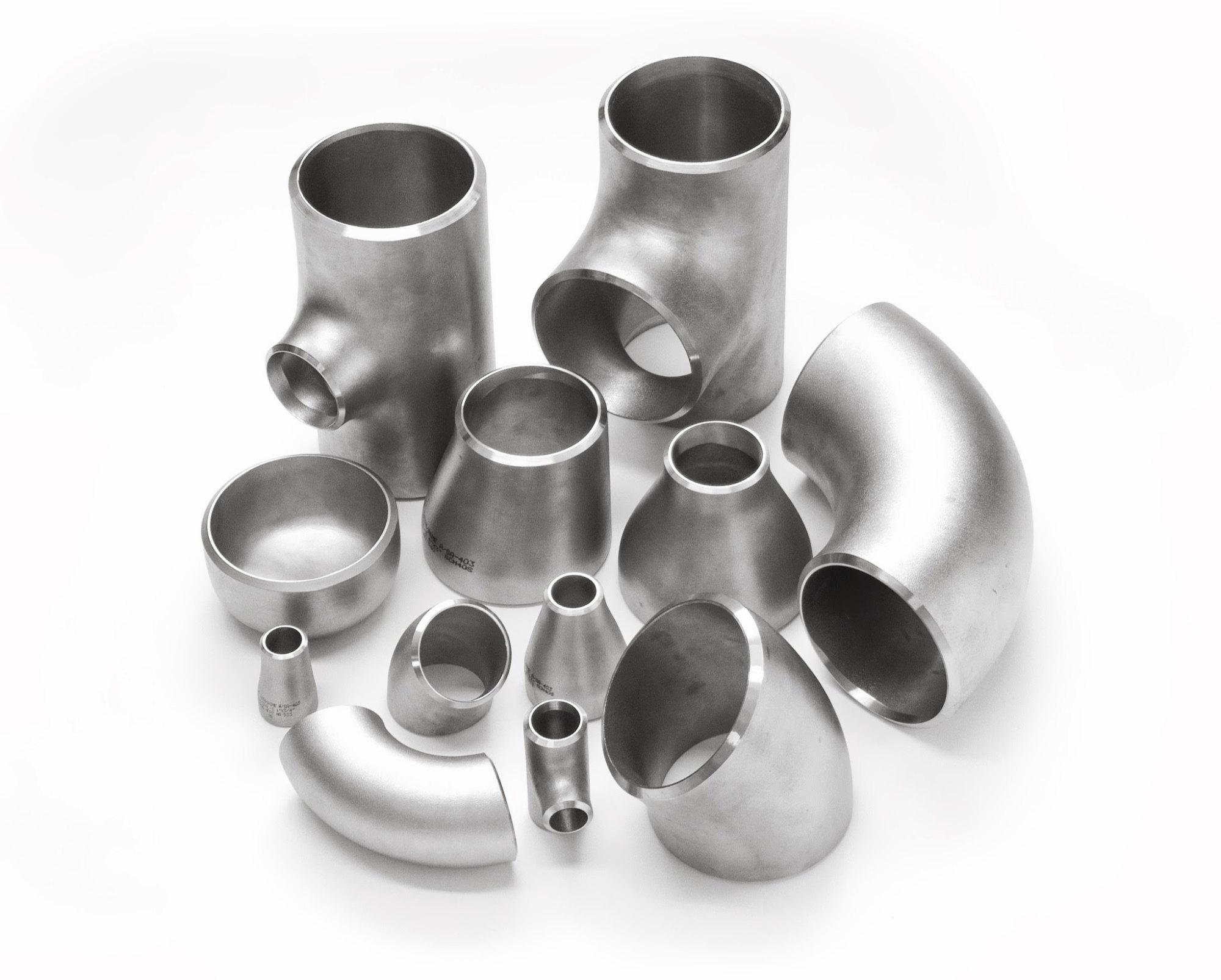

Check price of Monel K500 Pipe Fittings & Monel K500 Buttweld Fittings in India

Weight Calculator

Monel K500 Forged Fittings Specification

Specification	Details
Standard	ASTM B564 / ASME SB564
Dimensions	ASME B16.11, MSS SP-79, SP-83, SP-95, SP-97, BS 3799
Size Range	1/8” NB to 4” NB (Socket Weld & Screwed-Threaded)
Type	Socket Weld Fittings, Screwed-Threaded Fittings
Pressure Class	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Types of Monel K500 Forged Fittings

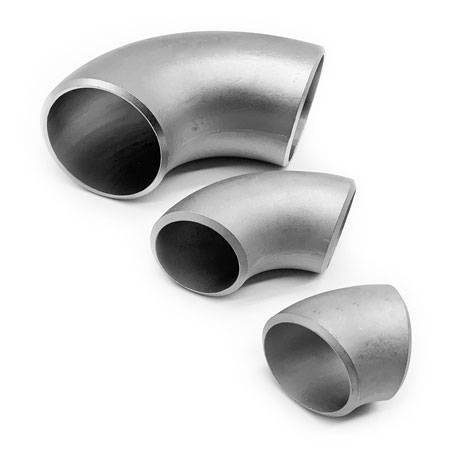

Monel K500 Forged Elbow

ASTM B564 Monel K500 Forged Elbow, UNS N05500 Forged Elbow, 2.4375 Forged Elbow, Monel K500 45° Socket Weld Elbow Exporter, Monel K500 90° Threaded Elbow Supplier, ANSI B16.11 Manufacturer in Mumbai, India.

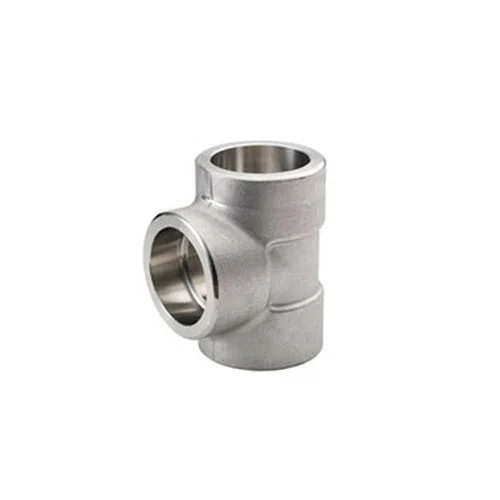

Monel K500 Forged Tee

ASTM B564 Monel K500 Forged Tee, UNS N05500 Equal Tee, 2.4375 Socket Weld Tee, Monel K500 Threaded Unequal Tee Exporter, Monel K500 Forged Pipe Tee Supplier, ANSI B16.11 Manufacturer in Mumbai, India.

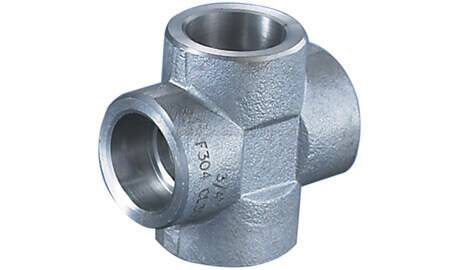

Monel K500 Forged Cross

ASTM B564 Monel K500 Forged Cross, UNS N05500 Equal Cross, 2.4375 Forged Cross, Monel K500 Socket Weld Unequal Cross Exporter, Monel K500 Threaded Pipe Cross Supplier.

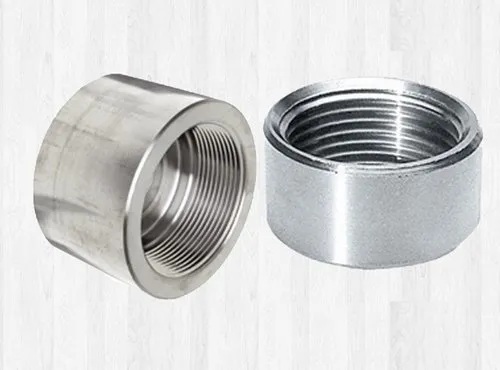

Monel K500 Forged Coupling

ASTM B564 Monel K500 Forged Coupling, UNS N05500 Coupling, 2.4375 Full Coupling, Monel K500 Half Coupling Exporter, Monel K500 Socket Weld Coupling Supplier.

Monel K500 Forged Union

ASTM B564 Monel K500 Forged Union, UNS N05500 Union, 2.4375 Union, Monel K500 Socket Weld Union Exporter, Monel K500 Threaded Forged Union Supplier.

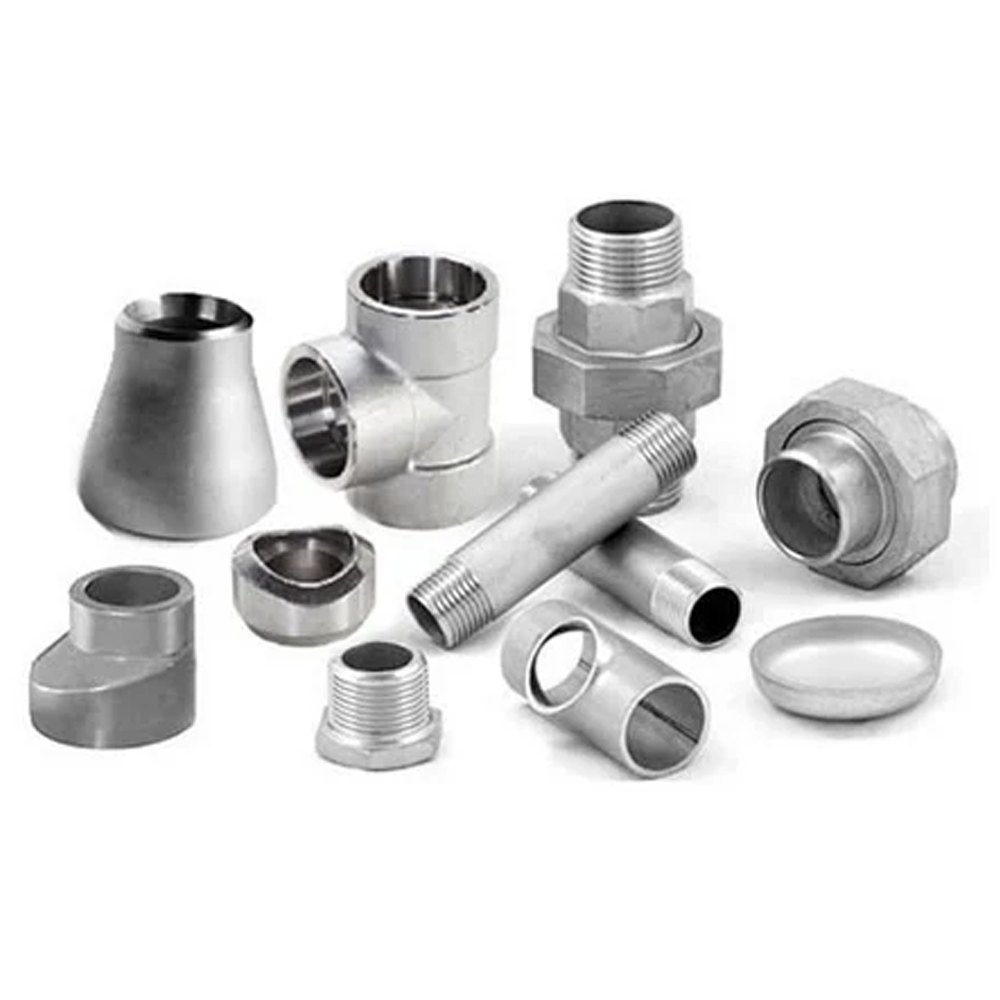

Monel K500 Forged Pipe Nipple

ASTM B564 Monel K500 Forged Pipe Nipple, UNS N05500 Forged Nipple, 2.4375 Forged Nipple, Monel K500 Swage Nipple Exporter, Monel K500 Threaded Pipe Nipple Supplier.

Equivalent Grades of B564 Monel K500 Forged Fittings

STANDARD	WERKSTOFF NR.	UNS
Monel K500	2.4375	N05500

Monel K500 Forged Fittings – Chemical Properties

Grade	C (Max)	Mn (Max)	Si (Max)	S (Max)	Cu (%)	Fe (%)	Ni (Min)
K500	0.25	1.5	0.5	0.010	27.00 – 33.00	0.5 – 2.0	63.00

Monel K500 Forged Pipe Fittings – Mechanical Properties

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2% Offset)	Elongation
K500	8.44 g/cm³	1350°C (2460°F)	160,000 psi (1100 MPa)	115,000 psi (790 MPa)	20%

Key Features & Applications of Alloy K500 Forged Fittings

Forged alloy K500 fittings are non-magnetic to -200F and spark-resistant - very important in offshore platforms and explosive environments. Monel K500 Socket Weld Fittings are especially resistant to sour gas (H2S) and oxidizing acid environments and also the alkaline solutions. They find application in pump shafts, impellers, doctor blades, marine fittings, and downhole oil and gas applications where Monel 400 lacks the strength necessary. The tensile strength is combined with the seawater corrosion resistance, and thus, ASTM B564 Monel K500 fittings are favored piping in sub-sea and high-pressure instruments..

Monel K500 Forged Fittings – Price List (Request on Quote)

Product Type	Size Range	Price
Monel K500 SW Elbow 90° (Class 3000)	1/8" – 4"	Request on Quote
Monel K500 SW Tee (Class 3000)	1/8" – 4"	Request on Quote
Monel K500 Full Coupling (Class 6000)	1/8" – 4"	Request on Quote
Monel K500 Threaded Union	1/8" – 4"	Request on Quote
Monel K500 End Cap	1/8" – 4"	Request on Quote
Monel K500 Half Coupling (Class 9000)	1/8" – 4"	Request on Quote

Frequently Asked Questions – Monel K500 Forged Fittings

Q1: What standard governs ASTM B564 Monel K500 Forged Fittings?

ASTM B564 / ASME SB564 covers material. Dimensions follow ASME B16.11, MSS SP-79, SP-83, SP-95, and BS 3799.

Q2: What is the tensile strength of Monel K500 Socket Weld Fittings?

Alloy K500 forged fittings achieve a minimum tensile strength of 140,000 psi (965 MPa) through precipitation hardening.

Q3: Why are Monel K500 Forged Fittings used offshore?

UNS N05500 is non-magnetic to -200°F and spark-resistant, making Monel K500 Socket Weld Fittings safe for offshore and explosive environments.

Q4: How does Monel K500 compare to Monel 400 in forged fittings?

Monel K500 forged fittings offer ~3x higher tensile strength than Monel 400, while retaining similar seawater and acid corrosion resistance.

Q5: What pressure classes are available in Monel K500 Forged Fittings?

Class 2000, 3000, 6000, and 9000 are available in Monel K500 Forged Fittings from 1/8" to 4".

Get a Quote for Monel K500 Forged Fittings

Looking for pricing on ASTM B564 Monel K500 Forged Fittings? Send us your type, size, pressure class, and quantity—we'll get back with a quote and lead time within 24 hours. Stock available for quick dispatch.
