Carbon Steel Anchor Flanges
Carbon Steel Anchor Flanges Manufacturer and Supplier in India
Carbon Steel Anchor Flanges are durable pipe fittings that restrict the axial motion and secure pipelines at certain anchor points. Different from ordinary flanges, which are typically used for assembling and sealing pipe ends, anchor flanges transmit the forces caused by pressure inside, thermal expansion, and pipe movement to a structural anchor made of concrete. Typically, these flanges are made of different types of carbon steel such as ASTM A105, A350 LF2, and A694. The applications of these flanges range from pipelines used in buried pipelines, pump stations, water supply pipelines, oil & gas pipelines as well as industrial pipelines. They are made according to project-specific sizes, ratings, and configuration, they can be manufactured based on relevant specifications and drawings. Solitaire Overseas is a leading Carbon Steel Anchor Flanges Manufacturer and Supplier in India.
Technical Data
Specifications of Carbon Steel Anchor Flanges
| Feature / Parameter | Standard Specification Values |
|---|---|
Flange Type |
Anchor Flange |
Carbon Steel (CS) Materials |
ASTM A105 |
Low-Temp Carbon Steel Materials |
ASTM A350 (LF1, LF2 CL1/CL2, LF3 CL1/CL2), ASTM A516 Gr. 60 |
High-Yield Carbon Steel Materials |
ASTM A694 (F42, F46, F48, F50, F52, F56, F60, F65, F70) |
Stainless Steel Materials |
ASTM A182 (F304/304L, F316/316L, F316H, F310, F321) |
Alloy Steel Materials |
ASTM A182 (F11, F22) |
Manufacturing Standards |
API, ANSI, BS, JIS, UNI, MSS SP |
Pressure Ratings |
ANSI Class 150# to 2500# |
Size Range |
½″ to 64″ (DN 15 to DN 1600 mm) |
Applications & Industry Use |
Oil & Gas Fields, Offshore Systems, Water Utilities, Shipbuilding, Electric Power Plants, Pipeline Infrastructure Projects |
Chemical Compositions of Carbon Steel Anchor Flanges
| Material Grade | Carbon (C) max | Manganese (Mn) | Phosphorus (P) max | Sulfur (S) max | Silicon (Si) | Nickel (Ni) max | Chromium (Cr) max | Molybdenum (Mo) max | Copper (Cu) max |
|---|---|---|---|---|---|---|---|---|---|
ASTM A105 |
0.35 |
0.60 – 1.05 |
0.035 |
0.040 |
0.10 – 0.35 |
0.40 |
0.30 |
0.12 |
0.40 |
ASTM A350 LF2 Class 1 |
0.30 |
0.60 – 1.35 |
0.035 |
0.040 |
0.15 – 0.30 |
0.40 |
0.30 |
0.12 |
0.40 |
ASTM A694 F42 |
0.26 |
1.35 max |
0.025 |
0.025 |
0.15 – 0.35 |
— |
— |
— |
— |
ASTM A694 F52 |
0.26 |
1.35 max |
0.025 |
0.025 |
0.15 – 0.35 |
— |
— |
— |
— |
ASTM A694 F60 / F65 |
0.26 |
1.35 max |
0.025 |
0.025 |
0.15 – 0.35 |
— |
— |
— |
— |
ASTM A694 F70 |
0.26 |
1.35 max |
0.025 |
0.025 |
0.15 – 0.35 |
— |
— |
— |
— |
Carbon Steel Anchor Flanges Mechanical Properties
| Material Grade | Tensile Strength, min | Yield Strength (0.2% Offset), min | Elongation (in 2″ / 50mm), min | Reduction of Area, min | Hardness (Brinell), max | Charpy V-Notch Impact Test Temp & Energy |
|---|---|---|---|---|---|---|
ASTM A105 |
70 ksi [485 MPa] |
36 ksi [250 MPa] |
22% |
30% |
187 HBW |
N/A (Standard Ambient) |
ASTM A350 LF2 CL1 |
70–95 ksi [485–655 MPa] |
36 ksi [250 MPa] |
22% |
30% |
197 HBW |
15 ft·lbf [20 J] avg / 12 ft·lbf [16 J] min single @ −46 °C [−50 °F] |
ASTM A694 F42 |
60 ksi [415 MPa] |
42 ksi [290 MPa] |
20% |
35% |
217 HBW |
Optional / Per Order Spec |
ASTM A694 F52 |
66 ksi [455 MPa] |
52 ksi [360 MPa] |
20% |
35% |
217 HBW |
Optional / Per Order Spec |
ASTM A694 F60 |
75 ksi [515 MPa] |
60 ksi [415 MPa] |
19% |
35% |
235 HBW |
Optional / Per Order Spec |
ASTM A694 F65 |
77 ksi [530 MPa] |
65 ksi [450 MPa] |
18% |
35% |
235 HBW |
Optional / Per Order Spec |
ASTM A694 F70 |
82 ksi [565 MPa] |
70 ksi [485 MPa] |
18% |
35% |
235 HBW |
Optional / Per Order Spec |
Equivalent Standards of Carbon Steel Anchor Flanges
| ASTM / ASME Grade | UNS Number | EN / DIN Equivalent | JIS Equivalent (Japan) | BS / ISO Equivalent (UK/Intl) | Mating Line Pipe Specification |
|---|---|---|---|---|---|
ASTM A105 |
UNS K03504 |
1.0460 / C22.8 / P250GH |
JIS G3201 SF440A |
BS 1503 224-410 |
API 5L Grade B, A106 Gr. B |
ASTM A350 LF2 |
UNS K03011 |
1.0566 / TStE355 / P355QH |
JIS G3205 SFL2 |
BS 1501 224 Gr. 490 |
API 5L X42 / X52 (Low-Temp) |
ASTM A694 F42 |
— |
1.0486 / StE285 |
— |
ISO 15590-2 Grade L290 |
API 5L X42 (L290) |
ASTM A694 F52 |
— |
1.0570 / StE355 |
— |
ISO 15590-2 Grade L360 |
API 5L X52 (L360) |
ASTM A694 F60 |
— |
1.8972 / StE415 |
— |
ISO 15590-2 Grade L415 |
API 5L X60 (L415) |
ASTM A694 F65 |
— |
1.8973 / StE450 |
— |
ISO 15590-2 Grade L450 |
API 5L X65 (L450) |
ASTM A694 F70 |
— |
1.8975 / StE485 |
— |
ISO 15590-2 Grade L485 |
API 5L X70 (L485) |
Types of Carbon Steel Anchor Flanges
Welded Anchor Flanges
Weld Neck Anchor Flanges

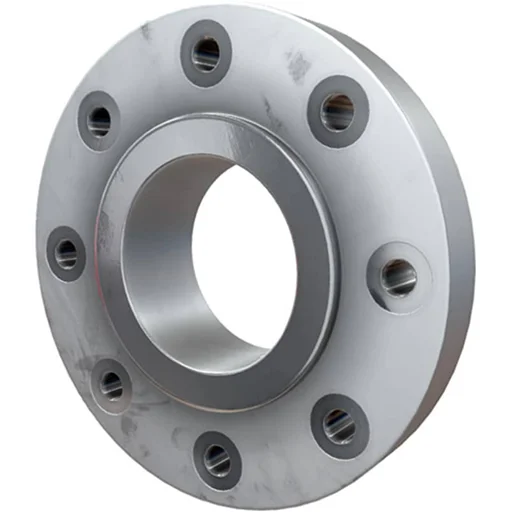

Slip-On Anchor Flanges
Integral Anchor Flanges
Forged Carbon Steel Anchor Flanges
Blind Anchor Flanges
Applications and Industrial Uses of Carbon Steel Anchor Flanges
- Oil & Gas Industry
- Petrochemical Industry
- Water Treatment Industry
- Power Generation Industry
- Chemical Processing Industry
- Marine & Offshore Industry
- Refineries
- Industrial Process Piping Industry
Frequently Asked Questions
Carbon Steel Anchor Flanges are heavy-duty piping components used to secure pipelines and restrict unwanted axial movement.
They transfer pipeline forces, including pressure and thermal loads, to a supporting structure or concrete anchor.
They are welded or connected to the pipeline and anchored to a fixed structure, limiting axial movement caused by pressure or thermal expansion.
They are commonly installed at pipeline anchor points, pump stations, buried pipelines, water transmission systems, and industrial piping networks.
Yes, they can be used in high-pressure pipelines when the material grade, dimensions, pressure rating, and anchoring design meet the project requirements.
Contact Solitaire Overseas for expert guidance and the right flange solution for your project.
