ASTM A694 F52 Flanges Manufacturer and Supplier in India
ASTM A694 F52 Forged Steel Flanges are used in transmission systems where reliability and strength are paramount, especially when handling high-pressure applications. Grade F52 is a minimum yield strength material of 52 ksi (360 MPa) at 0.2% offset, suitable for specified pipelines used in the oil and gas industry, petrochemical plants and industrial pipeline networks. Facing options, sizes, pressure classes and different configurations are available to suit project demands and the applicable dimensional standard. Chemical analysis, mechanical testing and dimensional inspection are used to ensure conformance to the defined grade. Solitaire Overseas is a reputed manufacturer and supplier of ASTM A694 F52 Flanges in India and provides pipeline component solutions to customers across the world.
Technical Data
Specifications of ASTM A694 F52 Flanges
| Property / Parameter | Specification / Standard |
|---|---|
| Standard Specification | ASTM A694 / ASME SA694 |
| Grade Designation | Grade F52 |
| Dimensional Standards | ASME B16.5, ASME B16.47 Series A & B, MSS SP-44 |
| Size Range | 1/2" to 24" (ASME B16.5), 26" to 48" and larger (ASME B16.47) |
| Pressure Classes | Class 150, 300, 400, 600, 900, 1500, 2500 |
| Heat Treatment Condition | Normalizing, Quenching and Tempering |
| Flange Facings | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
| Temperature Range | -29°C to +427°C (-20°F to +800°F) typical |
Chemical Compositions of ASTM A694 F52 Flanges
| Element | Composition Limit (%) |
|---|---|
| Carbon (C) | ≤ 0.30 |
| Manganese (Mn) | ≤ 1.60 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.025 |
| Silicon (Si) | 0.15 – 0.35 |
ASTM A694 F52 Flanges Mechanical Properties
| Property | Minimum Requirement |
|---|---|
| Yield Strength (0.2% offset) | 360 MPa / 52 ksi |
| Tensile Strength | 455 MPa / 66 ksi |
| Elongation (in 2 inches / 50 mm) | 20% |
Physical Properties of ASTM A694 F52 Flanges
| Physical Property | Value |
|---|---|
| Density | 7.85 g/cm³ |
| Elastic Modulus | 190–210 GPa |
| Thermal Conductivity | ∼45 W/m⋅K |
| Melting Range | 1425–1540 °C |
Temperature and Pressure Rating of ASTM A694 F52 Flanges
| Temp. (°C) | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
|---|---|---|---|---|---|---|---|
| -29 to 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
| 50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
| 100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233.0 | 388.3 |
| 150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
| 200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219.0 | 365.0 |
| 250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
| 300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
| 325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
| 350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313.0 |
| 375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
| 450 | 4.6 | 23.0 | 30.7 | 46.0 | 69.0 | 115.0 | 191.7 |
| 475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
| 500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
ASTM A694 F52 Flanges Weight Chart
| Standard / System | Class / Table | Flange Dia. (mm) | Bolt Circle Dia. (mm) | No. of Bolts | Bolt Size | Dia. of Bolt Hole (mm) |
|---|---|---|---|---|---|---|
| AS 4087 | PN 14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 | Table C | 95 | 67 | 4 | 13 (1/2") | 14 |
| Table D | 95 | 67 | 4 | 13 (1/2") | 14 | |
| Table E | 95 | 67 | 4 | 13 (1/2") | 14 | |
| Table F | 95 | 67 | 4 | 13 (1/2") | 14 | |
| Table H | 114 | 83 | 4 | 16 (5/8") | 17 | |
| Table J | 114 | 83 | 4 | 16 (5/8") | 17 | |
| ANSI / ASME B16.5 | Class 150 | 89 | 60 | 4 | 13 (1/2") | 16 |
| Class 300 | 95 | 67 | 4 | 13 (1/2") | 16 | |
| Class 600 | 95 | 67 | 4 | 13 (1/2") | 16 | |
| Class 900 | 121 | 83 | 4 | 19 (3/4") | 22 | |
| Class 1500 | 121 | 83 | 4 | 19 (3/4") | 22 | |
| ISO 7005 (DIN) | PN 6 | 80 | 55 | 4 | M10 | 11 |
| PN 10 | 95 | 65 | 4 | M12 | 14 | |
| PN 16 | 95 | 65 | 4 | M12 | 14 | |
| PN 20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN 25 | 95 | 65 | 4 | M12 | 14 | |
| PN 40 | 95 | 65 | 4 | M12 | 14 |
Dimensions Chart of ASTM A694 F52 Flanges
| NPS | Flange ID (Pipe OD) | Class 150 LB | Class 300 LB | Class 400 LB | Class 600 LB | Class 900 LB |
|---|---|---|---|---|---|---|
| 1/2" | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.500 |
| 3/4" | 1.06 | 2.250 | 2.625 | 2.625 | 2.625 | 2.750 |
| 1" | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
| 1-1/4" | 1.66 | 3.000 | 3.250 | 3.250 | 3.250 | 3.500 |
| 1-1/2" | 1.91 | 3.375 | 3.750 | 3.750 | 3.750 | 3.875 |
| 2" | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
| 2-1/2" | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.500 |
| 3" | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
| 4" | 4.50 | 6.875 | 7.125 | 7.000 | 7.625 | 8.125 |
| 5" | 5.56 | 7.750 | 8.500 | 8.375 | 9.500 | 9.750 |
| 6" | 6.62 | 8.750 | 9.875 | 9.750 | 10.500 | 11.375 |
| 8" | 8.62 | 11.000 | 12.125 | 12.000 | 12.625 | 14.125 |
| 10" | 10.75 | 13.375 | 14.250 | 14.125 | 15.750 | 17.125 |
| 12" | 12.75 | 16.125 | 16.625 | 16.500 | 18.000 | 19.625 |
Types of ASTM A694 F52 Flanges
High Yield Carbon Steel F52 RTJ Flanges
Steel Grade F52 Raised Face Flanges

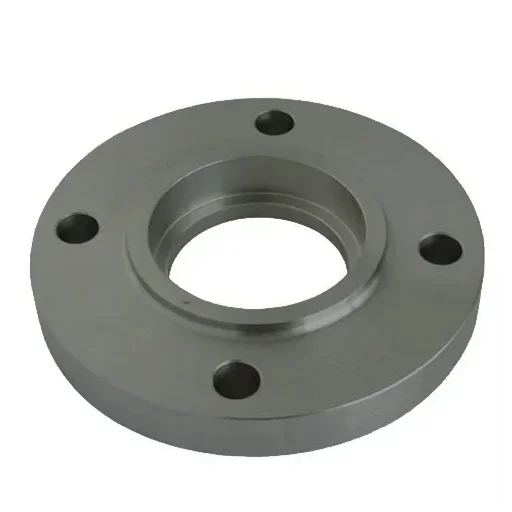

A694 CS Gr F52 Socket Weld Flanges

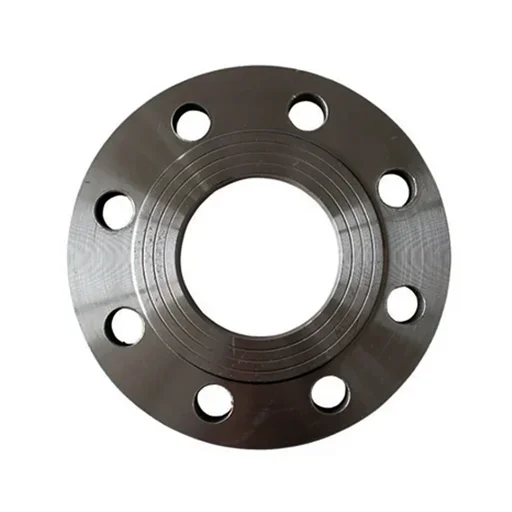

Grade F52 Carbon Steel Slip On Flanges
ASTM A694 Gr F52 Reducing Flanges

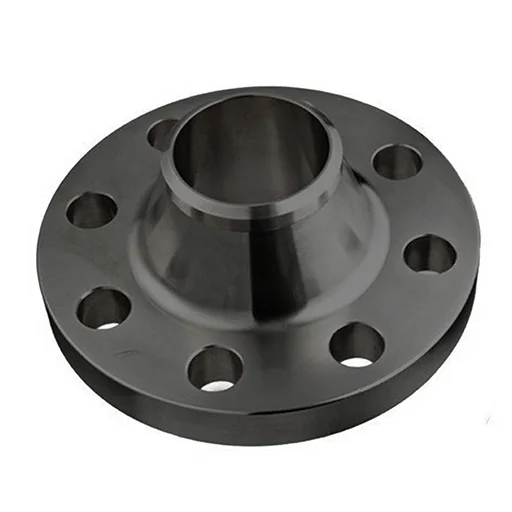

A694 F52 Weld Neck Flanges

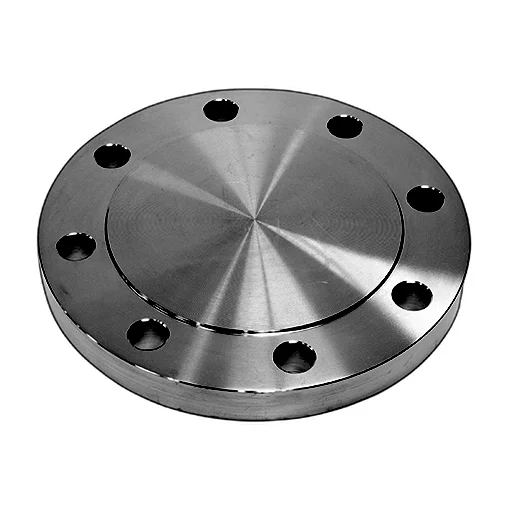

SA 694 F52 Blind Flanges
Carbon Steel A694 Grade F52 Flat Face Flanges

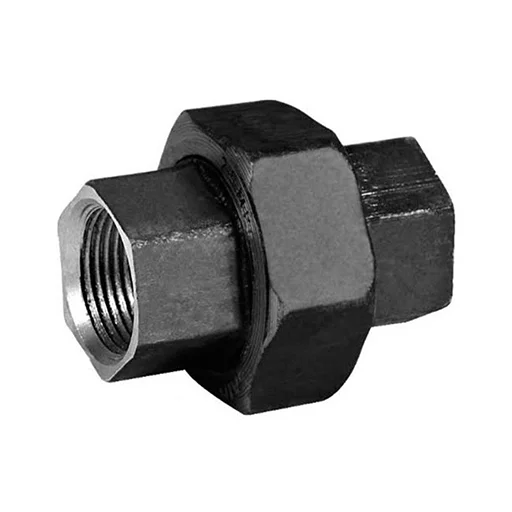

ASME SA 694 F52 Threaded Union

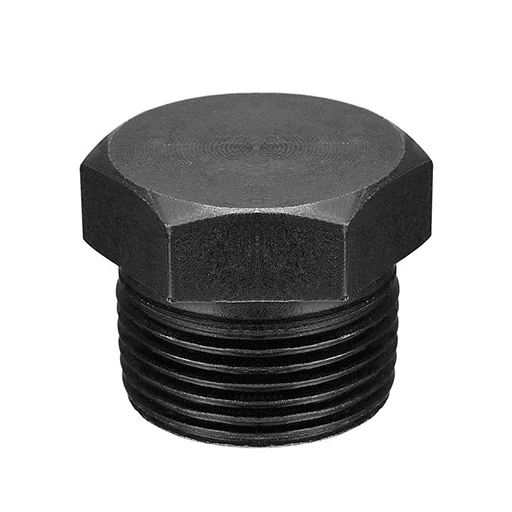

ASTM A694 F52 Steel Threaded Hex Plug

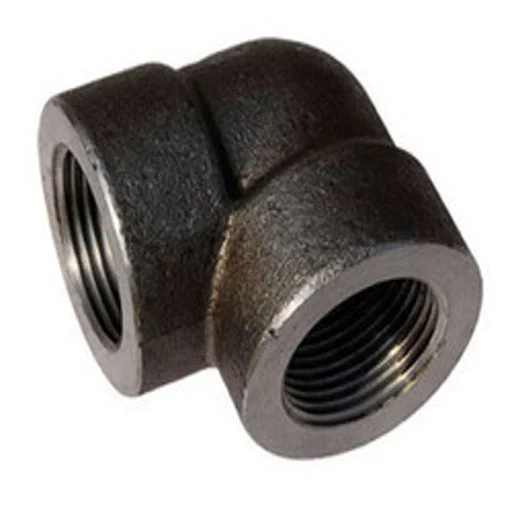

Carbon Steel A694 F52 90 Deg Elbow

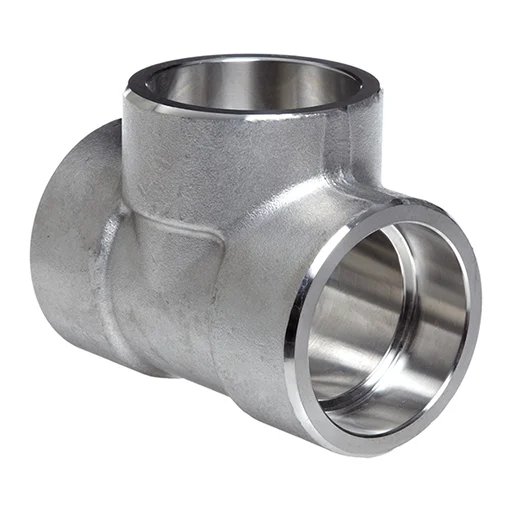

Carbon Steel ASME SA694 F52 Socket Weld Tee
Applications and Industrial Uses of ASTM A694 F52 Flanges
- Crude Oil Transmission Pipelines
- Natural Gas Transmission Pipelines
- High-Pressure Gas Distribution Networks
- Oil and Gas Pipeline Pumping Stations
- Natural Gas Compressor Stations
- Oil and Gas Manifold Systems
- Pipeline Pig Launcher and Receiver Systems
- Petrochemical and Refinery Piping Networks
Frequently Asked Questions
ASTM A694 F52 Flanges are forged steel piping components designed for high-pressure oil, gas, and pipeline transmission applications. They have a minimum yield strength of 52 ksi (360 MPa).
Common tests include chemical analysis, tensile testing, hardness testing, dimensional inspection, and nondestructive examination when required by the applicable specification or purchase order.
ASTM A694 F52 Flanges may be used in sour gas service if the material condition, hardness, manufacturing controls, and testing meet applicable sour-service requirements, such as NACE MR0175/ISO 15156.
A694 F52 has a minimum yield strength of 360 MPa (52 ksi) at 0.2% offset, minimum tensile strength of 455 MPa (66 ksi), and minimum elongation of 20% in 2 inches.
ASTM A694 covers material requirements only. Flange dimensions, facing, and pressure class follow ASME B16.5 up to NPS 24, or ASME B16.47 for larger sizes.
F52 carries a 360 MPa minimum yield strength, between F50 (345 MPa) and F56 (385 MPa), positioning it in the mid-range of the high-yield A694 family.
