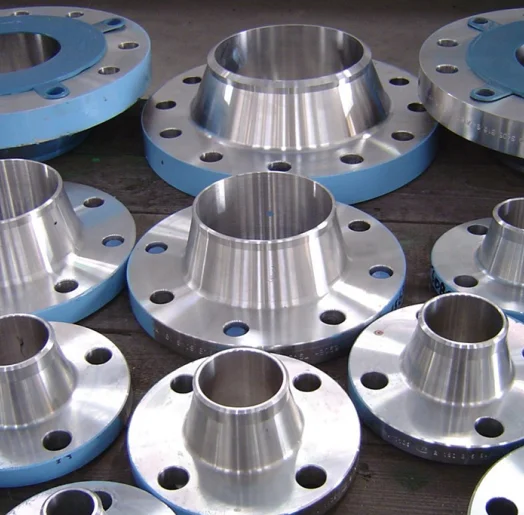

Monel K500 Flanges Manufacturer, Supplier & Exporter

Solitaire Overseas is the well-known manufacturer, distributor and exporter of the Monel K500 flanges, which has a wide variety of Alloy K500 Flanges such as Monel K500 Socket Weld Flanges, Monel K500 Blind Flanges, Alloy K500 Slip On Flanges, Weld Neck, Threaded, Lap Joint and Ring Type Joint.Monel K500 Pipe Flanges are in compliance with ASTM B564 / ASME SB564 and come in UNS N05500.Although Monel K500 is corrosion resistant like Monel 400 Flanges and Monel Flanges, it is much stronger and harder when it comes to tensile strength because of the incorporation of aluminium and titanium materials.

These flanges have a virtual nonmagnetism, and are able to sustain temperatures to as low as -150degF and are suited to sour well, oil and gas, and marine applications.Alloy K500 Flanges are the best priced flanges in the market today.

Contact us to buy Monel Products

Check price of Monel 400 Flanges & Monel Flanges in India

Weight Calculator

Specification Chart of Monel K-500 Flanges

Specification	Details
Grade	Monel K500 / UNS N05500
Standards	ASTM B564, ASME SB564
Class / Pressure Rating	150, 300, 600, 900, 1500, 2500, PN6, PN10, PN16, PN25, PN40, PN64
Form	Blind, Slip On (SORF), Weld Neck (WNRF), Socket Weld, Threaded, Lap Joint, RTJ, Spectacle Blind, Spacer Ring, Nipo Flange, Plate Flange, Forged Flange, Orifice Flange
Dimensions Standard	ANSI / ASME B16.5, B16.47 Series A & B, B16.48, BS 4504, BS 10, DIN, EN 1092-1, MSS SP-44
Size Range	1/2" NB to 60" NB
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Dimensions Chart of Class 2500 Nickel K500 Pipe Flange

Class 2500 Monel K500 Pipe Flange Dimensions (ASME B16.5)

Nominal Size	OD	T	RF Dia	Bolt Holes	Hole Dia	Bolt Circle	Hub Base	Hub Top	SO LTH	WN LTH	WN Bore
1/2"	5.25	1.19	1.38	4	0.88	3.50	1.69	0.84	1.56	2.88	*
3/4"	5.50	1.25	1.69	4	0.88	3.75	2.00	1.05	1.69	3.12	*
1"	6.25	1.38	2.00	4	1.00	4.25	2.25	1.32	1.88	3.50	*
1 1/4"	7.25	1.50	2.50	4	1.12	5.13	2.88	1.66	2.06	3.75	*
1 1/2"	8.00	1.75	2.88	4	1.25	5.75	3.12	1.90	2.38	4.38	*
2"	9.25	2.00	3.63	8	1.12	6.75	3.75	2.38	2.75	5.00	*
2 1/2"	10.50	2.25	4.13	8	1.25	7.75	4.50	2.88	3.12	5.62	*
3"	12.00	2.62	5.00	8	1.38	9.00	5.25	3.50	–	6.62	*
4"	14.00	3.00	6.19	8	1.63	10.75	6.50	4.50	–	7.50	*
5"	16.50	3.62	7.31	8	1.88	12.75	8.00	5.56	–	9.00	*
6"	19.00	4.25	8.50	8	2.12	14.50	9.25	6.63	–	10.75	*
8"	21.75	5.00	10.63	12	2.12	17.25	12.00	8.63	–	12.50	*
10"	26.50	6.50	12.75	12	2.63	21.25	14.75	10.75	–	16.50	*
12"	30.00	7.25	15.00	12	2.88	24.38	17.38	12.75	–	18.25	*

Dimensions in inches.

Different Types of Monel Alloy K500 Flanges

Monel K500 Blind Flange
Monel K500 Slip On Flange (SORF)
Monel K500 Weld Neck Flange (WNRF)
Monel K500 Socket Weld Flange
Monel K500 Threaded Flange
Monel K500 Lap Joint Flange
Monel K500 Spectacle Blind Flange
Monel K500 Spacer Ring / Spades
Monel K500 Nipo Flange / Nipoflange
Monel K500 Long Weld Neck Flange
Monel K500 Plate Flange
Monel K500 Forged Flange

Monel K500 Ring Type Joint (RTJ) Flange
Monel K500 Tongue & Groove Flange
Monel K500 Male & Female Flange
Monel K500 Reducing Flange
Monel K500 Orifice Flange
Monel K500 Weldoflange
Monel K500 Integral Flange
Monel K500 Screwed Flange
Monel K500 Raised Face (RF) Flange
Monel K500 Flat Face (FF) Flange
Monel K500 PN10 / PN16 / PN40 Flanges
Monel K500 Class 150 / 300 / 600 / 900 / 1500 / 2500 Flanges

Standard Specification of Monel K-500 Flange

Specification	Details
Material Grade	Nickel Alloy K500 / Monel 2.4375
UNS Number	N05500
Werkstoff Nr.	2.4375
Specification	ASME SB-564
Manufacturing Standard	ASTM B564 / ASME SB564
Pressure Ratings	Class 150, 300, 600, 900, 1500, 2500 / PN6 – PN40
Size Range	½" NB – 60" NB
Face Type	RF, FF, RTJ

Most Used Types of Monel 2.4375 Flanges

Also available: Alloy K500 Weld Neck (WNRF) Flange, Monel K500 Lap Joint Flange, Monel K500 Orifice Flange

Equivalent Grades of Monel 2.4375 Flange

Standard	Werkstoff Nr.	UNS
Monel K500	2.4375	N05500

Mechanical Behaviour of Alloy Monel K500 Flange

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2% Offset)	Elongation
Monel K500	8.44 g/cm³	1350°C (2460°F)	160,000 psi (1100 MPa)	115,000 psi (790 MPa)	20%

Chemical Composition of Alloy K500 Flange

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel K500	0.25% max	1.5% max	0.5% max	0.010% max	27.00 – 33.00%	0.5 – 2%	63.00% min

Weight of 65mm (2 1/2") Monel K500 UNS N05500 Flange

AS 4087 Flanges

Class	Diameter	Bolt Circle	No. of Bolts	Bolt Size	Bolt Hole Dia
PN14	165	127	4	M16	18
PN16	165	127	4	M16	18
PN21	185	146	8	M16	18
PN35	185	146	8	M16	18

AS 2129 Flanges

Class	Diameter	Bolt Circle	No. of Bolts	Bolt Size	Bolt Hole Dia
Table C	165	127	4	16	18
Table D	165	127	4	16	18
Table E	165	127	4	16	18
Table F	185	146	8	16	18
Table H	185	146	8	16	18
Table J	185	146	8	19	22

ANSI B16.5 Flanges

Class	Diameter	Bolt Circle	No. of Bolts	Bolt Size	Bolt Hole Dia
150	178	140	4	16	19
300	191	149	8	19	22
600	191	149	8	19	22
900	244	191	8	22	25
1500	244	191	8	25	29

ISO 7005 (DIN) Flanges

Class	Diameter	Bolt Circle	No. of Bolts	Bolt Size	Bolt Hole Dia
PN6	160	130	4	M12	14
PN10	185	145	4	M16	18
PN16	185	145	4	M16	18
PN20	180	139.5	4	M16	18
PN25	185	145	8	M16	18
PN40	185	145	8	M16	18

Monel K500 Flanges – Price List

Prices vary based on size, type, pressure class, and quantity. Please contact Solitaire Overseas for the latest price list.

Product	Size	Grade / UNS	Price
Monel K500 Flanges	1/2" – 48"NB	As Per Requirement	Request a Quote
Monel K500 Flanges	Custom Size	As Per Requirement	Request a Quote

Application Industries of Monel K500 Pipe Flanges

Industry	Application
Oil & Gas	Sour well service, offshore platforms, subsea equipment
Marine	Seawater handling, propeller shafts, pump components
Chemical Processing	Handling hydrofluoric acid, chlorinated solvents
Aerospace & Defence	Aircraft components, missile parts
Power Generation	Nuclear and thermal power plant piping
Desalination Plants	Brine handling and seawater processing
Petrochemical	Refineries, pressure vessels, heat exchangers

Why Choose Solitaire Overseas?

Trusted manufacturer, supplier, and exporter with global reach
Mill test certificates and third-party inspection available
Strict quality control as per ASTM, ASME, and ISO standards
Competitive pricing with prompt delivery worldwide
Wide stock availability for urgent and bulk requirements
Custom sizes, grades, and specifications on request
Experienced team ensuring dimensional accuracy and traceability

Frequently Asked Questions (FAQs)

What is the difference between Monel K500 and Monel 400 Flanges?

Aluminium and titanium additions increase the tensile strength of Monel K500 by approximately two times and its yield strength by three times those of Monel 400.The two grades have similar corrosion resistance.K500 is favored in applications that have high strength, sour-gas and marine applications that need higher hardness and mechanical performance.

What standard governs Monel K500 Flanges?

Monel K500 Flanges are also produced as per ASTM B564 and ASME SB564 in UNS N05500.Dimensions are based on ANSI B16.5 and B16.47.They come in Class 150 to 2500 and pressure ratings of PN6 to PN64. DIN equivalent is Werkstoff 2.4375.

Are Monel K500 Flanges magnetic?

The Monel K500 Flanges are practically nonmagnetic and sparkless up to minus 150 degrees F.This renders them suitable in sensitive offshore, naval as well as electronic environment where magnetic properties must be minimised in matters of operation and safety.

What industries commonly use Monel K500 Pipe Flanges?

Monel K500 Pipe Flanges are common in oil and gas, marine, chemical processing, aerospace, desalination and petrochemical.They can work in sour wells, seawater systems and high-pressure environments with hydrofluoric acid and salts as well as alkaline media.

What surface treatments are applied to Alloy K500 Flanges?

The most widespread surface finishes are pickling and electropolishing.Electropolishing is done to remove the outer part to give it a smooth finish.Pickling eliminates the magnetic surface film which may be generated during the processing process, and returns the material to its nonmagnetic state to be used in the end application in critical service conditions.

Get a Quote for Monel K500 Flanges

Looking for pricing on ASTM B564 Monel K500 Flanges? Send us your type, size, pressure class, and quantity—we'll get back with a quote and lead time within 24 hours. Stock available for quick dispatch.
