Monel 400 UNS N04400 Forged Fittings Manufacturers & Supplier

Name: Monel 400 UNS N04400 Forged Fittings Manufacturers & Supplier
Brand: Solitaire Overseas

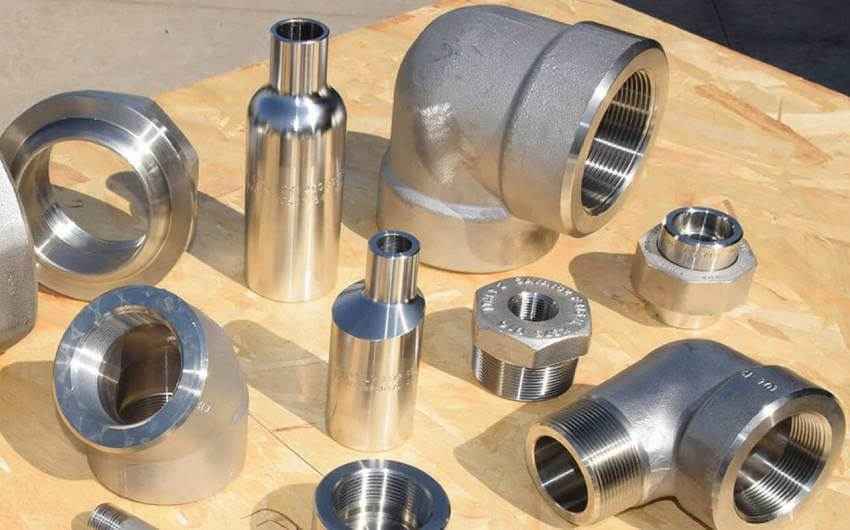

Monel 400 Forged Fittings Supplier, Manufacturer & Exporter

Solitaire Overseas is a leading manufacturer, supplier, and exporter of the Monel 400 Forged Fittings (UNS N04400 / WNR 2.4360), which is in compliance with ASTM B564 and ASME B16.11. We also have an extensive selection of Monel 400 Fittings, monel alloy 400 socket weld fittings, threaded fittings, couplings, unions and end caps to high-integrity small-bore piping.

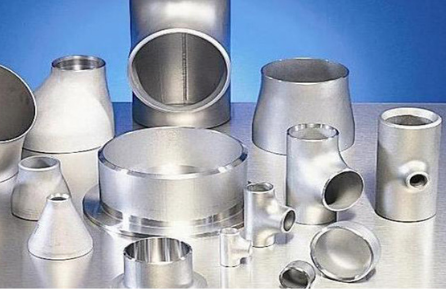

Monel 400 is a nickel-copper alloy that is famous due to its high level of corrosion resistance against seawater, hydrofluoric acid, hydrochloric acid, alkalis as well as reducing acids. Nickel alloys 400 fittings are forged in both hot and cold and can only be hardened by cold working thus rendering them very ductile and highly conducting thermally. Manufactured in pressure Classes 2000, 3000, 6000 and 9000 ranging in size between 1/8 inch and 4 inch, with NPT, BSP, NPTF, and BSPT threads. Solitaire overseas offers MTC in compliance with EN 10204 3.1/3.2, PMI, hydrostatic test and radiography by request. Browse our Monel 400 Buttweld Fittings and Monel 400 Pipe Fittings for a complete piping solution.

Why Choose Solitaire Overseas for Nickel Alloy 400 Forged Fittings?

ASTM B564 / ASME SB564 and ASME B16.11 certified manufacturer
ISO 9001:2015 quality management; MTC per EN 10204 3.1/3.2 with every lot
Available in Class 2000, 3000, 6000, and 9000 pressure ratings
Full range: SW Elbow, Tee, Cross, Coupling, Half Coupling, Union, End Cap, Bushing, Plug
Threads: NPT, BSP, NPTF, BSPT — all standard thread forms available
PMI testing, hardness testing, and third-party inspection on request
Stock and indent supply for fast delivery on spot and project orders
Competitive Monel 400 Forged Fittings price; exported to 45+ countries

Contact us to buy Monel Products

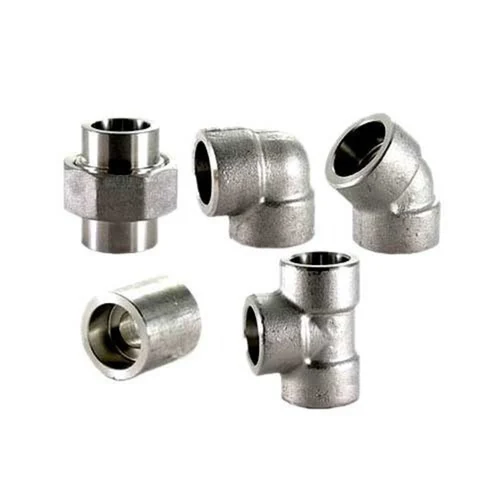

Check price of Monel 400 Fittings & Monel 400 Buttweld Fittings in India

Weight Calculator

Nickel Alloy 400 Forged Fittings Specifications

Property	Details
Standard	ASTM B564 / ASME SB564
Grade / UNS	Monel 400 / UNS N04400 / WNR 2.4360
Manufacturing Standard	ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799
Size Range	1/8" to 4" (Socket Weld and Threaded)
Pressure Class	Class 2000, 3000, 6000, 9000
Types Available	SW Elbow, Tee, Cross, Coupling, Half Coupling, Union, End Cap, Reducer Insert, Bushing, Plug, Nipple, Swage Nipple
Threads	NPT, BSP, NPTF, BSPT
Tensile Strength	517–620 MPa
Yield Strength	172–345 MPa

Equivalent Grades of Monel 400 Forged Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe

Monel 400 Forged Fittings – Chemical Properties

Grade	C (Max)	Mn (Max)	Si (Max)	S (Max)	Cu (%)	Fe (Max)	Ni (Min)
400	0.30	2.00	0.50	0.024	28.00 – 34.00	2.50	63.00

Monel 400 Forged Pipe Fittings – Mechanical Properties

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2% Offset)	Elongation
400	8.8 g/cm³	1350°C (2460°F)	80,000 psi (550 MPa)	35,000 psi (240 MPa)	40%

Types Of Monel 400 Forged Fittings

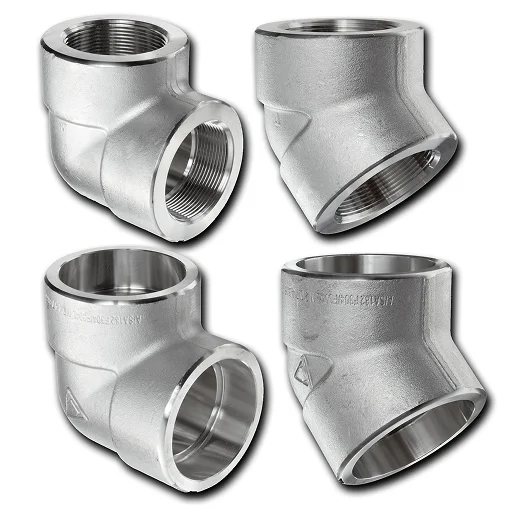

Monel 400 Forged Elbow

ASTM B564 Monel 400 Forged Elbow, UNS N04400 Forged Elbow, 2.4360 Forged Elbow, Monel 400 45° Socket Weld Elbow Exporter, Monel 400 90° Threaded Elbow Supplier, ANSI B16.11 Manufacturer in Mumbai, India.

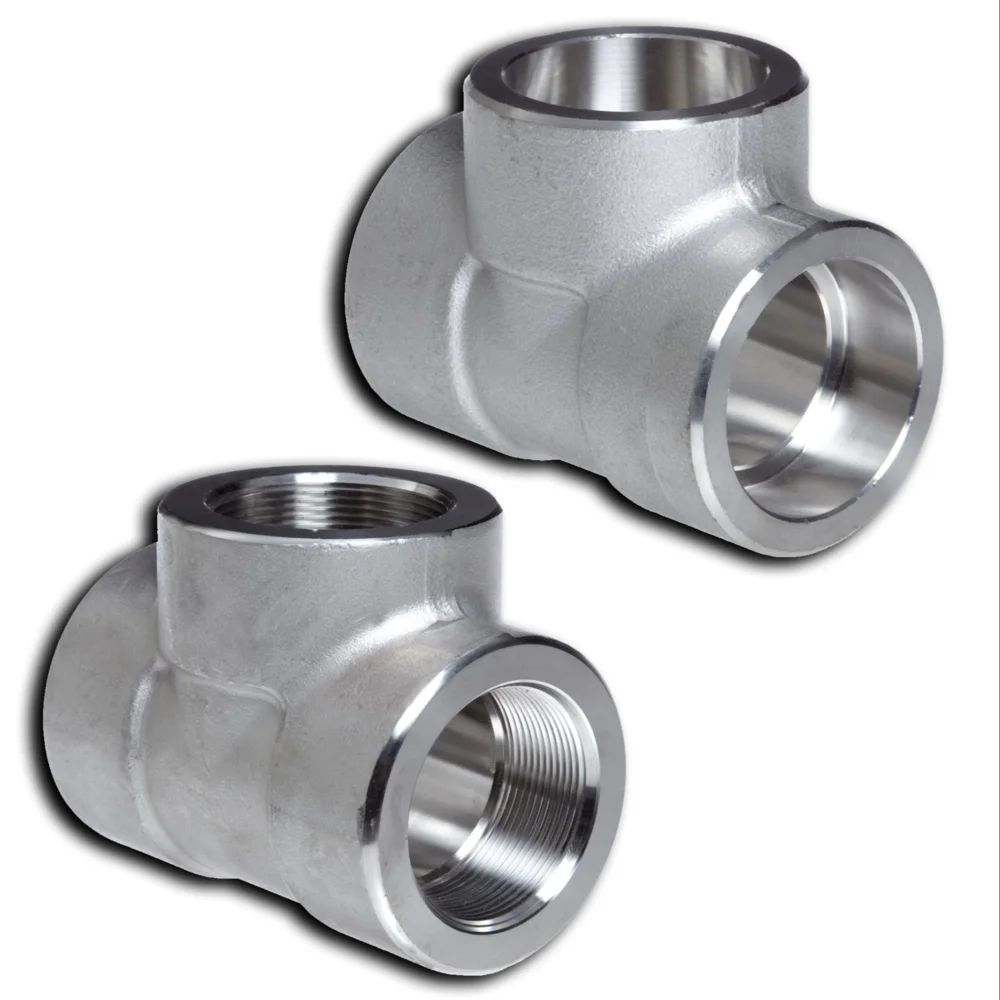

Monel 400 Forged Tee

ASTM B564 Monel 400 Forged Tee, UNS N04400 Equal Tee, 2.4360 Socket Weld Tee, Monel 400 Threaded Unequal Tee Exporter, Monel 400 Forged Pipe Tee Supplier, ANSI B16.11 Manufacturer in Mumbai, India.

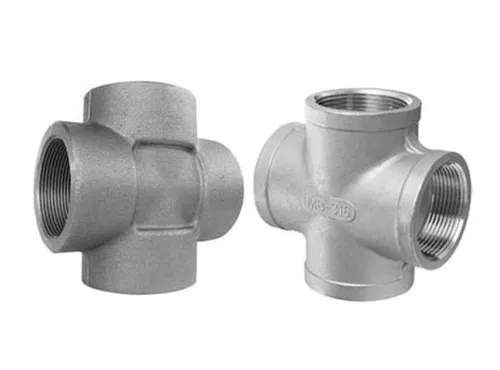

Monel 400 Forged Cross

ASTM B564 Monel 400 Forged Cross, UNS N04400 Equal Cross, 2.4360 Forged Cross, Monel 400 Socket Weld Unequal Cross Exporter, Monel 400 Threaded Pipe Cross Supplier.

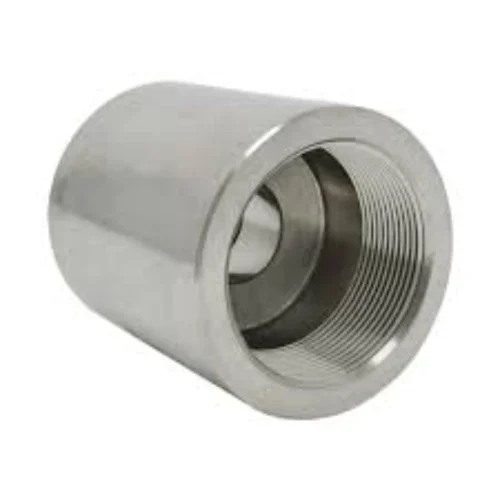

Monel 400 Forged Coupling

ASTM B564 Monel 400 Forged Coupling, UNS N04400 Coupling, 2.4360 Full Coupling, Monel 400 Half Coupling Exporter, Monel 400 Socket Weld Coupling Supplier.

Monel 400 Forged Union

ASTM B564 Monel 400 Forged Union, UNS N04400 Union, 2.4360 Union, Monel 400 Socket Weld Union Exporter, Monel 400 Threaded Forged Union Supplier.

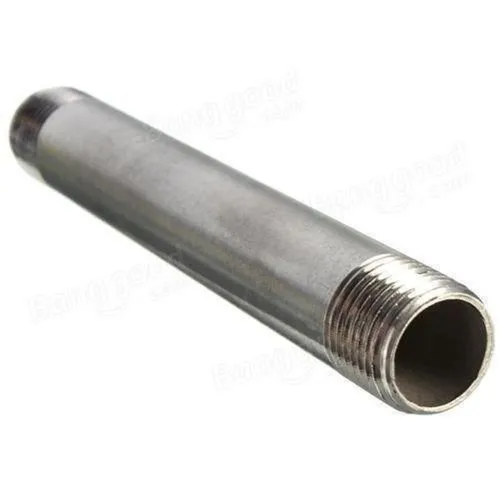

Monel 400 Forged Pipe Nipple

ASTM B564 Monel 400 Forged Pipe Nipple, UNS N04400 Forged Nipple, 2.4360 Forged Nipple, Monel 400 Swage Nipple Exporter, Monel 400 Threaded Pipe Nipple Supplier.

Monel 400 Forged Fittings – Price List (Request on Quote)

Product Type	Size Range	Price
Monel 400 SW Elbow 90° (Class 3000)	1/8" – 4"	Request on Quote
Monel 400 SW Tee (Class 3000)	1/8" – 4"	Request on Quote
Monel 400 Threaded Coupling (Class 3000)	1/8" – 4"	Request on Quote
Monel 400 SW End Cap	1/8" – 4"	Request on Quote
Monel 400 Threaded Union	1/8" – 4"	Request on Quote
Monel 400 Half Coupling (Class 6000)	1/8" – 4"	Request on Quote

Frequently Asked Questions – Monel 400 Forged Fittings

Q1: What standard governs Monel 400 Forged Fittings?

Monel 400 Forged Fittings are manufactured per ASTM B564 and ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, and BS 3799.

Q2: What pressure classes are available in Monel 400 Socket Weld Fittings?

Monel alloy 400 socket weld fittings are available in Class 2000, 3000, 6000, and 9000 pressure ratings.

Q3: Is Monel 400 magnetic?

Monel 400 (UNS N04400) is slightly magnetic at room temperature. It cannot be hardened by heat treatment — only by cold working.

Q4: What thread forms are available in Monel 400 Threaded Fittings?

NPT, BSP, NPTF, and BSPT threads are available in Monel 400 Forged Fittings from 1/8" to 4".

Q5: Can Solitaire Overseas supply Monel 400 Forged Fittings with third-party inspection?

Yes. TUV, SGS, Bureau Veritas, Intertek, and Lloyd's Register third-party inspection is available with MTC per EN 10204 3.1/3.2.

Get a Quote for Monel 400 Forged Fittings

Looking for pricing on ASTM B564 Monel 400 Forged Fittings? Send us your type, size, pressure class, and quantity—we'll get back with a quote and lead time within 24 hours. Stock available for quick dispatch.
